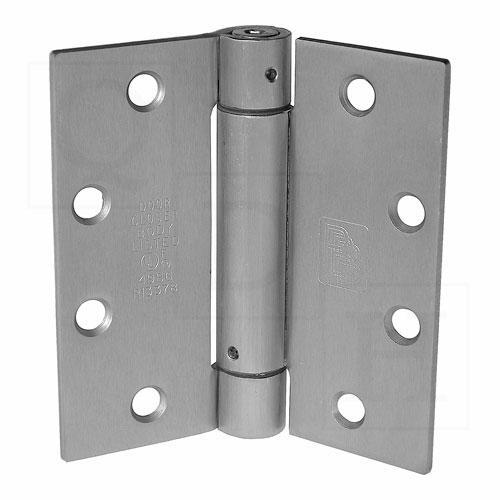

| General Product Information: |
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: |
Stainless Steel and Dull Stainless Steel Finish |
| Material Gauge: |
.134 ± .005 |
| Maximum Door Size: |
For labeled doors 3' x 7' the maximum door size is based on the limits set forth by NFPA Standard #80. Labeled doors require Ball Bearing hinges
For non-labeled doors 4'0" wide 4" x 4" Spring hinges are not recommended. For non-labeled doors over 7'6" in height, use an additional hinge for each additional 30" of height or fraction thereof
|
| Door Thickness |
FOR USE ON 1 3/4” DOOR |
| Size: |
Height: 4.50 (+.000/-.015)
Width: 4. (+.000/-.015)
|
| Standard Screw Size: |
FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
|
| Packing Information: |
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available |
| Manufacturer: |
PBB Inc. |
