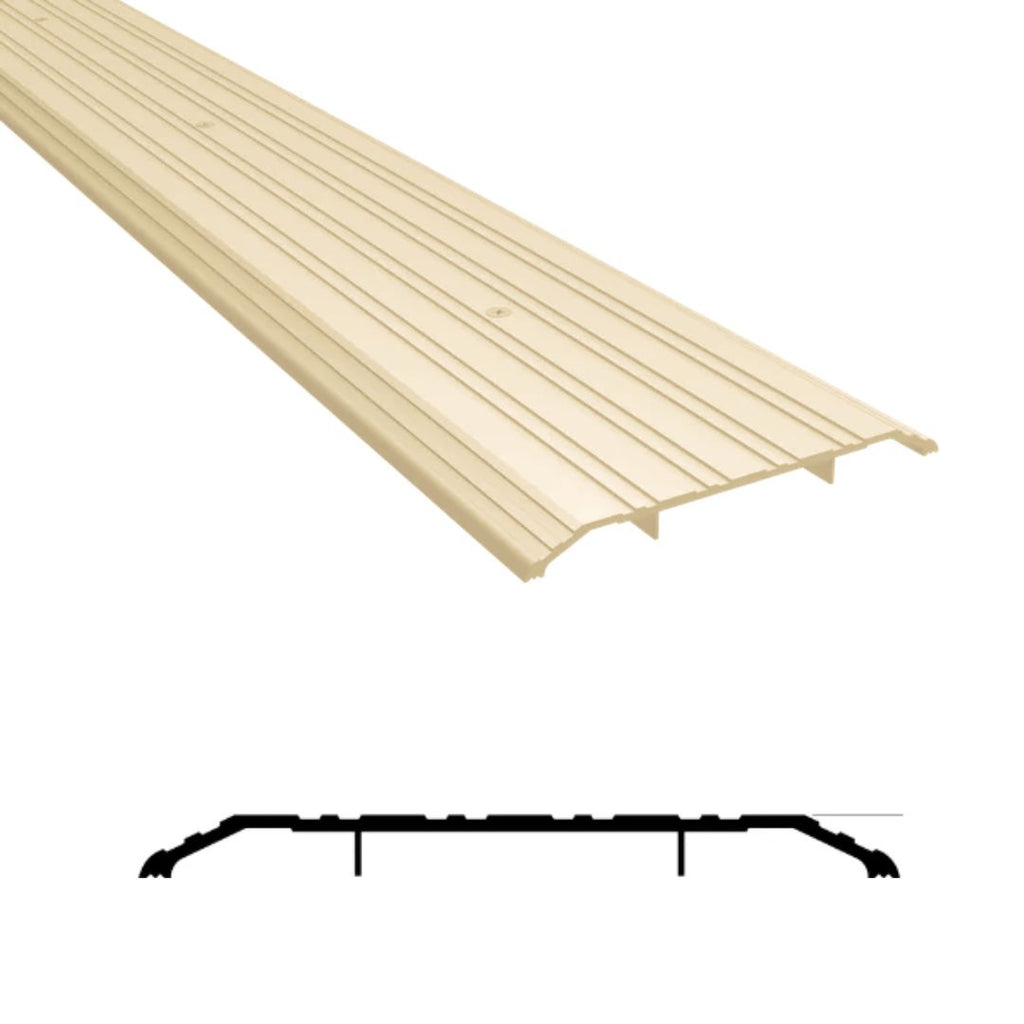

The Pemko 172B Door Saddle Thresholds have a 6" Width, 1/2" Height, in a Mill Finish Extruded Bronze, Pemko 172B Door Saddle thresholds Are ADA Compliant and come in 36", 48", 72", and 96" lengths.
Custom Order Item - No returns on this product.
Pemko 172 Door Threshold Are Idea For Both Commercial and Institutional Applications.• Overall height is no greater than ½”• A vertical rise no more than ¼” and/or change in elevation being beveled with a slope of 1:2• Does not require more than 5lbs of operating force• Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications P-F430C for high static coefficient of friction resulting in a slip resistance surface
Specifications: 172B
Available Finishes:
A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum B - Mill Bronze Brass
Width:
6” (127 mm)
Height:
1/2” (12.7 mm)
Manufacturer:
Pemko
Certifications: 172B
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
