Pemko 411APKL Automatic Door Bottom Full Mortise Black Insert Mill Finish Aluminum

PEMKOSKU: 411APKL36

Price:
Sale price$63.99
In Stock

Description

Pemko 411APKL Automatic Door Bottom Full Mortise Black Insert Mill Finish Aluminum

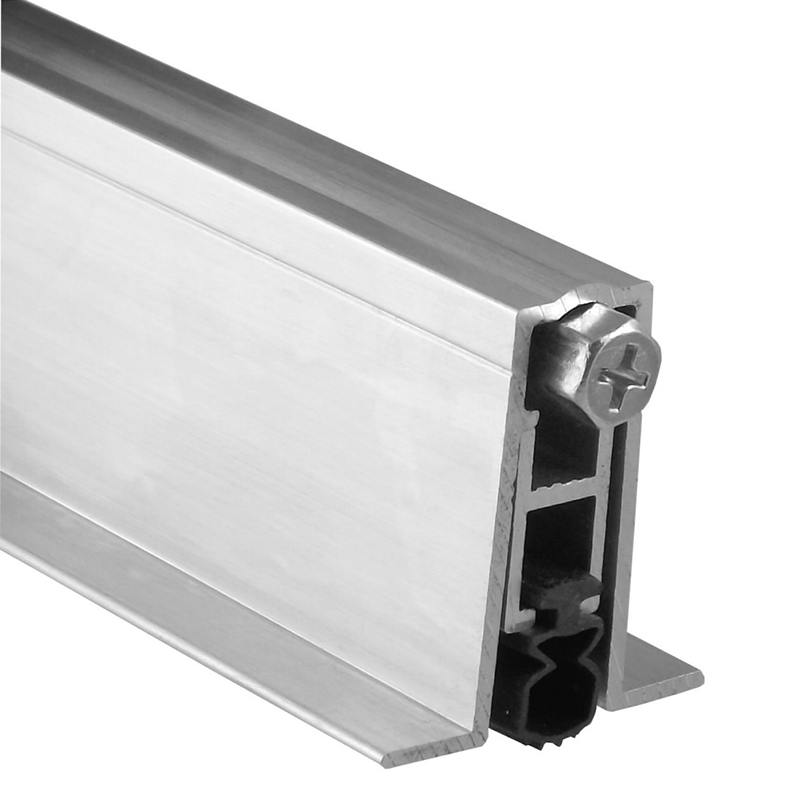

Pemko 411APKL Automatic door bottom consists of an aluminum case that surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop bar to seal down against the floor or threshold

Features

  • Smoother action positive seal mechanism. All Pemko automatic door bottoms consist of an aluminum case that surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold
  • Most models are now available with nylon brush (NB) seals. The nylon filaments conform extremely well to irregular surfaces such as carpet, stone, and grout lines
  • Especially over uneven surfaces, both PemkoPreneâ„¢ (PK) and nylon brush (NB) provide excellent seals to keep out draft, dust, moisture, insects, fumes, light, and sound
  • The line includes models which can be mounted to either wood or hollow metal doors
  • End plates are provided for all mounting applications
  • Leadline available upon request; consult Customer Service for options on profiles
  • All Pemko - automatic door bottoms are provided NET length

Specifications

Available Finishes: Mill Finish Aluminum Aluminum
Available Sizes: Available in any size ranging from 18" to 72"
Width: 9/16" (14.3 mm)
Height: 1-3/8" (34.9 mm)
Insert Type: PemkoPrene
Manufacturer: Pemko



BHMA: BHMA Certified
UL: Underwriters Laboratory 4L10
Fire Rated - UL10C - Positive Pressure
Other Certifications: Air Infiltration Tested
Sound Tested - ASTM E90
Smoke Tested - UL1784

Pemko Automatic Door Bottom 411APKL Full Mortise
