Pemko CFS85CP Full-Surface Continuous Geared Hinge Center Pivot Clear Anodized Finish - 85"
Pemko CFS85CP Full-Surface Continuous Geared Hinge Center Pivot Clear Anodized Finish, The Pemko's CFS85CP standard duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame. Also available in heavy-duty models
Features CFS85CP
Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
Standard model: 12 fasteners required for each leaf
Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread-forming
Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
Finish:
C - Clear Anodized
Length:
85"
Width:

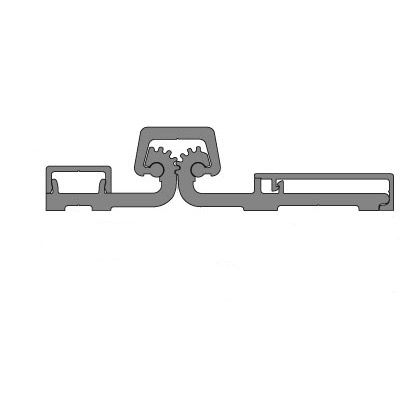

1-3/16" (30.2 mm) (frame side - leaf) 2" (50.8 mm) (door side - leaf) 3-3/16" (80.9 mm) (total width of hinge) Cap Width: 25/32" (19.8 mm)
