Description

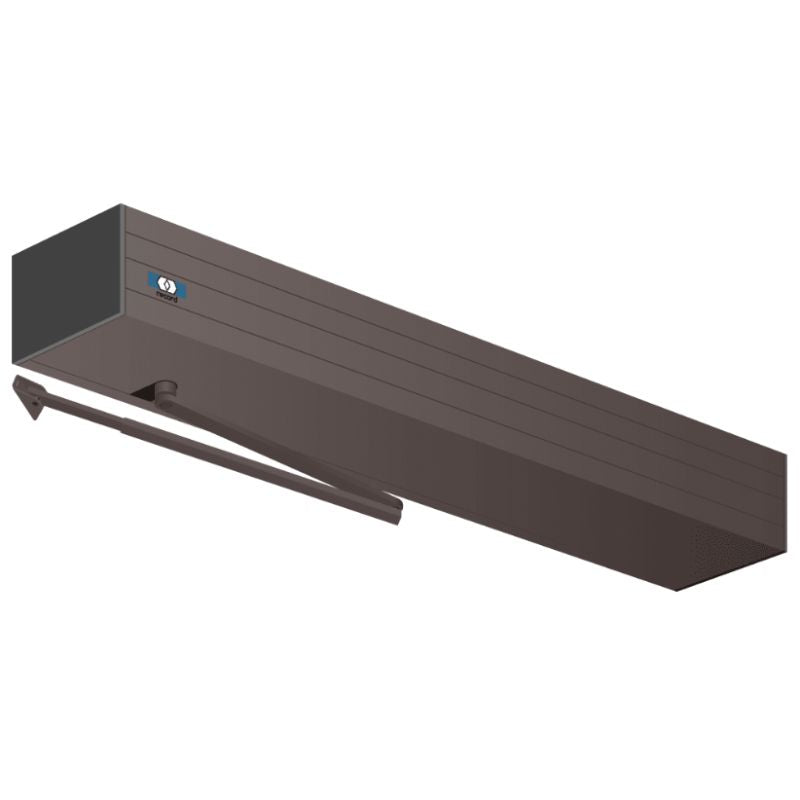

Record SS8211D2SNN-36 Heavy Duty Low Energy Auto Door Operator, 39 Inch Header, Single Door Operator, SS8200 Series SimpleSwing, Standard Arm Mounted Push Or Pull, Adjustable Arm Up To 12 Inch Push Reveal, 6 Inch Pull Reveal, Field Reversible, Max Door Weight 400 LBs, Dark Bronze
The Record SS8211D2SNN-36 is a heavy duty, low energy auto door operator with a 39 inch header. It features the SS8200 Series SimpleSwing and a standard arm mounted push or pull design. The adjustable arm can accommodate up to 12 inches for push reveal or 6 inches for pull reveal. This non-handed door operator has a maximum weight capacity of 400 LBs and is constructed with Dark Bronze.
SimpleSwing Heavy Duty Door Operators
The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.
With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.
- Header width dimensions: 4.5" x 5"
- Motor: 1/4hp
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
- ANSI/BHMA 156.19
- UL325/UL228
- Operating Conditions: -40°F and +140°F
- This operator is designed for single doors. For paired doors, please order one operator per door.
Product Specs
| Manufacturer | record-usa |
| SKU | SS8211D2SNN 36 |
| Installation | Commercial |
| Origin | Switzerland |
| Unit of Measure | EACH |
| UL Listing Type | UL325 |
| ANSI Number | A156.19 |
| BAA Qualified | No |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specs
| Type | Surface |
| Technology | Electromechanical |
| Mounting Location | Push or Pull Side |
| Mounting Style | Regular |
| Hold Open | Yes |
| Hold Open Type | Electric |
| Arm Type | Double Lever Arm, Regular |
| Hand | Field Reversible |
| Degree Swing | 120 Deg. |
| Stop | Positive Stop |
| Door Size | 36" |
| Door Weight | 254 lbs. Push, 198 lbs. Pull |
| Reveal Size | 12" |
| Voltage | 120V |
| Aux Power | 24V AC/DC @ 0.5A |
| Physically Handicapped | Yes |
| Product Type | Door Operators |
