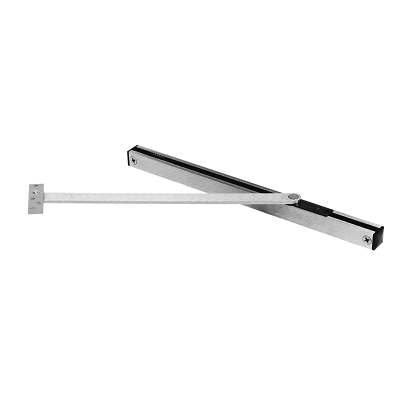

Rixson 10-326-630 Overhead Door Stop Surface Mounted, With Hold Open, Dr Width Use Butts or Pivots, 30 1/16-36 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel
All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty modelsare used for interior or low to medium-traffic doors. Heavy-duty models used for exterior or high-traffic doors or doors are subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmate products provide hold open and/or dead stop.
Features:
Single-acting doors
Non-handed
Slide track design
Recommended for medium traffic, medium-weight doors
The degree of opening is fully adjustable and can be adapted to changing needs
Heavy shock absorber spring provides compression before the dead stop
Can be ordered specifically as a stop, friction stay or hold open
Complete screw packet with thru-bolts for the door, wood, and machine screws for the frame
Torx ® screws are optional for security applications, but heavy-duty units should be considered for high-security applications
Standard architectural finishes
Durable slider cam and shock block
110 ° maximum opening
3/4" square channel
For pull, side mounting, or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
