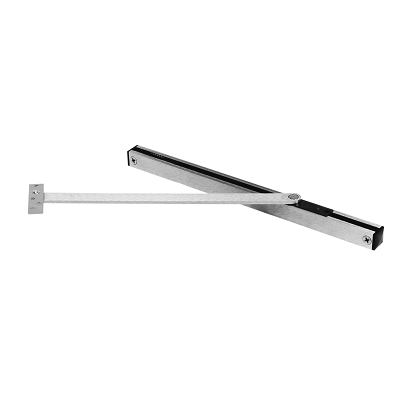

Rixson 10-336-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, 30 1/6-36 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel Finish
All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty models are used for interior or low to medium traffic doors. Heavy-duty models used for exterior or high traffic doors or doors subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmateproducts provide hold open and/or dead stop.
Single-acting doors
Non-handed
Slide track design
Recommended for medium traffic, medium weight doors
The degree of opening is fully adjustable and can be adapted to changing needs
Heavy shock absorber spring provides compression before a dead stop
Can be ordered specifically as a stop, friction stay or hold open
Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
Torx ® screws optional for security applications, but heavy-duty units should be considered for high-security applications
Standard architectural finishes
Stop function UL listed for fire door assemblies
Durable slider cam and shock block
110 ° maximum opening
3/4" square channel
For pull, side mounting or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
