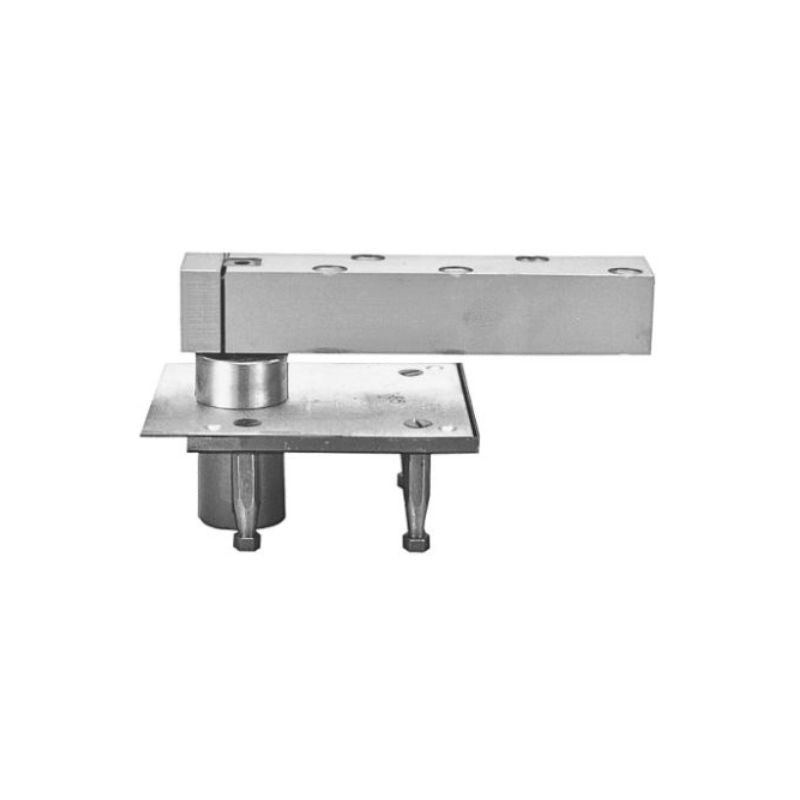

Rixson H117-3/4-LTP Center Hung Pivot for 2 Inch Doors or Greater, Less Top Pivot, Doors Weighing Up To 1000 Lbs., Non Handed
Rixson H117-3/4-LTP center hung pivot system engineered for heavy-duty commercial applications on doors 2 inches or thicker, supporting loads up to 1000 lbs. and door dimensions up to 4'0" x 8'6". Features sealed bearings for weather and debris protection, with the pivot point consistently positioned 2-3/4 inches from the door edge. Includes mortised bottom pivot and end load arm; standard top pivot H340 sold separately. Non-handed design accommodates both interior and exterior installations. Constructed from brass or bronze with wood and machine screws included. Extended spindles available in 1/2-inch increments. Backed by a 2-year limited warranty. Center hung pivots are door hanging means only. To close doors, see floor closer sections.
*For doors taller than 8'6" use top pivot 345 in lieu of 340
Application
- Exterior or Interior Doors
- Weight to 1000 lbs.
- Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)
- Non-handed
- Standard top pivot H340 sold separately
- Bottom pivot is mortised into floor
- End load arm for minimum 2" (51mm) thick doors
- Pivot point centered in thickness of door
- Additional surface applied thrust bearing
- Door must have radius on pivot edge
- Pivot point remains constant at 2-3/4 from the edge of the door
- Pivot set features sealed bearings for protection against weather and debris
- Not allowed for use on labeled doors and frames
- Furnished with wood and machine screws
- Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
