Sargent 114-US26D Hospital Latches for Push-Pull Doors, 5" Backset, No Push/Pull Trim, Satin Chrome Finish

  • SKU: 28114US26DLH

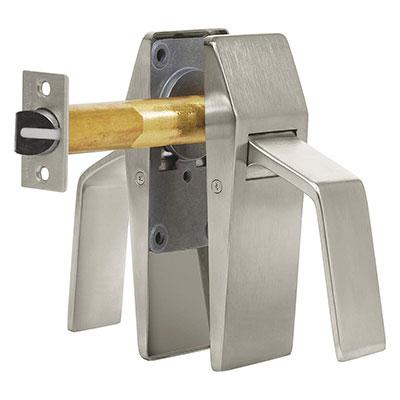

Sargent 114-US26D Hospital Latches
Sargent 114-US26D Hospital Latches
All SARGENT Products

Sargent 114-US26D Hospital Latches for Push-Pull Doors, 5" Backset, No Push/Pull Trim, Satin Chrome Finish

  • SKU: 28114US26DLH
$388.89/ea
Available (6‑8 Weeks)
6-8 Weeks Lead Time
Strike Option: 28 - 4-7/8 ANSI Curved Lipped Strike
Handing: LH - Left Hand

Sargent 114-US26D Hospital Latches for Push-Pull Doors, 5" Backset, No Push/Pull Trim, Satin Chrome Finish

No Push/Pull Stamp, Both Paddles are pointed downwards. Available in 2 3/4" or (28) 4 7/8" Strike.

Sargent 114 Hospital Push and Pull



Designed for convenience and utility, the 114 hospital latches open with a gentle pull or slight push, making them ideal for hands-free operation.

Both the 114 push-pull and 115 push-pull latches with their low profile helps eliminate any obstruction while passing through an opening. Slim tapered paddles and smartly styled escutcheons possess all the elements of tasteful, yet functional design. The chassis design makes this hospital latch constructed for both durability and ease of installation. The 114 Hospital latches are available with 2 3/4" or 4 7/8" strikes, as well as 2 3/4" or 5" backsets, These latches are handed.

Specifications

 For Doors: 1-3/4" (44mm) to 2-1/4" (57mm)
Backset: 5" (127mm) standard.
Strike:  2-3/4" (70mm) ANSI A115.2 curved lip strike #800
OR
28- 4-7/8" (124mm) ANSI curved lip strike # 808
Bolt: Brass, 1/2" (13mm) throw
Hand: Specify hand (RHR, RH, LHR or LH)
114: Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm)
Escutcheons: Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm)
UL Listed: UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List
