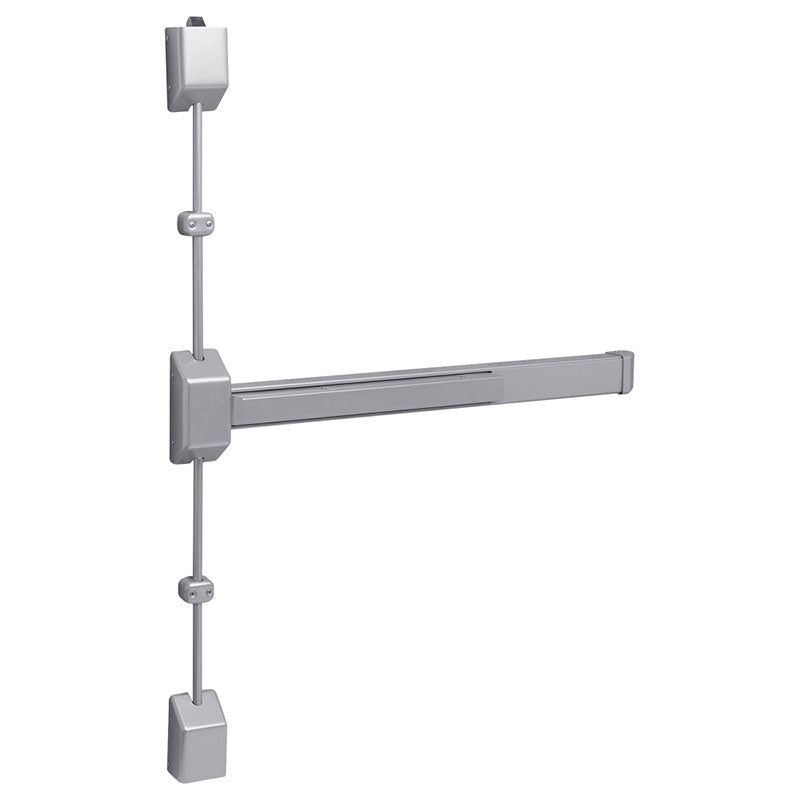

Sargent 12-3727-F-84-EN 36" Fire Rated Surface Vertical Rod Exit Device
Sargent 12-3727-F-84-EN 36" Fire Rated Surface Vertical Rod Exit Device
Sargent 12-3727-F-84-EB 36" Fire Rated Surface Vertical Rod Exit Device
Zoomed view
All SARGENT Products

Sargent 12-3727-F-84 36" Fire Rated Surface Vertical Rod Exit Device, Exit Only, Multi-Function, Less Dogging, Non-Handed, 33"-36" Dr Width, 84" Dr Ht

  • SKU: 123727F84EB
  • ✓
    Available (1 Week)
    1 Week Lead Time
Your Price
$945.80/ea
Finish: EN Aluminum Enamel (689)

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-3727-F-84 36" Fire Rated S...
Quantity
–
+
$945.80
Sargent 28 Series Trims for 30 Series...
Quantity
–
+
From $226.64
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
$427.79
Total
The Sargent 12-3727-F-84 is a 36" Fire Rated Surface Vertical Rod Exit Device that is Exit Only when just a Bar but can be Multi-Function when paired with Sargent 28 Series Trims, is Less Dogging, is for use with 1 3/4 thick doors, with 33"-36" door widths and 84" door height with a 41" standard AFF. The Sargent 12-3727-F-84 Is Non-Handed and its Six Functions are Determined By The Function Of The Trim.


Multi-Function Device: Trims below decide the function of the device;
Lever Trims:
  • 28-C-LL Classroom - Key in lever locks or unlocks lever.
  • 28-K-LL Night Latch - Key in Lever Retracts latchbolt.
  • 28-N-LL Night Latch - Lever operates only when key is in cylinder and turned.
  • 28-D-LL Dummy - Lever Rigid at all times & no outside trim
  • 28-L-LL Passage - Latchbolt operated by lever. (No Cylinder)
Knob Trims:
  • 28-C-OB Classroom - Key in knob locks or unlocks knob.
  • 28-K-OB Night Latch - Key in knob retracts latchbolt.
  • 28-L-OB Passage - Latchbolts operated by knob. (No Cylinder)
 Pull and Plate Trims:
  • 814-HTB Night Latch -Outside by pull and key. (3828 only)
  • 810-GTB Exit Only with Pull - Outside pull when push bar is locked down.
  • 802-GTB Exit Only - Black plate to cover 161 cutout.

    Sargent 3727 Series SVR Exit Devices

    A rugged exit device in surface vertical rod and rim designs.
    • Outside Trim: 28 series lever and rose trims, GTB Pulls and Plates, OB knob trims and thumb piece trims
    • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
    • Cover: steel
    • Chassis: Nonferrous alloy
    • Rail Assembly: Roll-formed steel
    • Hand: Reversible. The device is packed with standard LHRB
    • Latchbolt: Brass
    • Strikes: 646 Top Strike (Panic & fire), 655 Bottom Strike (fire), 624 Bottom Strike (Panic)
    • Dogging Feature: Allen-type key furnished standard (Non-Fire Rated Devices only)



      Manufacturer Sargent
      SKU 12-3727F-84
      Unit of Measure Each
      Finish 689/US28 or 690/US20
      Finish Description Aluminum Painted or Dark Bronze Painted

      Physical Appearance Wide Stile Pushpad
      Device Type Surface Vertical Rod
      Mechanical Function Exit Only
      Device Length 36"
      Hand Non-Handed
      Dogging Options Less Dogging
      Includes Trim No
      Trim Type Less trim
      Includes Cylinder(s) No
      Cylinder Type Non-Keyed
      Door Width 33" to 36"
      Door Height 84"
      Fire Rated Yes
      Reversible Yes
      Product Type Surface Vertical Rod Exit Devices
