Sargent 12-8510-G Fire Rated Narrow Stile Rim Exit Device, Exit Only, 43-48 In Door, Field Reversible

  • SKU: 128510GUS32D
$1,471.51/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-8510-G Fire Rated Narrow S...
Quantity
–
+
From $1,471.51
Sargent 710-ETL Exit Device, Dummy Le...
Quantity
–
+
$533.03
Sargent M56A-G Electric Latch Retract...
Quantity
–
+
$578.61
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $384.60
Total

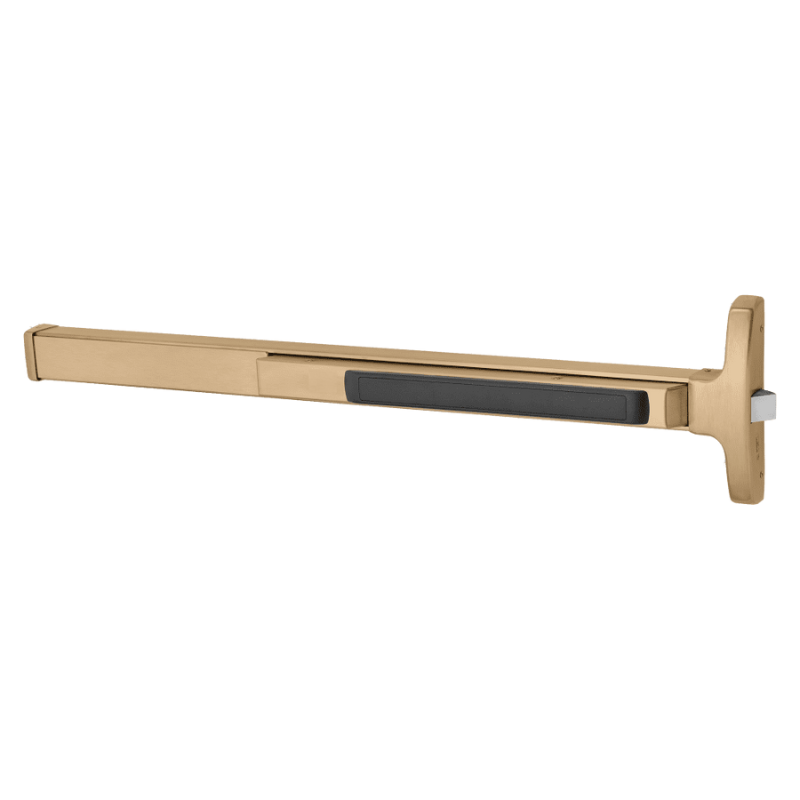

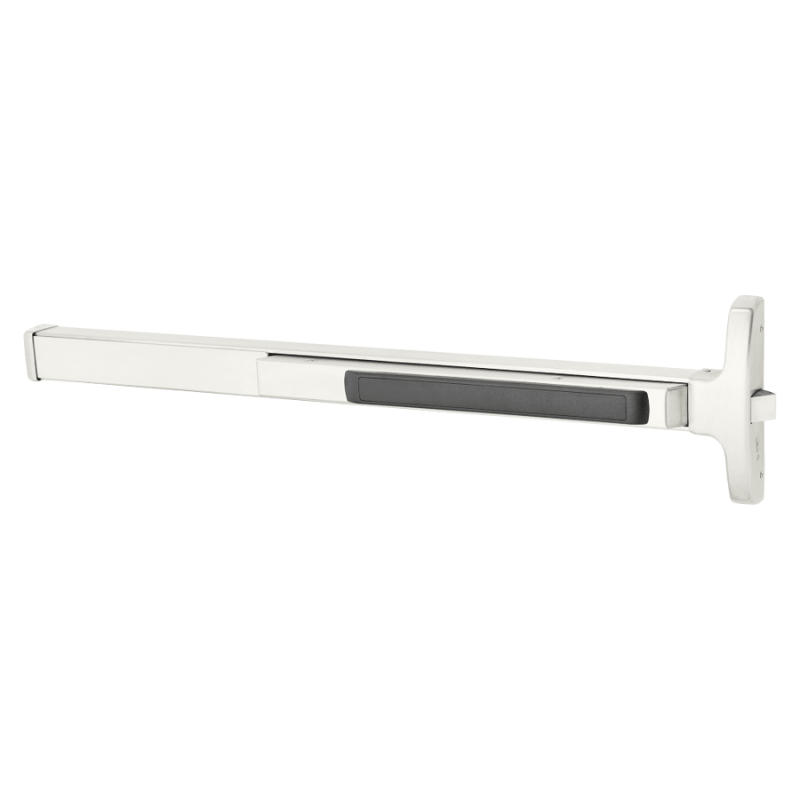

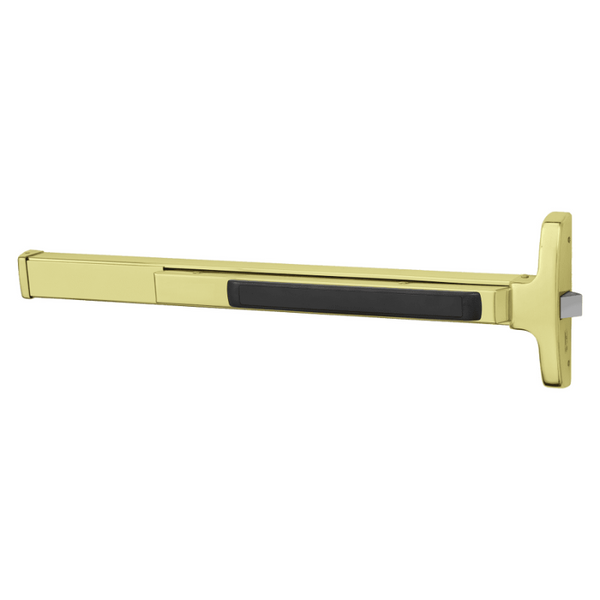

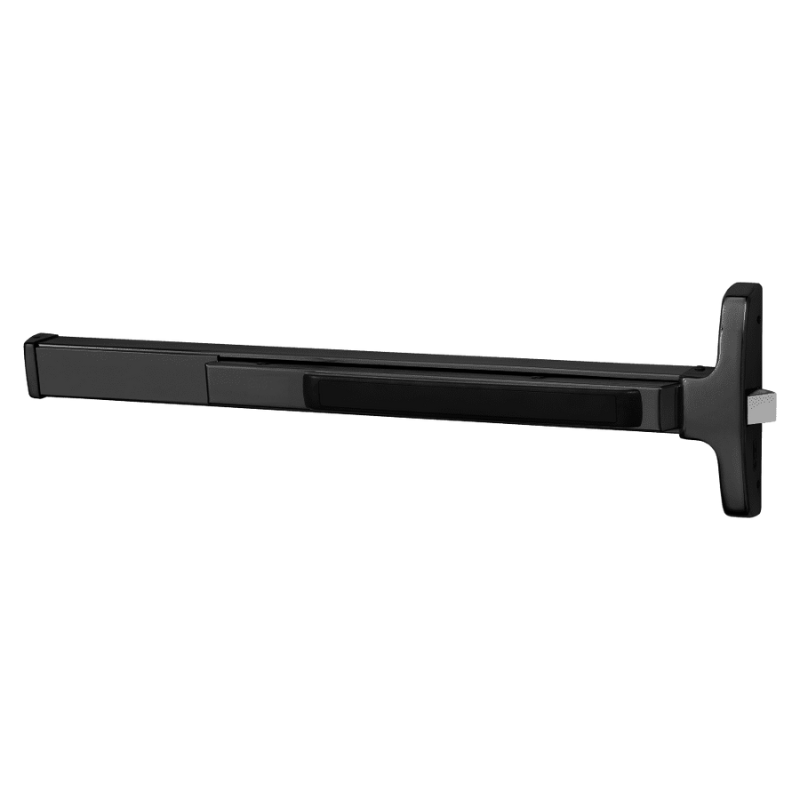

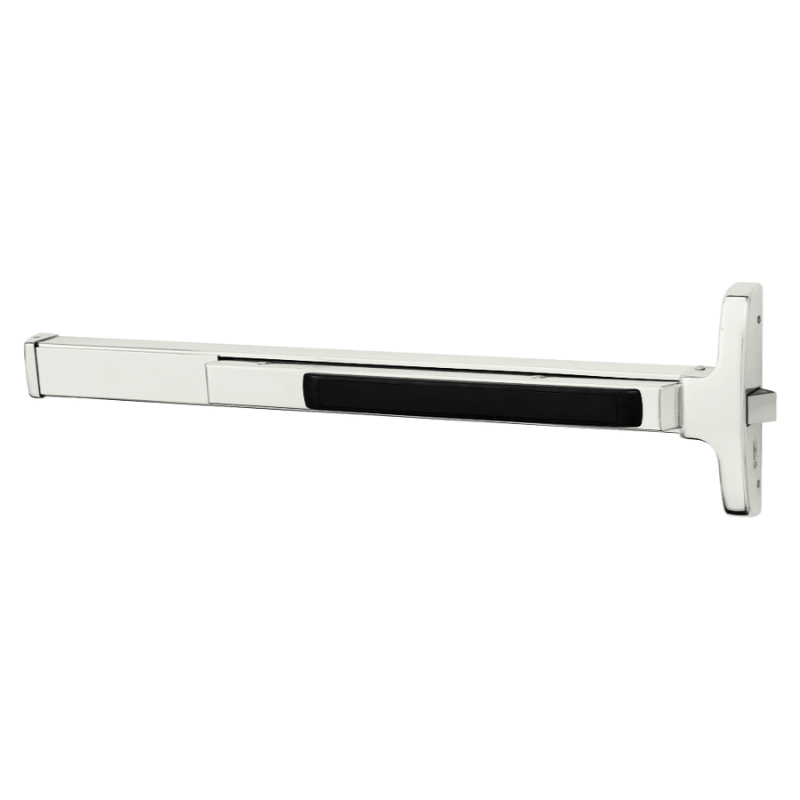

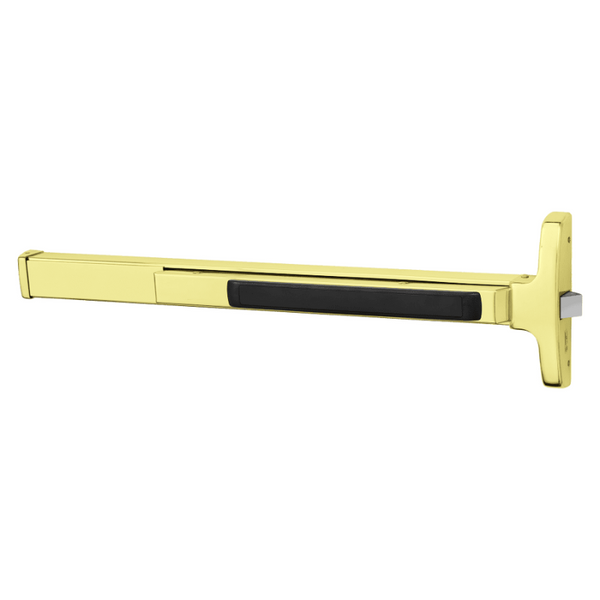

Sargent 12-8510-G Fire Rated Narrow Stile Rim Exit Device, Exit Only, 43-48 In Door, Less Dogging, Grade 1, Field Reversible

The Sargent 12-8510-G is a Grade 1 fire-rated narrow stile rim exit device designed for exit-only applications on doors measuring 43 to 48 inches. It features a field-reversible design and comes without dogging, ensuring reliable security and compliance with fire safety standards.

  • Designed for narrow stile applicationsĀ (e.g., aluminum frame full glass doors)
  • Single and double doors with mullion
  • Single point rim latching device
  • Quiet operation and solid security
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) and UL305 (Panic) listed
  • Fire rated
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No

Ā

Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Exit Only
Device Length 48"
Includes Trim No
Minimum Stile Size 2"
Door Material Aluminum
Door Width 43 In. to 48 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Rim Exit Devices
