Sargent 12-8513-F-ETL Fire Rated Narrow Stile Rim Exit Device, Classroom Function Lever, 33"-36" Dr Width

SKU: 128513FETLUS32DLHR

Sargent 12-8513-F-ETL Fire Rated Narrow Stile Rim Exit Device, Classroom Function Lever, 33"-36" Dr Width

All SARGENT Products

Buy Complete Door Hardware Set

Sargent 12-8513-F-ETL Fire Rated Narr...

Quantity

–

+

From $1,972.23

Sargent 351-UO-TB-EN Door Closer Powerglide Universal Arm Select Finish

Sargent 351-UO-TB Powerglide Surface ...

Quantity

–

+

From $372.33

Total

Description
Product Specs
Technical Specs
Document Center
Handing Chart

Description

Sargent 12-8513-F-ETL Fire Rated Narrow Stile Rim Exit Device, L Lever, Key Locks or Unlocks Lever, 33-36 In Door, No Dogging, Grade 1

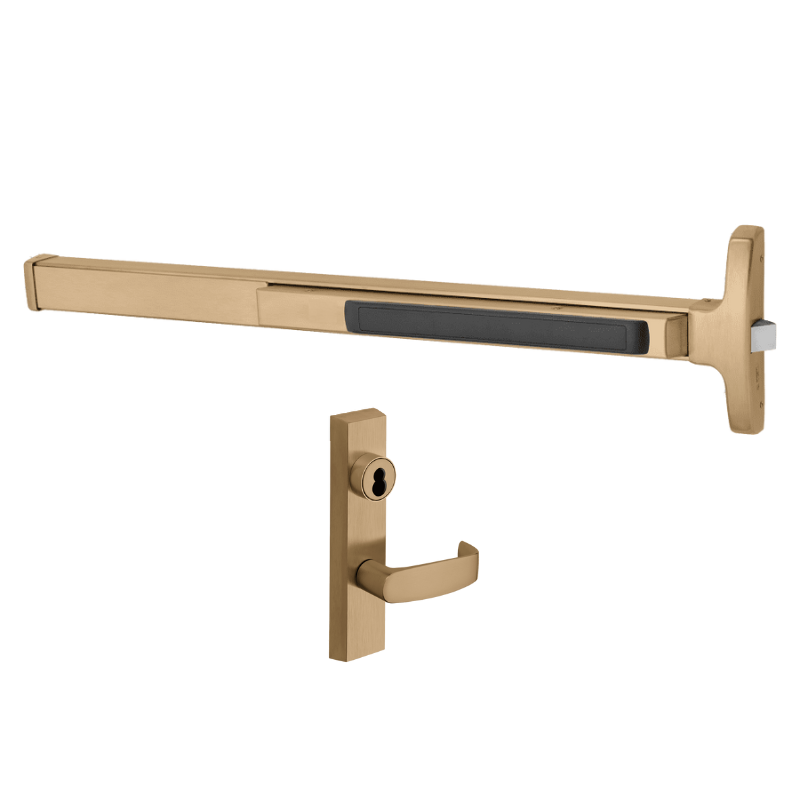

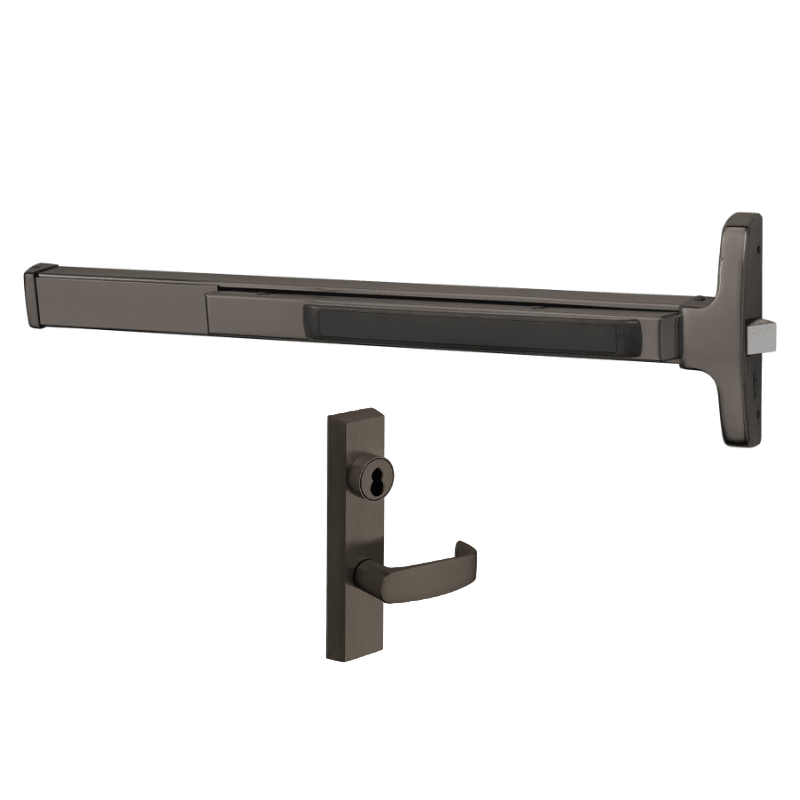

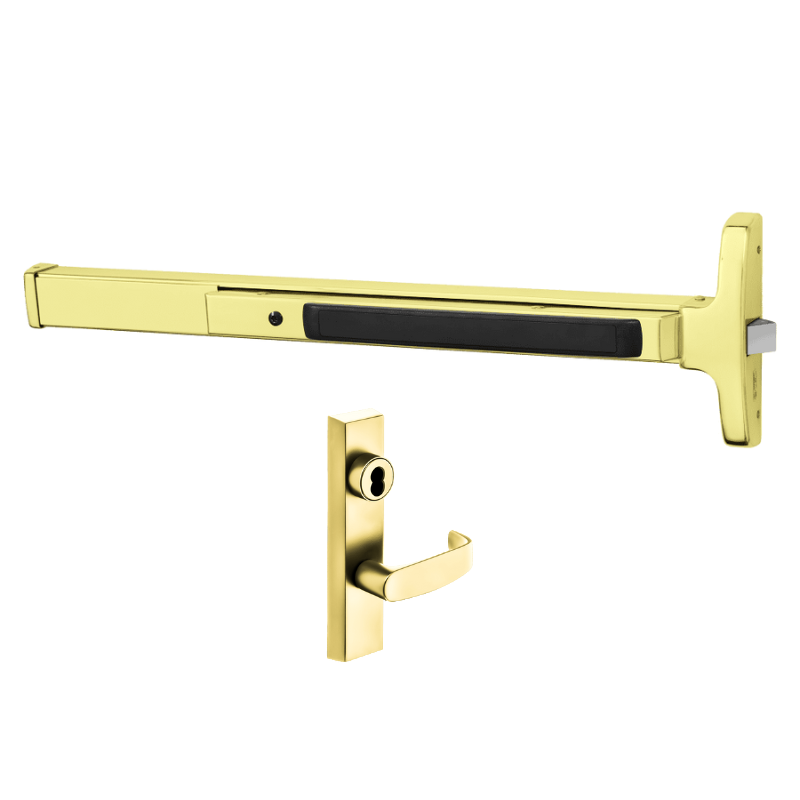

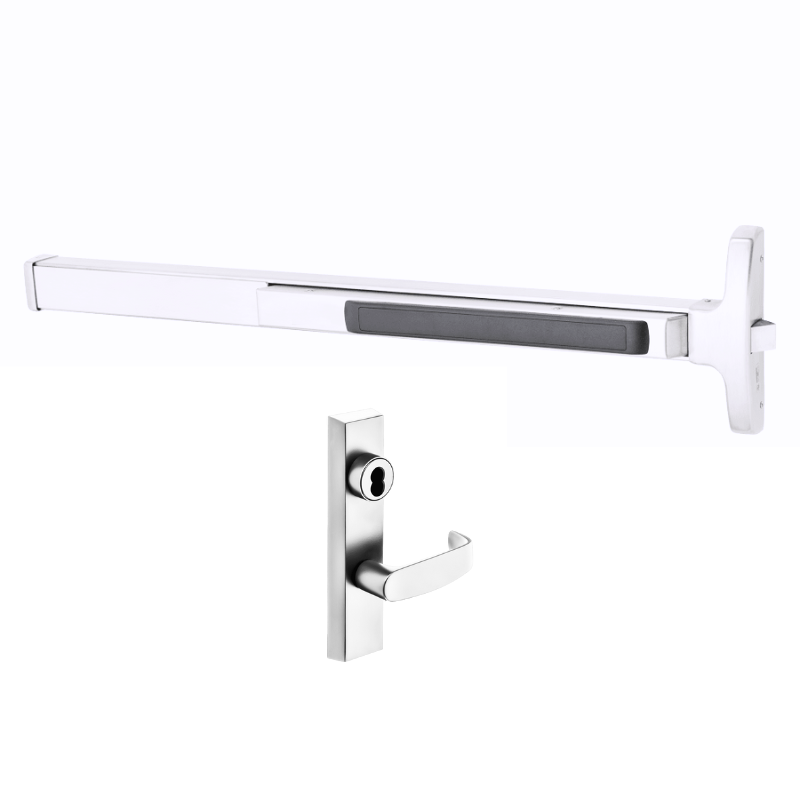

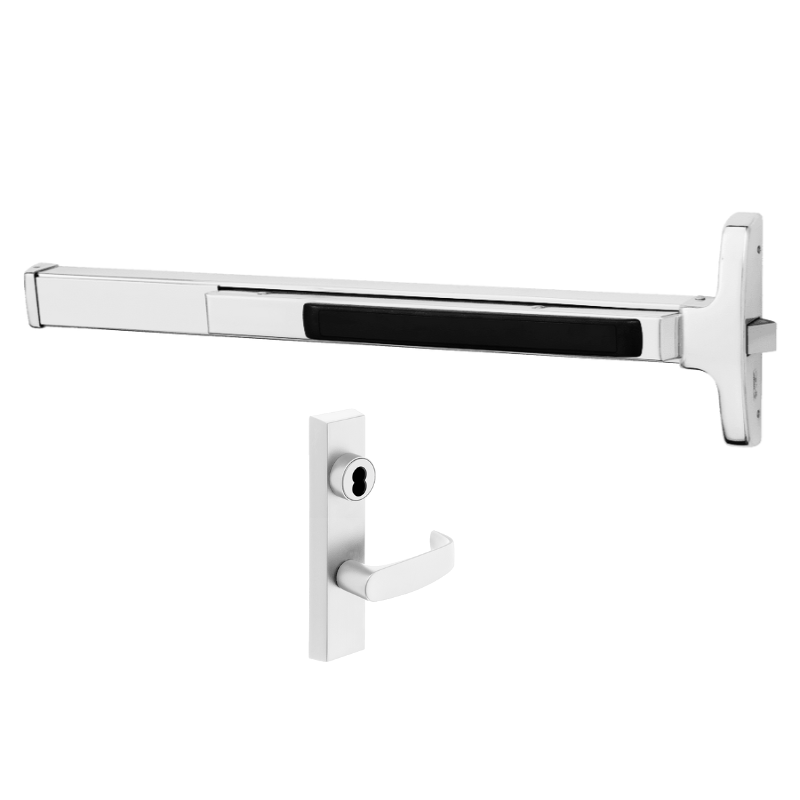

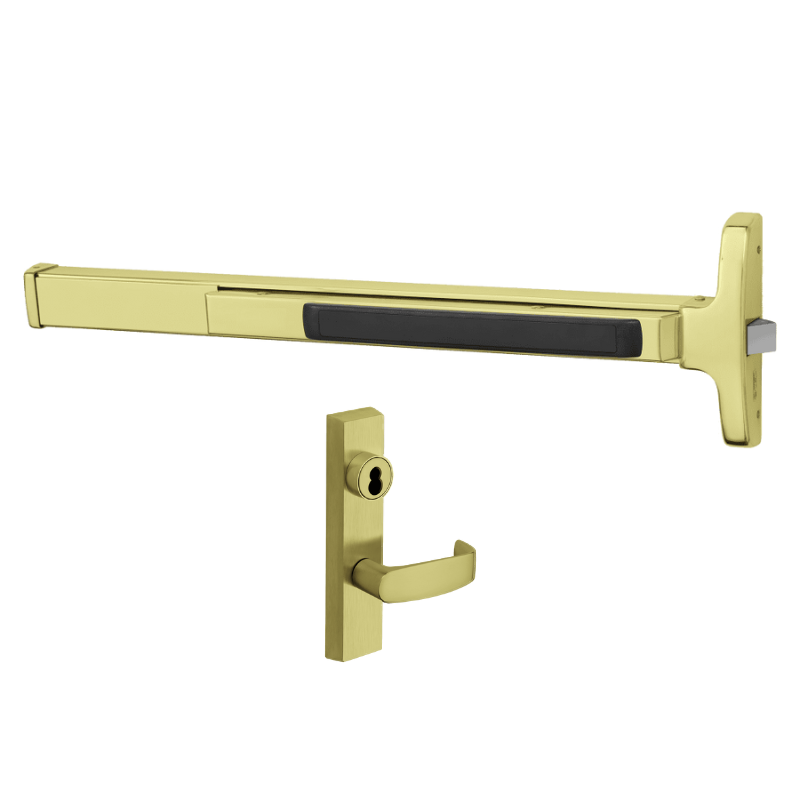

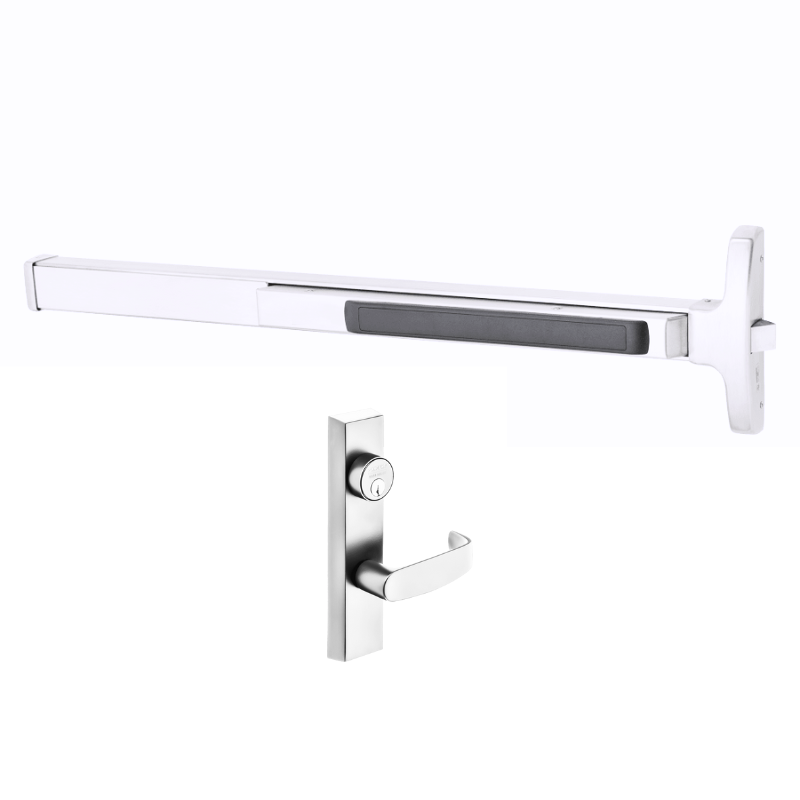

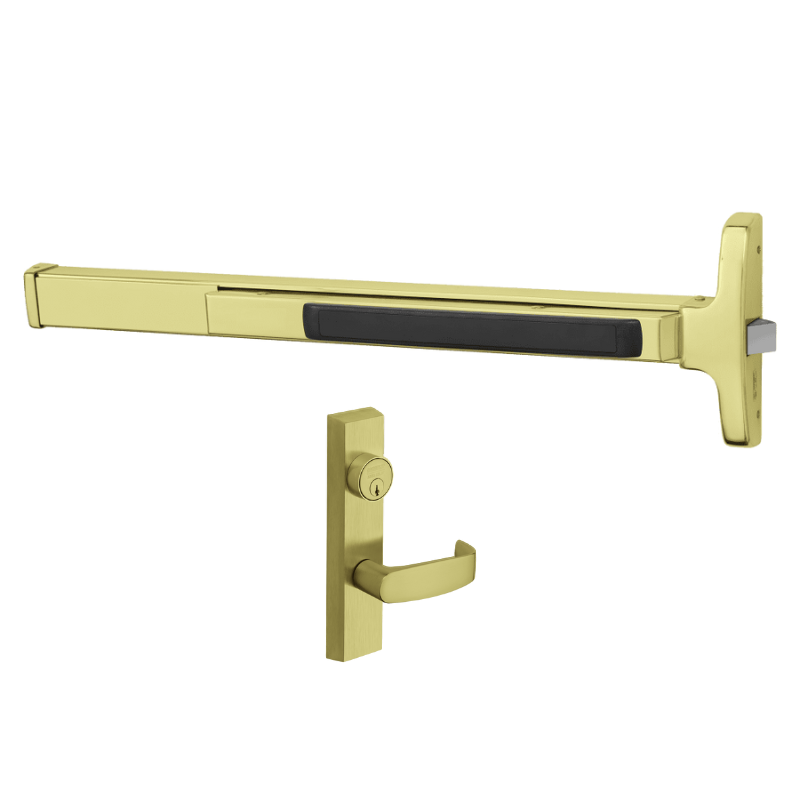

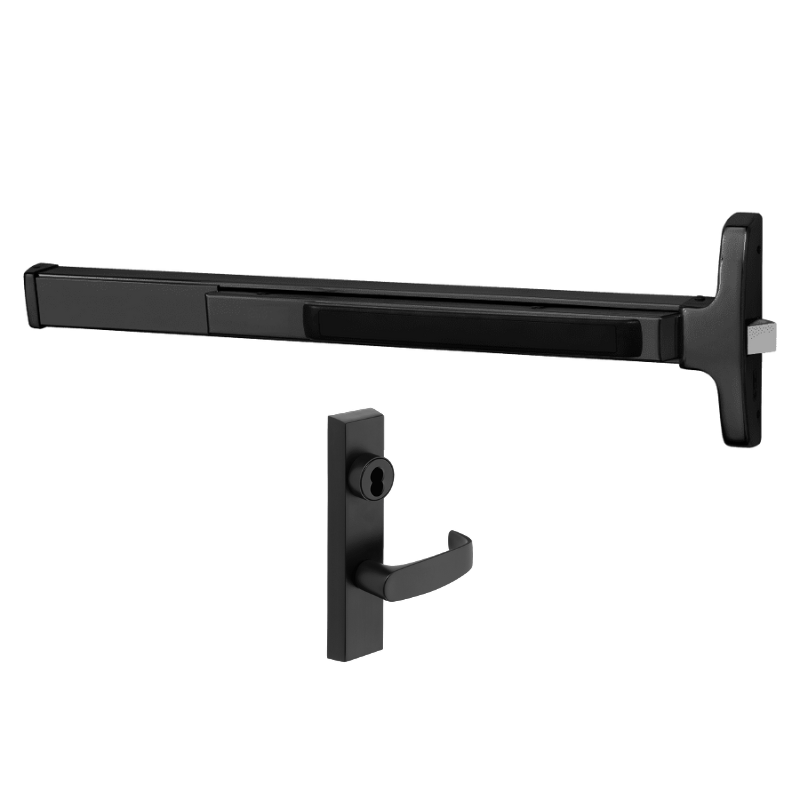

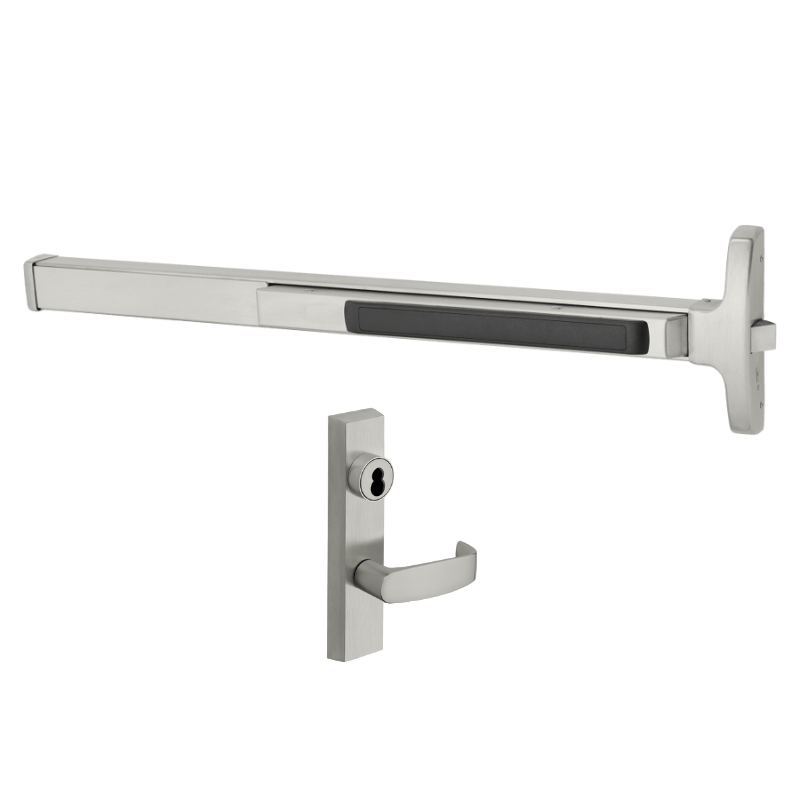

The Sargent 12-8513-F-ETL is a fire-rated narrow stile rim exit device equipped with an L-shaped lever. Designed for doors 33 to 36 inches wide, it features a key-operated locking mechanism that secures or releases the lever. This Grade 1 device includes no dogging function, ensuring robust security and compliance with fire safety requirements.

8500 Series Narrow Rim Exit Devices

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Narrow Stile Pushpad
Device Type	Rim
Mechanical Function	Lever Classroom
Device Length	36"
Includes Trim	Yes, ETL
Minimum Stile Size	2"
Door Material	Aluminum
Door Width	33" - 36"
Door Thickness	1-3/4" to 2-1/4"
Fire Rated	Yes
Product Type	Rim Exit Devices

Document Center

Product Cut Sheet

Handing Chart

Panic Handing Chart
