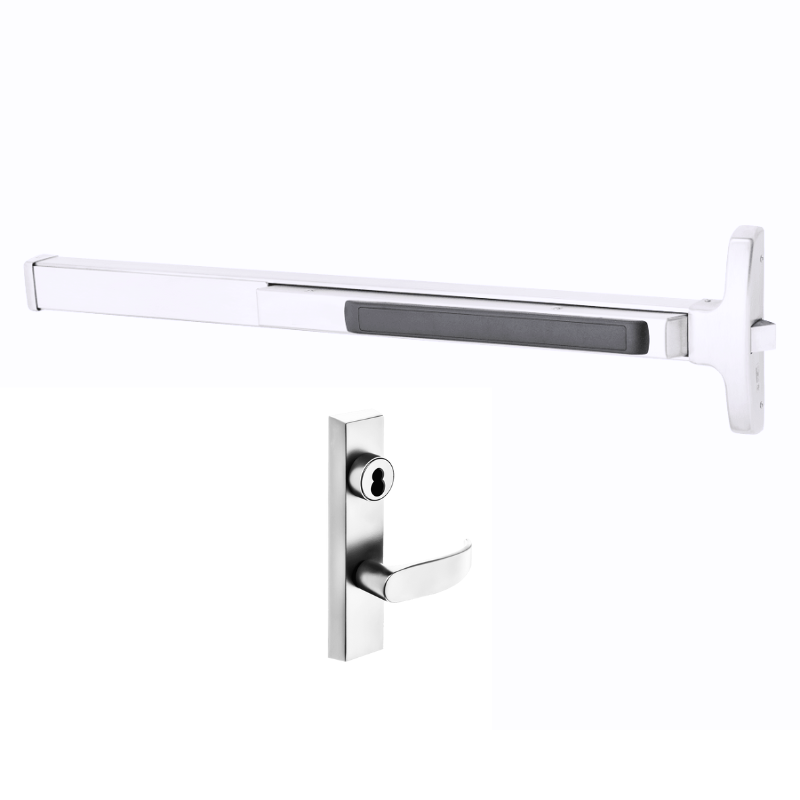

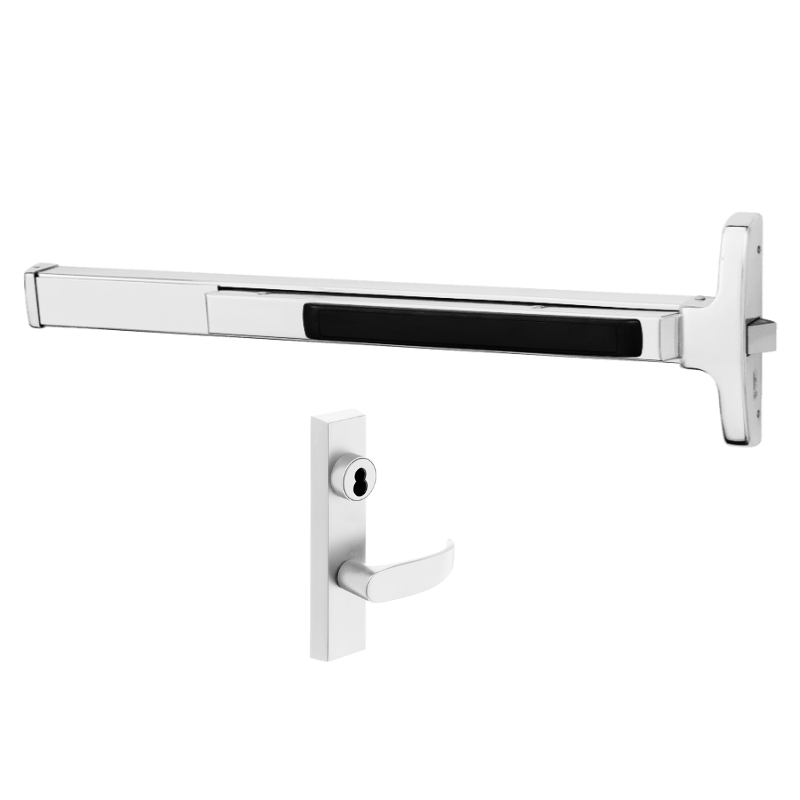

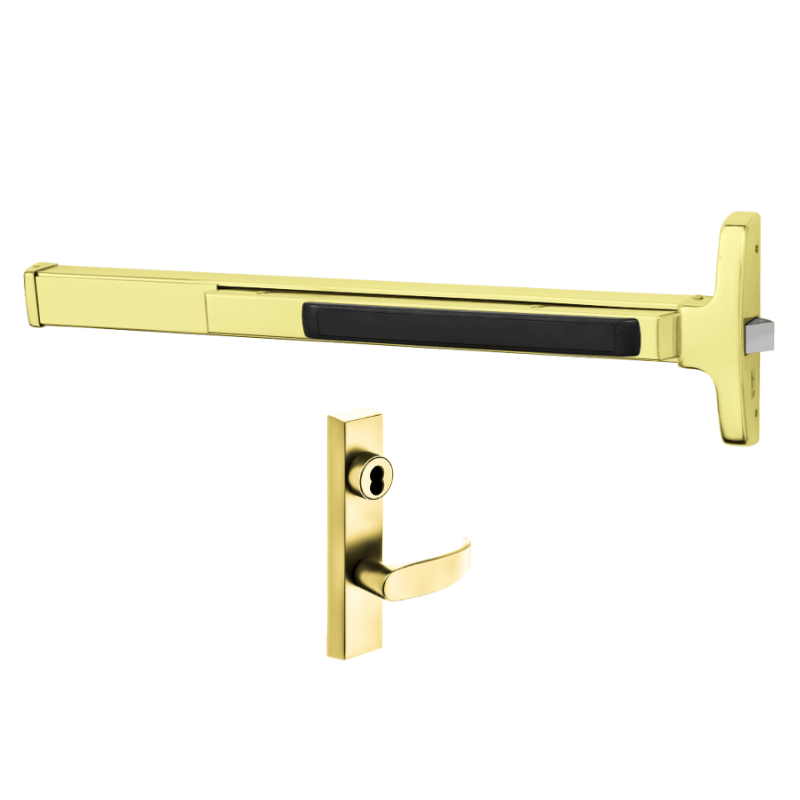

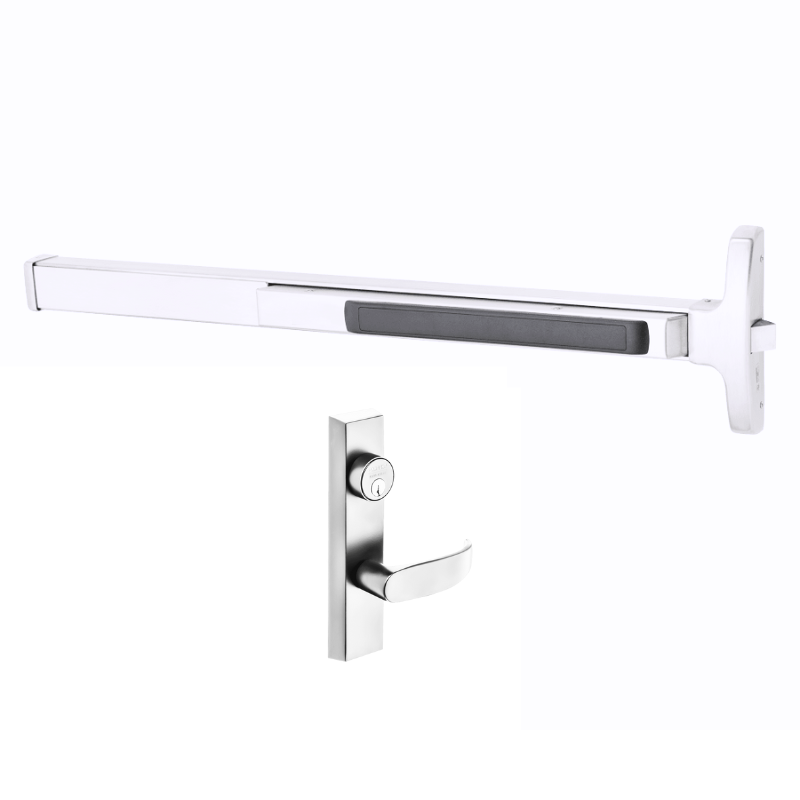

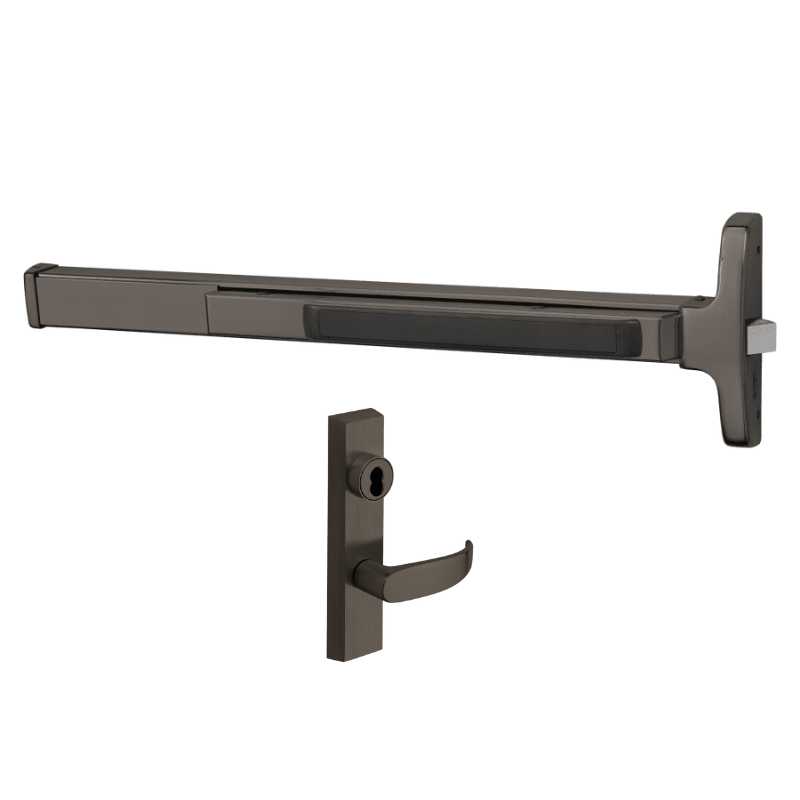

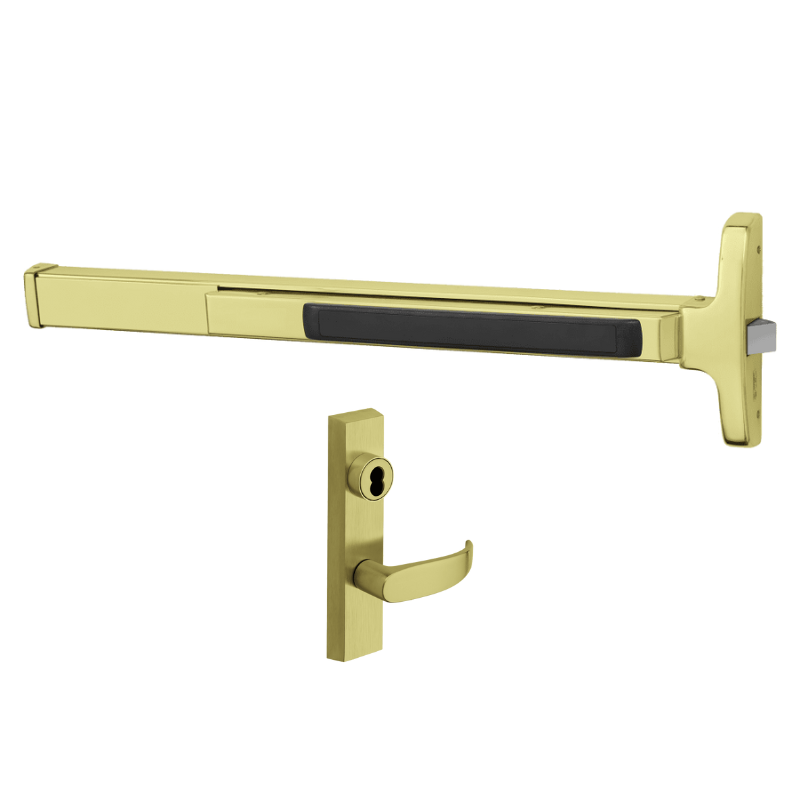

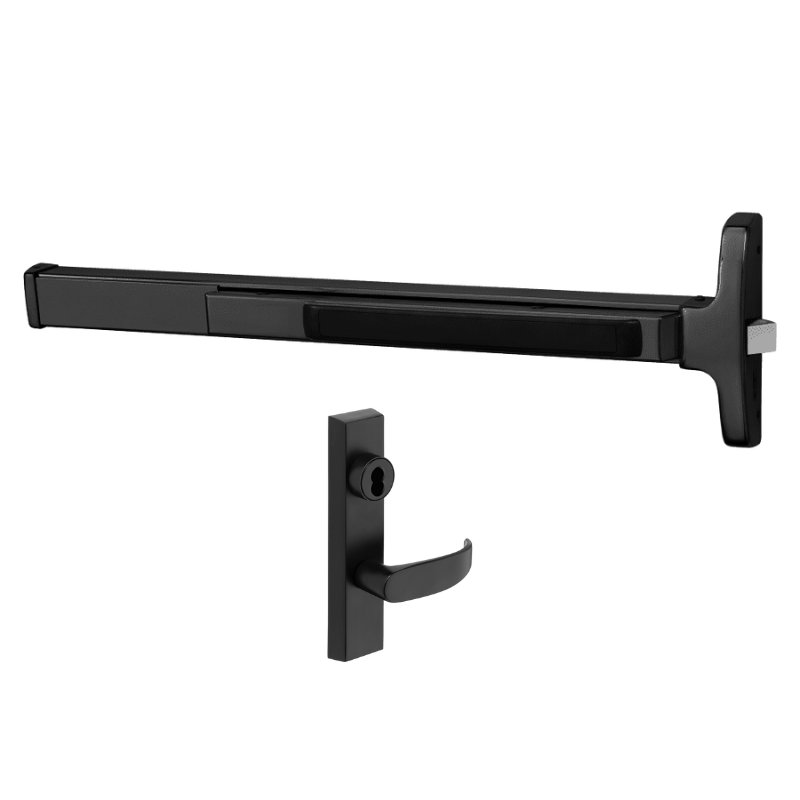

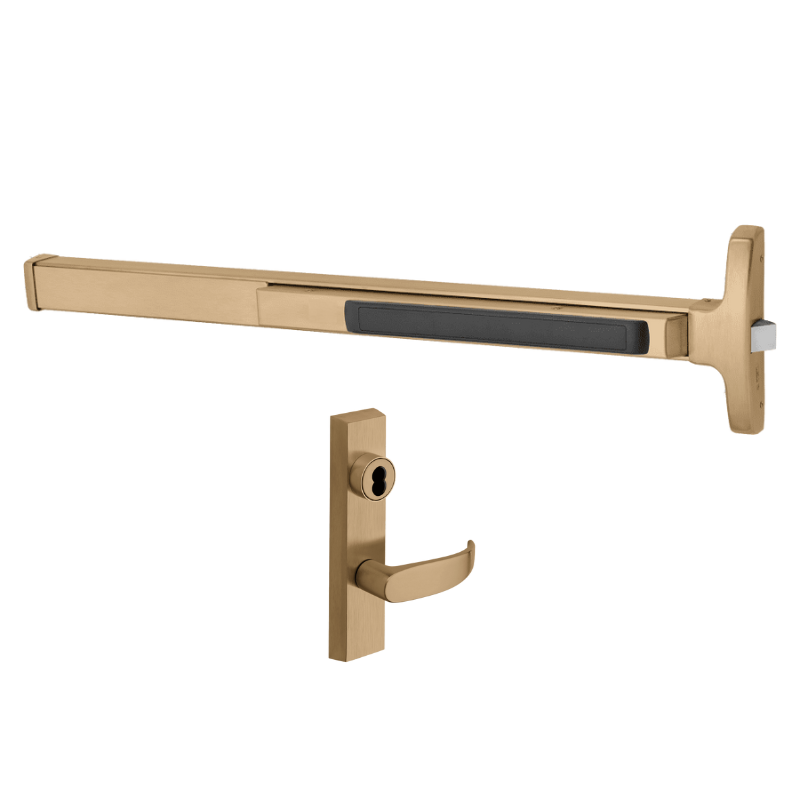

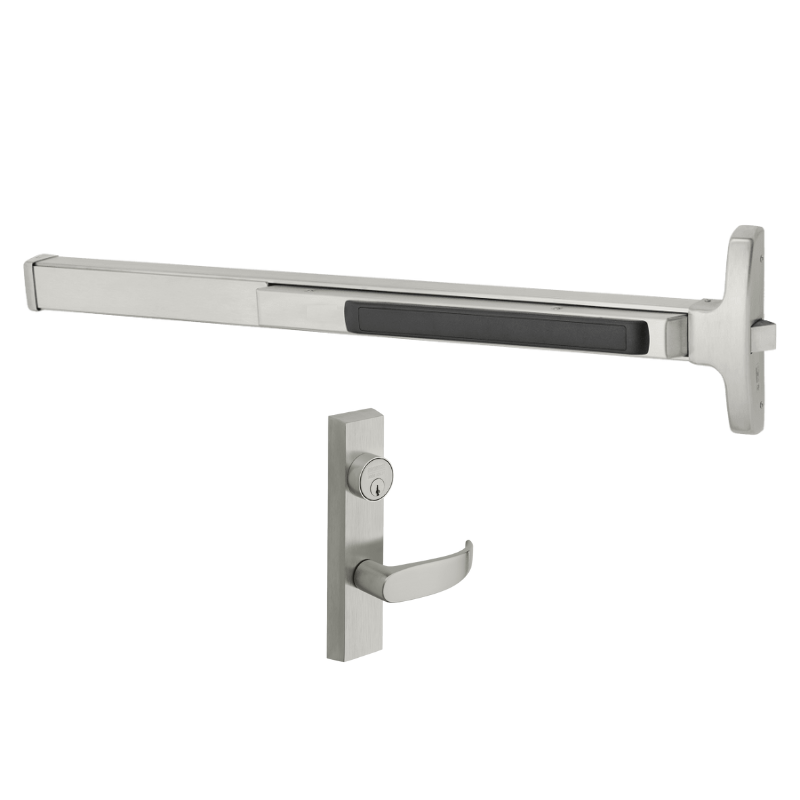

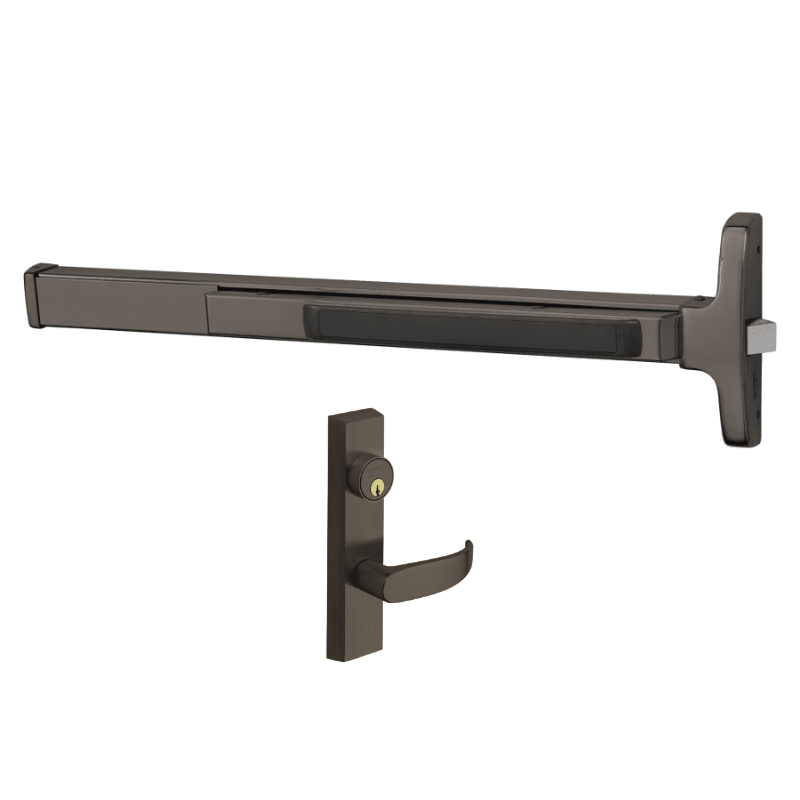

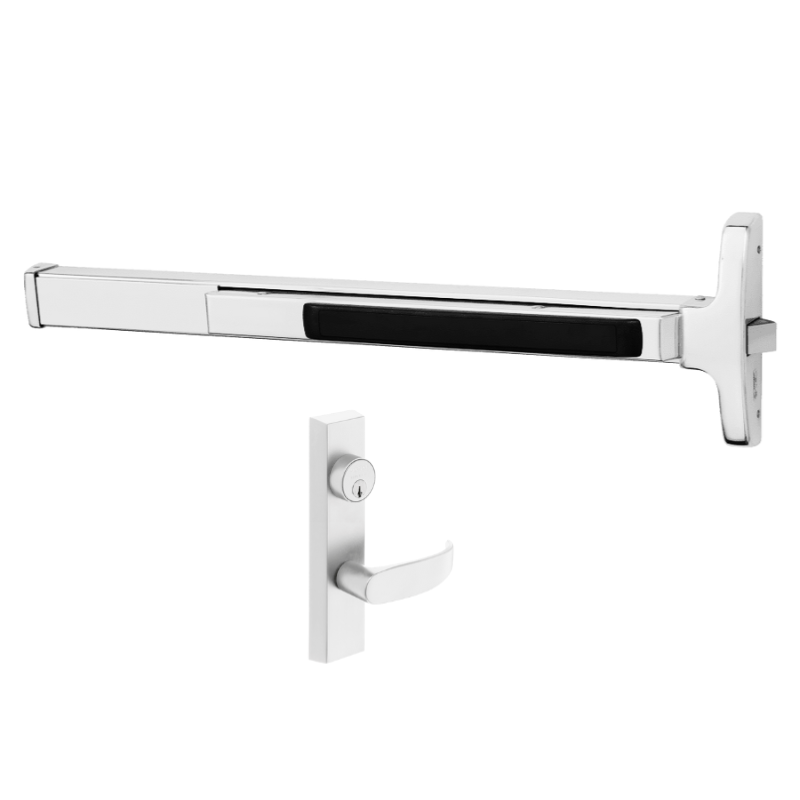

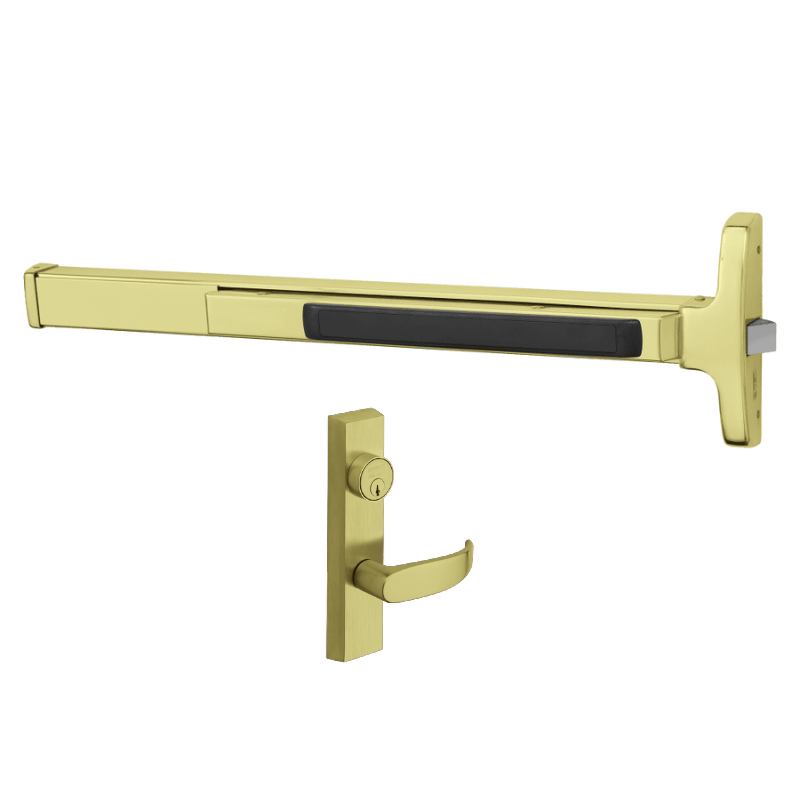

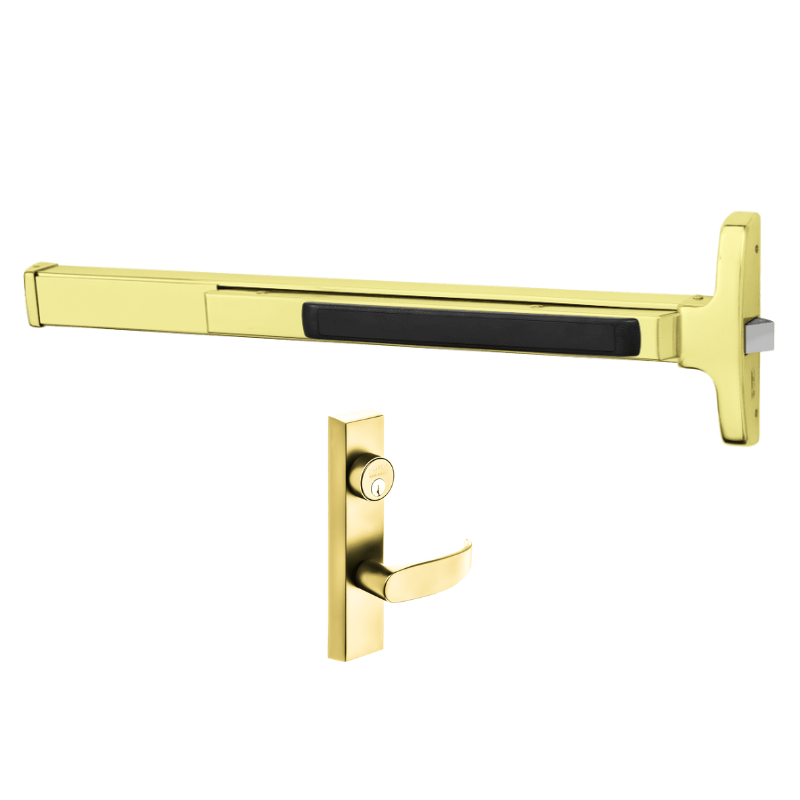

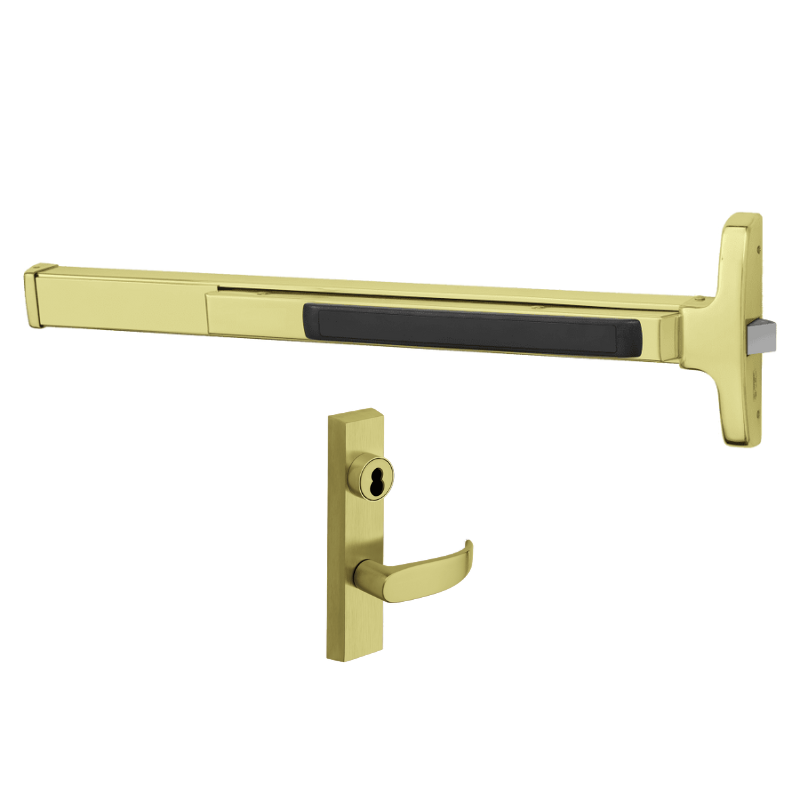

Sargent 12-8513-G-ETP Fire Rated Narrow Stile Rim Exit Device, P Lever, Key Locks or Unlocks Lever, 43-48 In Door, No Dogging, Grade 1 — Core Options: KD LA Keyway Keyed Different 2 Keys; or 60 LFIC Large Format Interchangeable Core; or 70 SFIC Small Format Interchangeable Core (Option)
The Sargent 12-8513-G-ETP is a fire-rated narrow stile rim exit device featuring a P lever. Designed for doors 43 to 48 inches wide, it offers key-operated locking and unlocking of the lever. This Grade 1 device includes no dogging for enhanced security and compliance.
8500 Series Narrow Rim Exit Devices
The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.
The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Optional: KD LA Keyway Keyed Different 2 Keys.
Optional: 60 LFIC Large Format Interchangeable Core.
Optional: 70 SFIC Small Format Interchangeable Core.
