Sargent 12-8715E-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 32" Device, 84" Door Height, Less Trim, Less Dogging

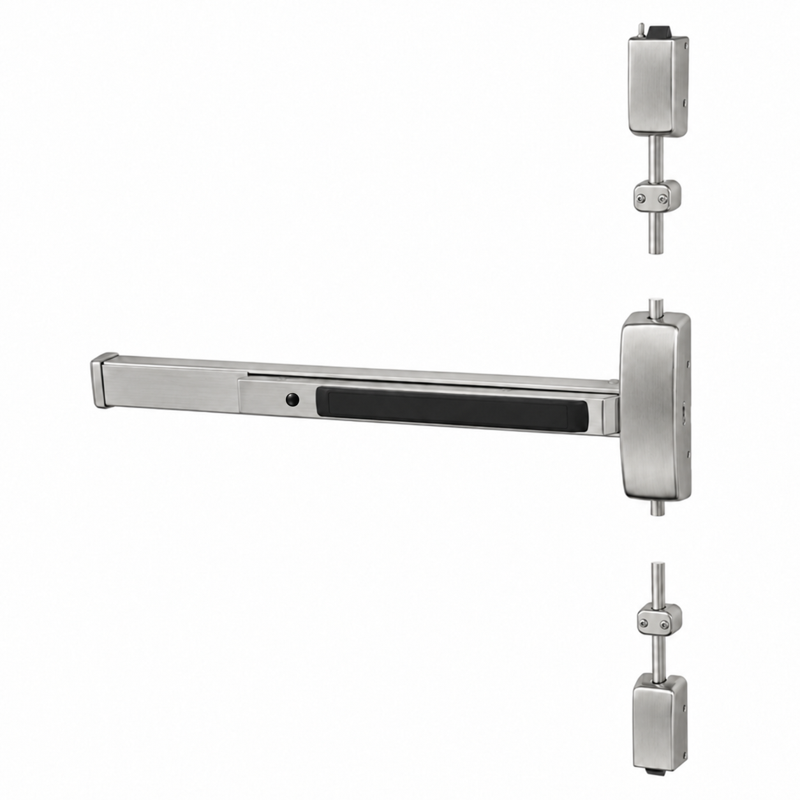

The Sargent 12-8715E-84 is a fire rated surface vertical rod exit device built for high-traffic commercial openings that demand reliable, code-compliant egress. Part of Sargent's durable 8700 Series, this device is configured for exit-only applications with a 32" device length suited to 84" door heights. It ships less trim and less dogging, making it ideal for fire-rated openings where latching must remain active at all times. With surface-mounted top and bottom rod assemblies and heavy-duty construction, this exit device delivers dependable performance and smooth panic egress in schools, hospitals, and other institutional environments.

Features

  • Fire rated surface vertical rod exit device for code-compliant egress on labeled fire doors.
  • Exit-only function with no outside trim operation for secure, one-way egress.
  • 32" device length designed for use on 84" door heights.
  • Less dogging, keeping the device latched at all times as required for fire-rated applications.
  • Surface-mounted top and bottom rods for simplified installation and serviceability.
  • Heavy-duty construction engineered for demanding commercial traffic.

Functional Details

As an exit-only device, the 12-8715E-84 allows free egress by pushing the touchpad from the inside while providing no means of entry from the exterior, since it is furnished less trim. The fire rating ensures the latch bolts remain engaged during a fire condition to maintain door integrity.

Manufacturer Sargent
SKU 12-8715E-84
Series 8700 Series
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Grade ANSI/BHMA Grade 1
Fire Rating Fire Rated
Dogging Less Dogging
Origin USA
Unit of Measure Each
UL Listing Type UL/cUL Listed Panic and Fire Exit Hardware
Limited Warranty Manufacturer's Limited Warranty
Device Length 32"
Door Height 84"
Mounting Surface Mounted
Rod Configuration Top and Bottom Vertical Rods
Minimum Stile Width Per manufacturer specification
Latch Bolt Top and bottom latching
ANSI/BHMA Standard A156.3 Grade 1
Handing Non-handed
Door Type Hollow metal, wood, or aluminum
Trim Less Trim (no outside operation)
