Sargent 12-8715E-96 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 32" Device, 96" Door Height, Less Trim, Less Dogging

  • SKU: 128715E96US32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,856.29/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8715E-96 Fire Rated Surfac...
Quantity
–
+
$1,856.29
Sargent ET Trims For 80 Series Exit D...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 12-8715E-96 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 32" Device, 96" Door Height, Less Trim, Less Dogging

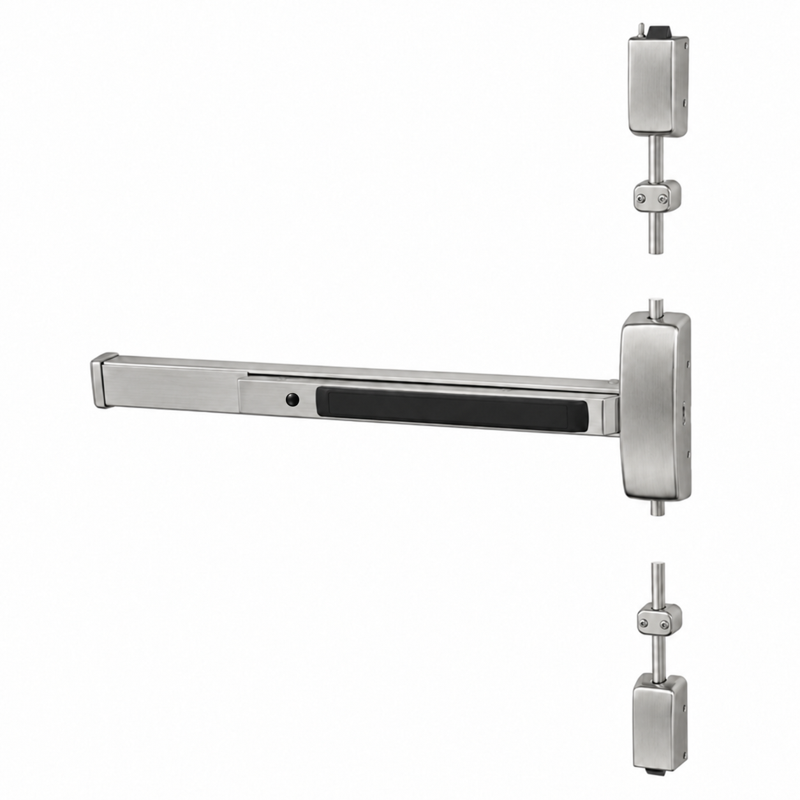

The Sargent 12-8715E-96 is a fire rated surface vertical rod exit device engineered for dependable performance on tall openings up to 96 inches. Part of Sargent's respected 8700 Series, this 32-inch device is configured as exit only (less trim) and comes less dogging, making it ideal for fire-rated applications where mechanical hold-open is not permitted. The surface-mounted vertical rods secure the door at both the top and bottom, delivering reliable two-point latching and smooth, reliable egress. Built to meet Grade 1 commercial standards, it's a strong choice for schools, hospitals, and other high-traffic commercial environments that demand code-compliant life-safety hardware.

Features

  • Fire rated surface vertical rod exit device suited for labeled door and frame assemblies.
  • 32" device size designed for use on doors up to 96" in height.
  • Exit only (less trim) configuration provides free egress from the secure side.
  • Less dogging, as required for fire-rated openings to ensure positive latching.
  • Surface-mounted top and bottom rods for two-point latching security.
  • Grade 1 construction built for demanding commercial use.

Functional Details

As an exit-only device, the push rail retracts both the top and bottom latches simultaneously when pressed, allowing the door to open freely from the inside. Because it is less trim, there is no exterior operating trim, so the door cannot be opened from the outside. The less dogging feature keeps the device self-latching at all times to maintain the fire rating.

  • Exit only (no outside trim).
  • Fire rated device without mechanical dogging.
Manufacturer Sargent
SKU 12-8715E-96
Series 8700 Series
Grade ANSI/BHMA Grade 1
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Fire Rating Fire Rated
Dogging Less Dogging
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed Fire Exit Hardware
ANSI Number ANSI/BHMA A156.3
Limited Warranty Manufacturer's Limited Warranty
Device Length 32 inches
Maximum Door Height 96 inches
Latching Points Two (top and bottom)
Rod Mounting Surface Mounted Vertical Rods
Device Mounting Surface Applied
Door Type Wood or Hollow Metal
Handing Non-Handed
Top Latch Bolt Throw 3/4 inch
Bottom Latch Bolt Throw 3/4 inch
Fire Exit Hardware Yes
Mechanical Dogging Not Applicable (Fire Rated)
Product Cut Sheet
