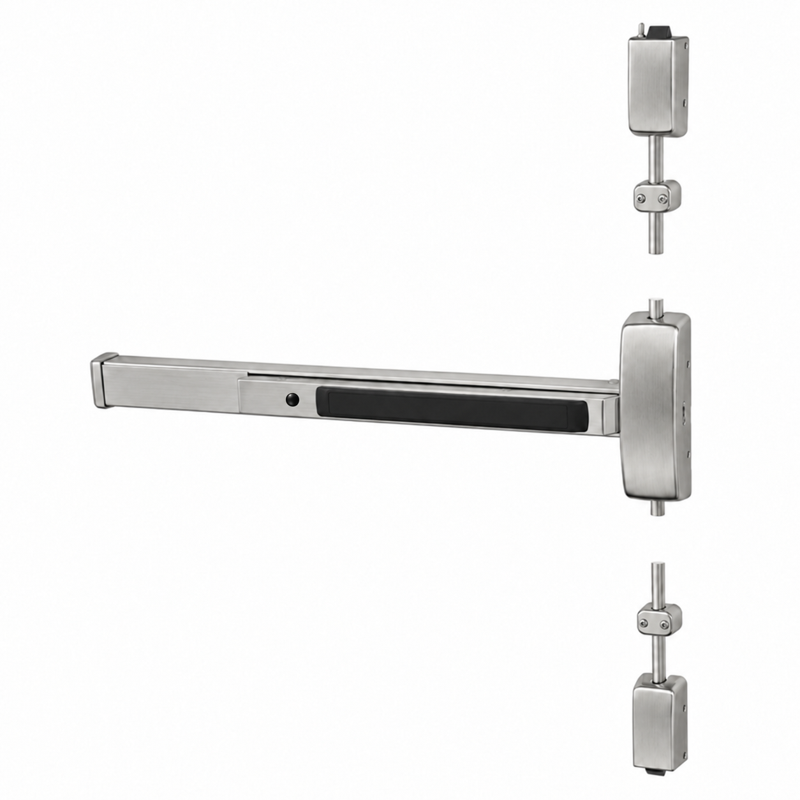

Sargent 12-8715F-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 36" Device, 84" Door Height, Less Trim, Less Dogging

  • SKU: 128715FUS32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,856.29/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8715F-84 Fire Rated Surfac...
Quantity
–
+
$1,856.29
Sargent ET Trims For 80 Series Exit D...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 12-8715F-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 36" Device, 84" Door Height, Less Trim, Less Dogging

The Sargent 12-8715F-84 is a fire rated surface vertical rod exit device built for reliable egress on 36" wide doors up to 84" in height. Part of the durable 8700 Series, this exit-only device operates without outside trim, making it ideal for secure openings where entry from the exterior is not required. The fire rating means dogging is not available, ensuring the device stays latched during a fire event for proper door function. With its rugged surface-mounted design and top and bottom vertical rod latching, the 12-8715F-84 delivers dependable performance in commercial and institutional settings that demand code-compliant life safety hardware.

Features

  • Fire rated surface vertical rod exit device suited for labeled door assemblies.
  • Exit-only configuration with no outside trim for secure one-way egress.
  • Sized for a 36" device width and 84" door height.
  • Top and bottom latching provides two-point security on the opening.
  • Less dogging, as required for fire rated applications.
  • Heavy-duty construction designed for high-traffic commercial use.

Functional Details

As an exit-only device, the 12-8715F-84 allows free egress by pushing the touchbar from the inside while providing no means of entry from the outside. Because it carries a fire rating, mechanical dogging is omitted so the latches remain engaged to maintain the integrity of the fire door.

  • Fire rated devices are not available with mechanical dogging.
  • Surface vertical rod design latches at the top and bottom of the door.
  • Exit only function provides egress with no outside operating trim.
Manufacturer Sargent
SKU 12-8715F-84
Series 8700 Series
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Grade ANSI/BHMA Grade 1
Origin USA
Unit of Measure Each
UL Listing Type UL/ULC Listed for Fire Door
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Manufacturer Limited Warranty
Device Width 36 in
Maximum Door Height 84 in
Latching Points Top and bottom vertical rod
Mounting Surface mounted
Door Type Single and double doors
Dogging None (fire rated)
Fire Rating 3 Hour (A Label)
Touchbar Projection Within standard exit device range
Rod Type Concealed vertical rods within device covers
Trim Less trim (no outside operation)
