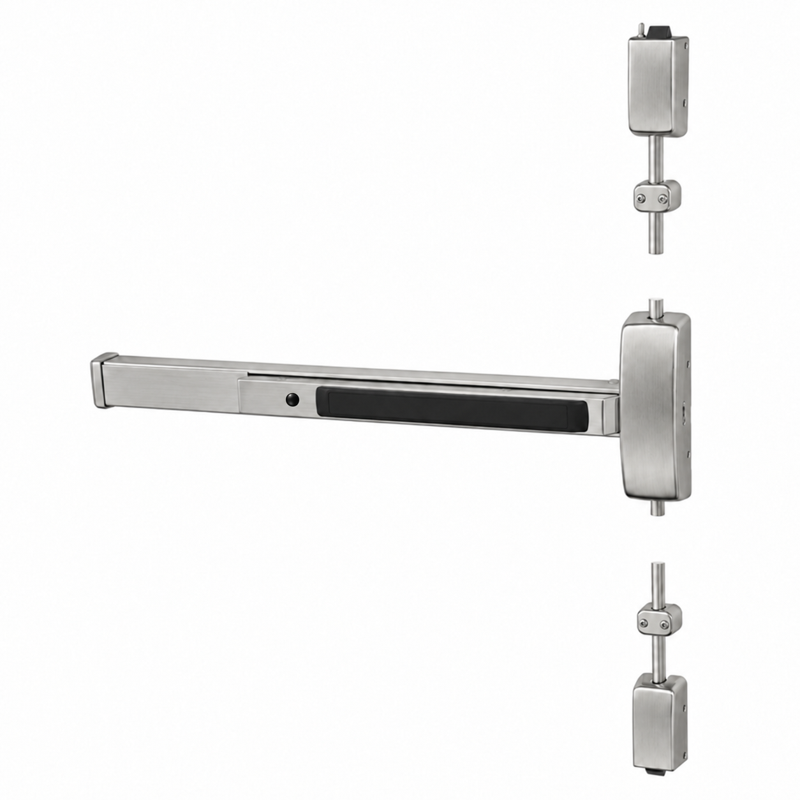

Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging

  • SKU: 128715JUS32DLHR
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US32D-630 Satin Stainless Steel, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US3-605 Bright Brass, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US3-605 Bright Brass, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US4-606 Satin Brass, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US4-606 Satin Brass, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US9-611 Polished Brass, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US9-611 Polished Brass, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10-612 Satin Bronze, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10-612 Satin Bronze, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10B-613 Oil Rubbed Bronze, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10B-613 Oil Rubbed Bronze, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10BE-613E Dark Oxidized Bronze, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10BE-613E Dark Oxidized Bronze, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10BL-614 Oxidized Satin Bronze, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US10BL-614 Oxidized Satin Bronze, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US20D-624 Statuary Dark Bronze, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US20D-624 Statuary Dark Bronze, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US32-629 Polished Stainless Steel, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — US32-629 Polished Stainless Steel, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — BSP Black Suede Powder Coat, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — BSP Black Suede Powder Coat, RHR Right Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — WSP White Powder Coat, LHR Left Hand Reverse
Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging — WSP White Powder Coat, RHR Right Hand Reverse
Zoomed view
All SARGENT Products

Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging

  • SKU: 128715JUS32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,856.29/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8715J-84 Fire Rated Surfac...
Quantity
–
+
$1,856.29
Sargent ET Trims For 80 Series Exit D...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 12-8715J-84 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Less Dogging

The Sargent 12-8715J-84 is a fire rated surface vertical rod exit device built for reliable egress on 84" tall doors up to 42" wide. Part of the rugged 8700 Series, this exit-only configuration operates without outside trim, making it an ideal solution for openings where controlled single-direction exit is required. The surface-mounted vertical rods engage top and bottom latch points for secure two-point latching, while the fire rated construction supports code compliance on labeled fire door assemblies. Supplied less dogging, the device keeps the latches active at all times, which is standard practice for fire rated applications. It delivers dependable, heavy-duty performance in demanding commercial environments.

Features

  • Surface vertical rod design provides secure top and bottom latching for added door stability.
  • Fire rated construction suits labeled fire door openings requiring positive latching.
  • Exit-only function allows free egress with no outside trim or operation.
  • Sized for 42" wide devices on doors up to 84" in height.
  • Supplied less dogging to maintain active latching in fire rated service.
  • Heavy-duty 8700 Series build engineered for high-traffic commercial use.

Functional Details

As an exit-only device, the 12-8715J-84 allows free egress from the inside by pressing the push bar, while providing no means of entry or operation from the outside since it is furnished less trim. The fire rated version is supplied less dogging so the latches remain engaged at all times.

  • Exit only (no outside trim)
  • Surface vertical rod
  • Fire rated application
Manufacturer Sargent
SKU 12-8715J-84
Series 8700 Series
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Grade ANSI/BHMA Grade 1
Listing UL Fire Rated
ANSI Number A156.3
Origin Made in USA
Unit of Measure Each
Limited Warranty Yes
Device Size 42" (4 ft)
Maximum Door Height 84"
Latching Points Two-point (top and bottom)
Rod Type Surface Mounted Vertical Rod
Mounting Surface
Dogging Less Dogging
Trim Less Trim
Door Type Fire Rated
Door Thickness 1-3/4" standard
Application Single door, exit only
