Description

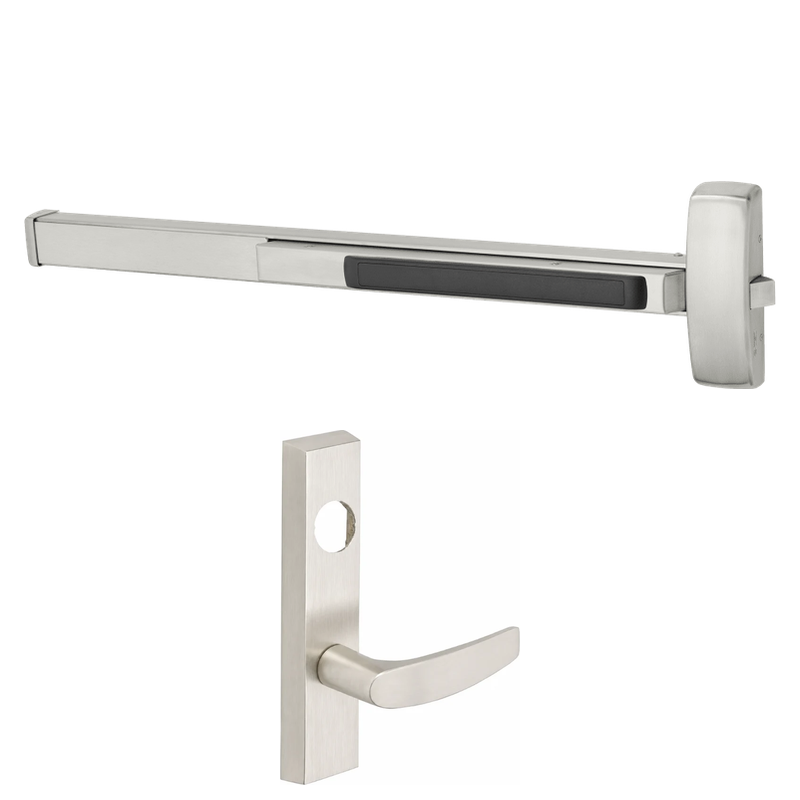

Sargent 12-8813-F-ETB Fire Rated Rim Exit Device, Classroom Function, ET Control, B Lever, 33"-36" Door Width, Less Dogging, Grade 1, Less Cylinder
The Sargent 12-8813-F-ETB is a Grade 1 fire rated rim exit device built for demanding commercial openings that need reliable egress and classroom-level access control. Designed for doors measuring 33 to 36 inches wide, it pairs the durable 8800 Series exit device chassis with the ETB trim, featuring the B lever for comfortable, ADA-friendly operation. The classroom function lets authorized users control outside access by key while allowing free egress at all times. As a fire rated unit, it ships less dogging to maintain the latching required for fire-door assemblies, and it comes less cylinder so you can specify the keying that fits your facility.
Features
- Grade 1 rim exit device engineered for heavy commercial and institutional use.
- Fire rated construction suitable for labeled fire door assemblies.
- Classroom (ET) function with exterior lever controlled by key.
- B lever design provides smooth, ADA-compliant operation.
- Sized for single doors from 33 to 36 inches wide.
- Supplied less dogging as required for fire rated applications.
- Ships less cylinder for flexible keying options.
Functional Details
The classroom function allows free egress from the inside at all times by depressing the push rail, while the outside lever is controlled by a mortise cylinder. Turning the key retracts the latch for momentary entry, giving staff control over who enters the room without ever restricting the exit path.
- Classroom function: outside lever controlled by key, always free egress from inside.
- Key retracts latch for entry; latch relatches automatically when the door closes.
Arm Type Details
The ETB trim uses the B lever, a return-style lever that meets accessibility requirements. The lever connects to the exit device chassis to retract the rim latch when authorized by key.
Included Components
The device includes the rim exit device chassis, strike, and ETB lever trim with B lever. A mortise cylinder must be ordered separately to complete the classroom function.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8813-F-ETB |
| Series | 8800 Series |
| Grade | ANSI/BHMA Grade 1 |
| Function | Classroom (ET) |
| Device Type | Rim Exit Device |
| Trim | ETB with B Lever |
| Fire Rating | Fire Rated |
| Dogging | Less Dogging |
| Cylinder | Less Cylinder |
| Origin | Made in USA |
| Unit of Measure | Each |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 33" to 36" |
| Door Type | Single Door |
| Mounting | Surface (Rim) |
| Latchbolt Type | Deadlocking Pneumatic |
| Latchbolt Throw | 3/4" |
| Cylinder Type | Mortise Cylinder |
| UL Listing | UL/cUL Fire Exit Hardware |
| ANSI Standard | ANSI/BHMA A156.3 Grade 1 |
| Minimum Stile Width | 3-1/2" |
| Handing | Non-handed |
