Description

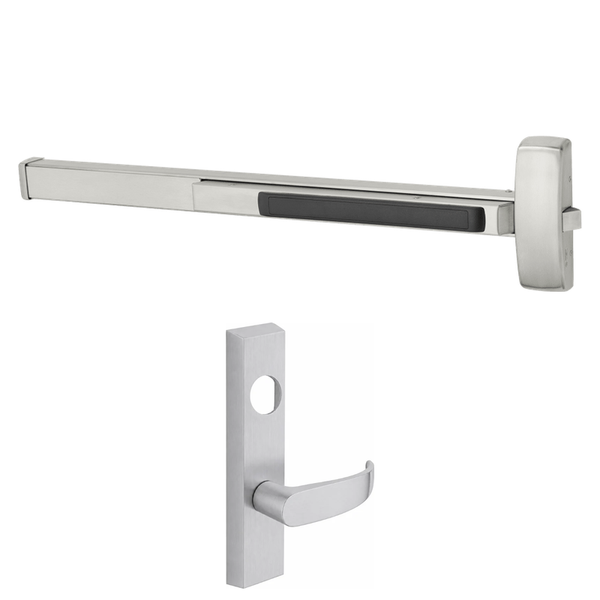

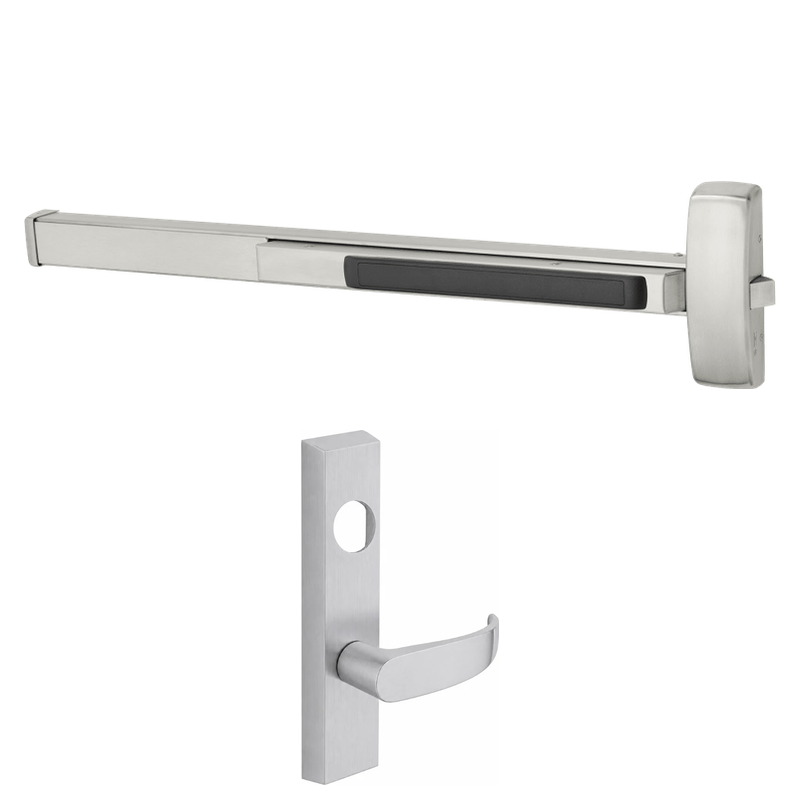

Sargent 12-8813-F-ETP Fire Rated Rim Exit Device, Classroom Function, ET Control, P Lever, 33"-36" Door Width, Less Dogging, Grade 1, Less Cylinder
The Sargent 12-8813-F-ETP is a fire-rated rim exit device built for high-traffic commercial openings that demand reliable egress and controlled entry. Designed for classroom function, it allows outside access through the ET trim with a P lever when the outside cylinder is used, while always permitting free egress from the inside. This Grade 1 device fits doors measuring 33" to 36" in width and comes less dogging, as required for fire-rated applications, and less cylinder for pairing with your preferred keying system. Part of Sargent's 80 Series, it offers the durability and code compliance professionals expect for schools, offices, and institutional buildings.
Features
- Fire-rated rim exit device suitable for labeled door and frame assemblies.
- Classroom (ET) function with P lever for secure, controlled outside access.
- Sized for doors 33" to 36" wide.
- Grade 1 construction for heavy-duty commercial performance.
- Supplied less dogging to meet fire-rated requirements.
- Furnished less cylinder, allowing use of your own mortise cylinder and keyway.
- Free egress at all times from the interior side.
Functional Details
The classroom function uses the outside cylinder to retract the latch, giving authorized users entry while the device continuously allows unimpeded exit from the inside. Pushing the touchpad retracts the latch for egress at any time.
- Outside lever controlled by key; latchbolt retracted by key or by turning lever when unlocked.
- Key locks or unlocks outside lever.
- When locked, outside lever is rigid; latchbolt is retracted by key only.
- Free egress at all times.
Arm Type Details
This unit uses the ET trim design paired with the P lever, providing a durable escutcheon-style exterior trim engineered for institutional environments. The lever remains rigid when locked and operates smoothly when access is granted by key.
Included Components
The device ships with the rim exit chassis, ET exterior trim with P lever, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8813-F-ETP |
| Series | 80 Series |
| Function | Classroom (ET) |
| Grade | ANSI/BHMA Grade 1 |
| Fire Rating | Fire Rated |
| Door Width Range | 33" to 36" |
| Dogging | Less Dogging |
| Cylinder | Less Cylinder |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for Fire Exit Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Rim Exit Device |
| Lever Style | P Lever |
| Trim Type | ET Control Trim |
| Latchbolt Type | Deadlatching Pullman |
| Latchbolt Throw | 3/4" |
| Minimum Stile Width | 3-1/2" |
| Door Thickness | 1-3/4" standard |
| Handing | Non-handed |
| Cylinder Type | Mortise Cylinder (not included) |
| Mounting | Surface Mounted |
| Material | Steel and Zinc Components |
