Description

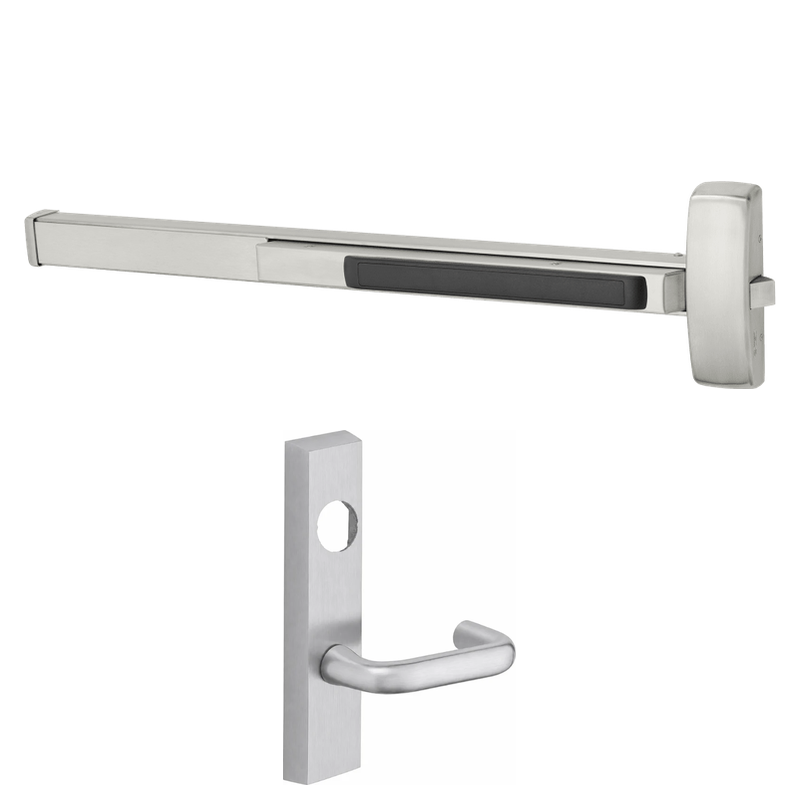

Sargent 12-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, ET Control, J Lever, 43"-48" Door Width, Less Dogging, Grade 1, Less Cylinder
The Sargent 12-8813-G-ETJ is a fire-rated rim exit device engineered for high-traffic commercial openings that demand reliable egress and secure access control. Configured with classroom (ET) function and the J lever design, this Grade 1 device provides dependable performance on single doors ranging from 43" to 48" in width. As a fire-rated unit, it ships less dogging to maintain the latch engagement required for fire door assemblies, and it comes less cylinder so you can specify the keying that fits your facility. Built to meet the rigorous standards expected from Sargent's 80 Series, it delivers smooth operation and long-term durability in schools, offices, and institutional settings.
Features
- Fire-rated rim exit device suitable for labeled single door openings.
- Classroom (ET) function allows outside lever to retract the latch when unlocked by key.
- J lever trim offers a clean, ergonomic grip for everyday use.
- Sized for doors from 43" to 48" in width.
- Less dogging to comply with fire door requirements.
- Ships less cylinder for flexible keying options.
- Grade 1 construction built for heavy commercial duty.
Functional Details
The classroom function (ET) uses the outside lever to control access. A key is used from the outside to lock or unlock the lever; when unlocked, the lever retracts the latch for entry, and free egress is always available by pushing the touchbar from the inside.
- Latchbolt retracted by lever from outside unless locked by key outside.
- Key outside locks or unlocks lever.
- When locked, lever is rigid and entrance is by key only.
- Free egress at all times from inside.
Arm Type Details
This device uses the ETJ trim configuration, pairing the ET classroom control with the J lever style. The J lever provides a comfortable, return-style grip that minimizes snagging and meets accessibility expectations for commercial openings.
Included Components
The device includes the rim exit chassis, touchbar assembly, and ETJ lever trim. A mortise cylinder is not included and must be ordered separately to complete the classroom function.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 12-8813-G-ETJ |
| Device Type | Fire Rated Rim Exit Device |
| Function | Classroom (ET) |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | Fire Rated (3-hour) |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Series | 80 Series |
|---|---|
| Door Width Range | 43" to 48" |
| Lever Style | J Lever |
| Trim Control | ET |
| Dogging | Less Dogging |
| Cylinder | Less Cylinder |
| Latch Type | Deadlatching Latchbolt |
| Latchbolt Throw | 3/4" |
| Door Type | Single Door |
| Mounting | Rim Mounted |
| Handing | Non-Handed |
