Sargent 12-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, ET Control, P Lever, 37"-42" Door Width, Less Dogging, Grade 1, Less Cylinder

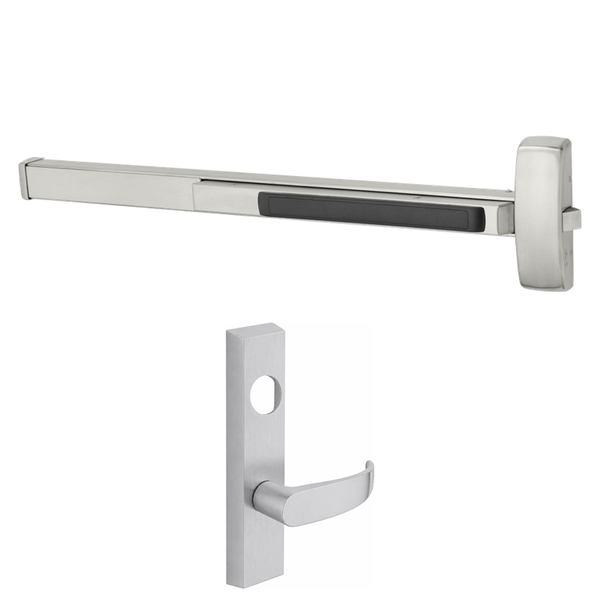

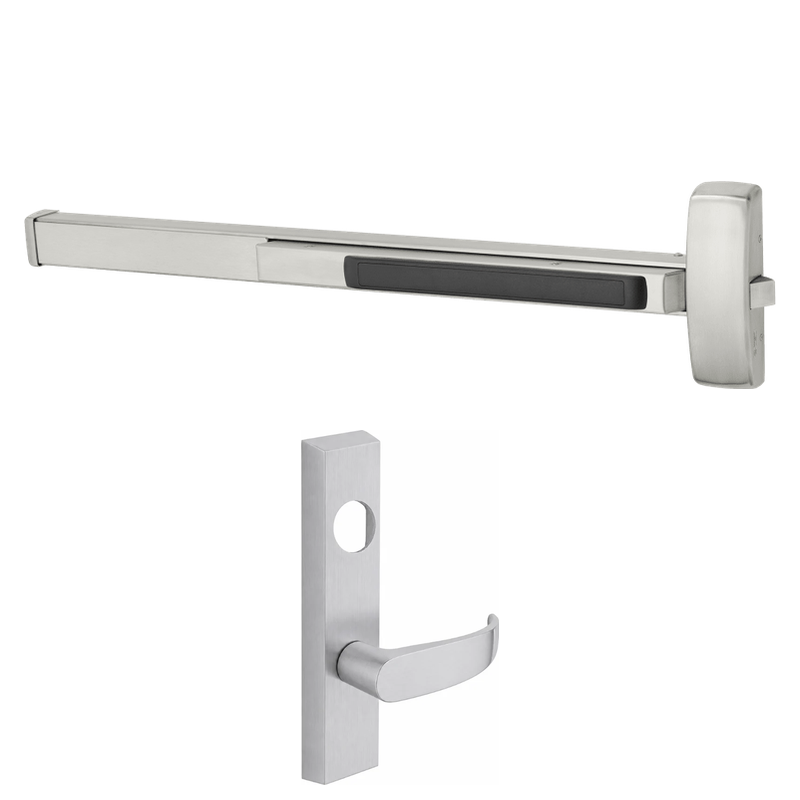

The Sargent 12-8813-J-ETP is a Grade 1 fire rated rim exit device engineered for classroom function on doors measuring 37 to 42 inches wide. Built as part of Sargent's 80 Series, this device pairs dependable rim exit hardware with the ET trim and P lever for secure, code-compliant egress in schools, healthcare facilities, and other high-traffic commercial buildings. The classroom function allows the outside lever to be locked or unlocked by key, while free egress is always maintained from the inside. Supplied less dogging to meet fire rating requirements and less cylinder for flexible keying, it delivers the durability and reliability expected from Sargent.

Features

• Grade 1 rim exit device suited for demanding commercial and institutional applications.
• Fire rated for use on labeled door openings where positive latching is required.
• Classroom function lets the outside lever be locked or unlocked by key while allowing free egress at all times.
• Sized for doors 37 to 42 inches in width.
• ET trim with P lever design for comfortable, ADA-friendly operation.
• Supplied less dogging to comply with fire door requirements.
• Furnished less cylinder, allowing the specifier to match existing keying systems.

Functional Details

The classroom (J) function provides controlled access from the exterior while ensuring unrestricted exit from the interior. A key is used from the outside to lock or unlock the lever, making it ideal for rooms that need to be secured against unauthorized entry without compromising egress.

• Latchbolt operated by lever from outside unless locked by key.
• Key locks or unlocks outside lever.
• Exit device always allows free egress.

Included Components

This order includes the 8800 Series rim exit device chassis, the ET escutcheon trim with P lever, and standard mounting hardware. A cylinder is not included and must be ordered separately.
