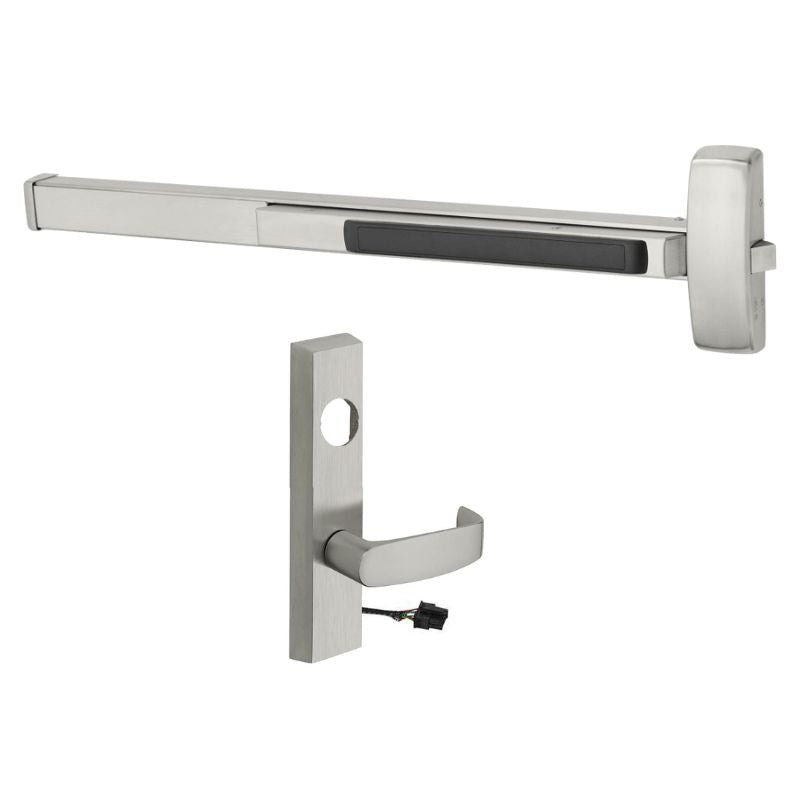

Sargent 12-8875-F-ETL-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)
The Sargent 12-8875-F-ETL-12V is a fire rated rim exit device engineered for secure, electrified access control on commercial openings. Built for doors measuring 33" to 36" in width, it combines the proven 80 Series exit device platform with electrified ETL lever trim running on 12 volts DC. Configured as fail safe, the trim unlocks when power is removed, making it well suited to life-safety applications where free egress and controlled entry must work together. A key cylinder retracts the latch for mechanical override, and the fire rated construction means dogging is not available. This device is a dependable option for institutional, healthcare, and commercial facilities that demand code compliance and consistent performance.
Features
- Fire rated rim exit device suitable for labeled fire door assemblies.
- Electrified ETL lever trim provides controlled access on the exterior.
- Operates on 12V DC for integration with access control systems.
- Fail safe function unlocks the lever trim when power is removed.
- Key cylinder retracts the latch for mechanical entry.
- Sized for doors ranging from 33" to 36" in width.
- Less dogging, as required for fire rated applications.
- Optional: KD LA keyway keyed differently with 2 change keys.
- Optional: LC Less Cylinder.
Functional Details
The fail safe electrified trim keeps the outside lever locked while energized and unlocks the instant power is interrupted, permitting entry during a power loss or alarm condition. Egress through the exit device remains available regardless of power state.
- Fail safe: power off unlocks the outside lever trim.
- Key cylinder retracts the latch for mechanical override.
- Inside push rail provides free, code-compliant egress at all times.
Arm Type Details
This device uses electrified ETL (electric trim) lever trim rather than a closer arm. The ETL trim controls the outside lever electrically, locking or unlocking it based on the power supplied to the device, while the push rail governs egress mechanically.
Included Components
The unit ships as a complete fire rated rim exit device assembly with electrified ETL lever trim configured for 12V DC fail safe operation. Mounting hardware is included, while cylinders are typically ordered separately.
| Manufacturer | Sargent |
|---|---|
| SKU | 12-8875-F-ETL-12V |
| Device Type | Fire Rated Rim Exit Device |
| Grade | ANSI/BHMA Grade 1 |
| Origin | United States |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for Fire Doors |
| ANSI Number | A156.3 |
| BAA Qualified | Yes |
| Trim Type | Electrified ETL Lever Trim |
| Limited Warranty | Yes |
| Series | 80 Series |
|---|---|
| Function | Fail Safe |
| Voltage | 12V DC |
| Door Width Range | 33" to 36" |
| Device Mounting | Rim |
| Latchbolt Type | Deadlocking |
| Dogging | None (Fire Rated) |
| Key Function | Key Retracts Latch |
| Handing | Non-Handed |
| Cylinder | Mortise Cylinder (ordered separately) |
| Minimum Stile Width | Consult manufacturer template |
