Sargent 12-8875-F-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Safe, For 33"-36" Dr Width

  • SKU: 128875FETL24VUS32DLHR
Sargent 12-8875-F-ETL-24V-US26D
Sargent 12-8875-F-ETL-24V-US26D
Sargent 12-8875-F-ETL-24V-US10B
All SARGENT Products

Sargent 12-8875-F-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Safe, For 33"-36" Dr Width

  • SKU: 128875FETL24VUS32DLHR
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$2,007.07/ea
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8875-F-ETL-24V Fire Rated ...
Quantity
–
+
From $2,007.07
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Total

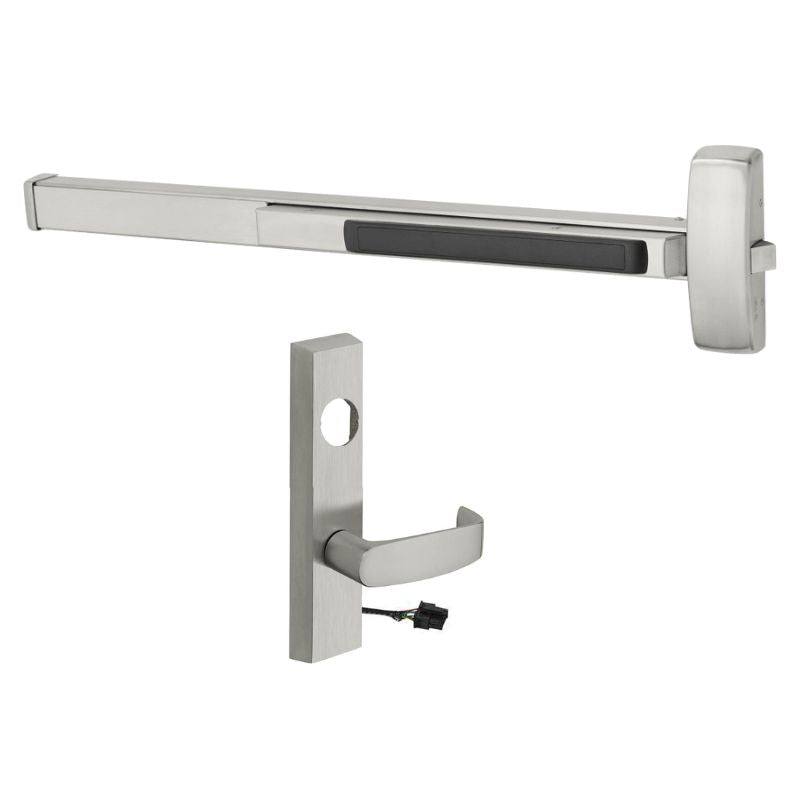

Sargent 12-8875-F-ETL-24V 33"-36" Fire Rated Rim Exit Device, Electrified ET Trim Fail Safe Power off Unlocks Lever, Key retracts Latch, 24V

The Sargent 12-8875-F-ETL-24V Fire Rated Rim Exit Device is equipped with an Electrified ET Trim that allows for fail-safe operation when power is off. With a lever that unlocks and a key that retracts the latch, this device is suitable for use with 24V power. The device is designed to fit doors measuring 33"-36" in length.

75 Electrified ET Trim - Fail Safe
The Sargent 775-8-ETL-24V Electrified Lever, comes less cylinder with an ETL Trim, Fail Safe Power Off Unlocks Lever Key Retracts Latch function-Cylinder Sold Separately

    Manufacturer Sargent
    Grade Grade 1
    Installation Commercial
    Origin USA
    Unit of Measure Each
    UL Listing Type UL10C & UL305
    ANSI Number ANSI/BHMA A156.3
    Restrictions None
    BAA Qualified Yes
    Limited Warranty 5 Years
    Fire Rated 3 Hours {A}
    Burglar Rated No
    ADA Compliance No



    Physical Appearance Wide Stile Pushpad
    Device Type Rim
    Mechanical Function Device to Accept Electrified Trim
    Device Length 36"
    Hand RHR OR LHR
    Dogging Options Less Dogging
    Includes Trim YES
    Trim Type ETL
    Includes Cylinder(s) No
    Cylinder Type LA Keyway Standard
    Minimum Stile Size 4-3/4"
    Door Material Metal or Wood
    Door Width 33" to 36"
    Door Thickness 1-3/4" - 2-1/4"
    Fire Rated Yes
    Reversible No
    Product Type Rim Exit Devices
    Product Cut Sheet

    Panic Handing Chart
