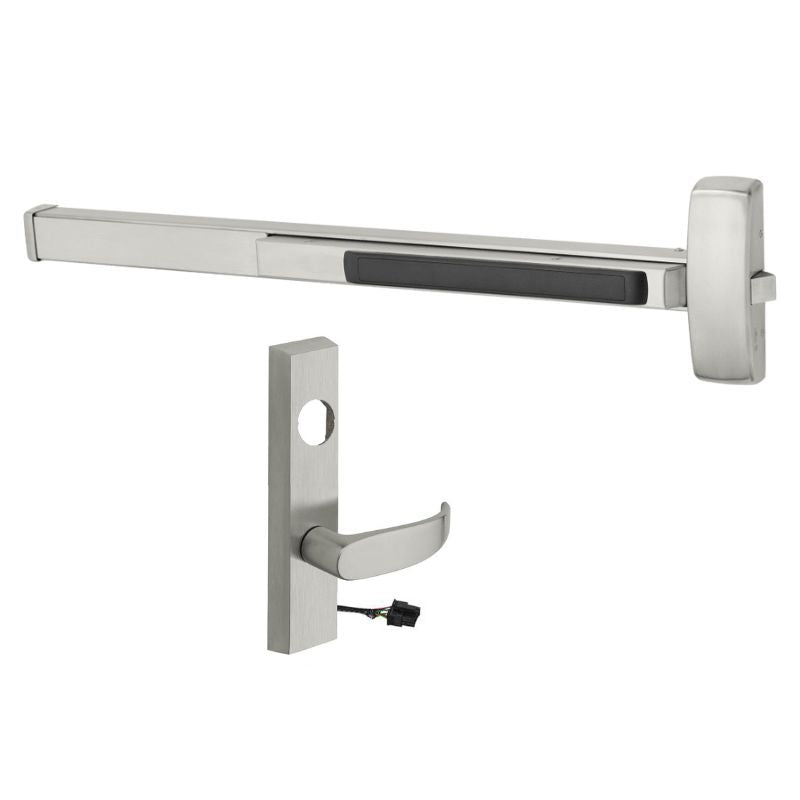

Sargent 12-8875-F-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-F-ETP-12V is a fire rated rim exit device engineered for high-traffic commercial openings that demand both life safety compliance and electrified access control. Sized for door widths from 33 to 36 inches, it pairs a rugged rim exit chassis with electrified ETP lever trim running on 12 volts DC. Configured as fail safe, the outside lever automatically unlocks when power is removed, making it a smart choice for secured areas that must release during a power loss. The key function retracts the latch for authorized entry, and the device ships less dogging to maintain its fire rating. It delivers reliable security with smooth everyday operation.

Features

• Fire rated rim exit device suitable for labeled fire door assemblies.
• Fits door widths from 33 to 36 inches.
• Electrified ETP lever trim for access control integration.
• Operates on 12 volts DC.
• Fail safe operation unlocks the lever when power is removed.
• Key function retracts the latch for outside entry.
• Supplied less dogging to maintain fire rating.
• Grade 1 construction for demanding commercial environments.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In this fail safe configuration, power holds the outside lever locked for controlled access. When power is interrupted, the lever is automatically released, allowing free entry during an emergency or power outage. The exit device always permits free egress from the inside by depressing the push bar.

• Fail Safe: Power off unlocks the outside lever/trim.
• Key retracts latch for mechanical override.
• Free egress at all times from the inside.
• Less dogging for fire rated applications.

Arm Type Details

This model uses electrified ETP lever trim on the exterior. The lever provides keyed and electrified access, while the interior push bar always allows immediate egress regardless of whether the trim is locked or unlocked.

Included Components

The device includes the rim exit chassis, electrified ETP lever trim, and the required mounting hardware for standard rim installation on 33 to 36 inch wide doors.
