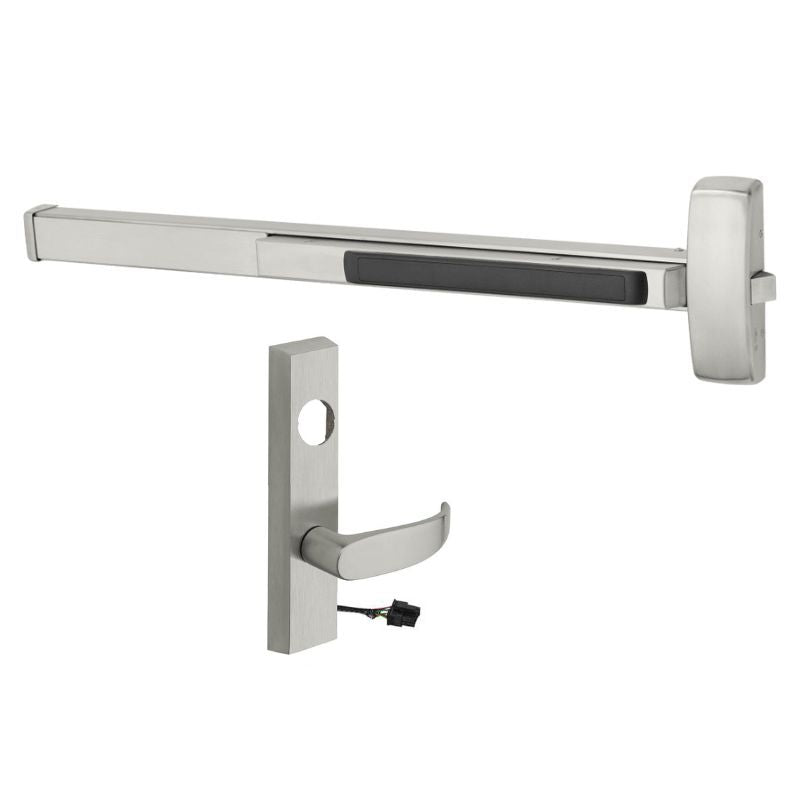

Sargent 12-8875-F-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-F-ETP-24V is a fire rated rim exit device built for secure, electrically controlled openings on doors measuring 33 to 36 inches wide. It combines the dependable 8800 Series exit device platform with electrified ETP lever trim operating on 24V, giving facility managers remote control over access without sacrificing egress safety. Configured as fail safe, the lever unlocks when power is removed, making it a strong choice for applications where free access is required during power loss. A key retracts the latch for mechanical override, and the fire rating means the device comes without dogging. It's a reliable solution for schools, healthcare, and commercial buildings needing controlled entry.

Features

• Fire rated rim exit device suitable for labeled door and frame assemblies.
• Electrified ETP lever trim operates on 24V for remote access control.
• Fail safe operation unlocks the outside lever when power is removed.
• Key retracts the latch for mechanical override from the outside.
• Sized for doors 33 to 36 inches in width.
• Supplied less dogging, as required for fire rated applications.
• Free egress is always available from the inside by pressing the push bar.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail safe configuration, the electrified ETP trim releases the outside lever whenever power is interrupted, allowing entry during a power failure or emergency. When energized, the lever is locked and access is controlled electrically, while a cylinder key always provides mechanical retraction of the latch.

• Fail Safe: Power off unlocks the lever.
• Key retracts latch.
• Less dogging (fire rated).

Arm Type Details

This device uses rim-mounted construction with ETP electrified lever trim on the outside. The push bar provides mechanical egress from the inside at all times, independent of the electrical state of the trim.
