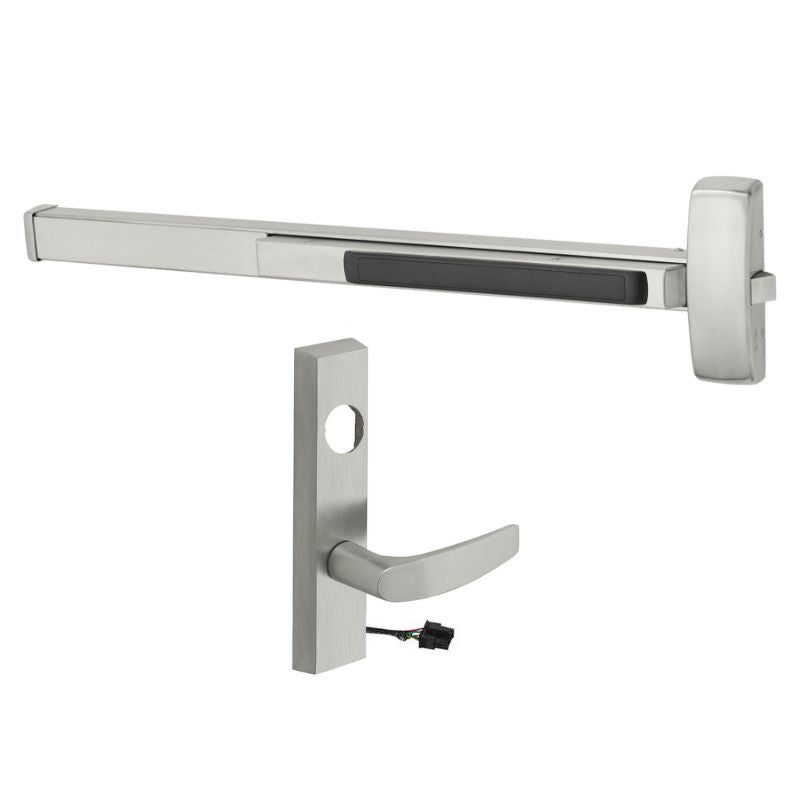

Sargent 12-8875-G-ETB-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-G-ETB-12V is a fire rated rim exit device built for wide openings measuring 43 to 48 inches. It pairs the durable 8800 series exit mechanism with the electrified ETB (G trim design) lever, operating on 12V DC in a fail safe configuration—power loss unlocks the outside lever for immediate egress and access during emergencies. The key-retractable latch provides reliable control, while the less dogging design maintains the device's fire rating by keeping the latch active at all times. This combination makes it a dependable choice for institutional, commercial, and access-controlled fire door applications where security and life safety must work together.

Features

• Fire rated rim exit device suitable for labeled fire door assemblies.
• Sized for doors measuring 43 to 48 inches in width.
• Electrified ETB trim with the G lever design for controlled outside access.
• Operates on 12V DC power for integration with access control systems.
• Fail safe function unlocks the outside lever when power is removed.
• Key retracts the latch for mechanical override.
• Less dogging to preserve the fire rating and keep the latch engaged.
• Rugged 8800 series construction built for high-traffic environments.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail safe configuration, the ETB electrified trim is energized to keep the outside lever locked. When power is interrupted, the lever automatically unlocks, allowing free access from the exterior. The exit device itself always permits free egress from the inside.

• Fail Safe: Power off unlocks the outside lever.
• Key outside retracts latch for mechanical access.
• Free egress at all times from the inside.

Arm Type Details

The ETB trim uses the G lever style, a return-to-door design that reduces the risk of catching on clothing or equipment. The lever operates the latch when energized or unlocked, providing smooth, controlled entry on access-controlled fire doors.
