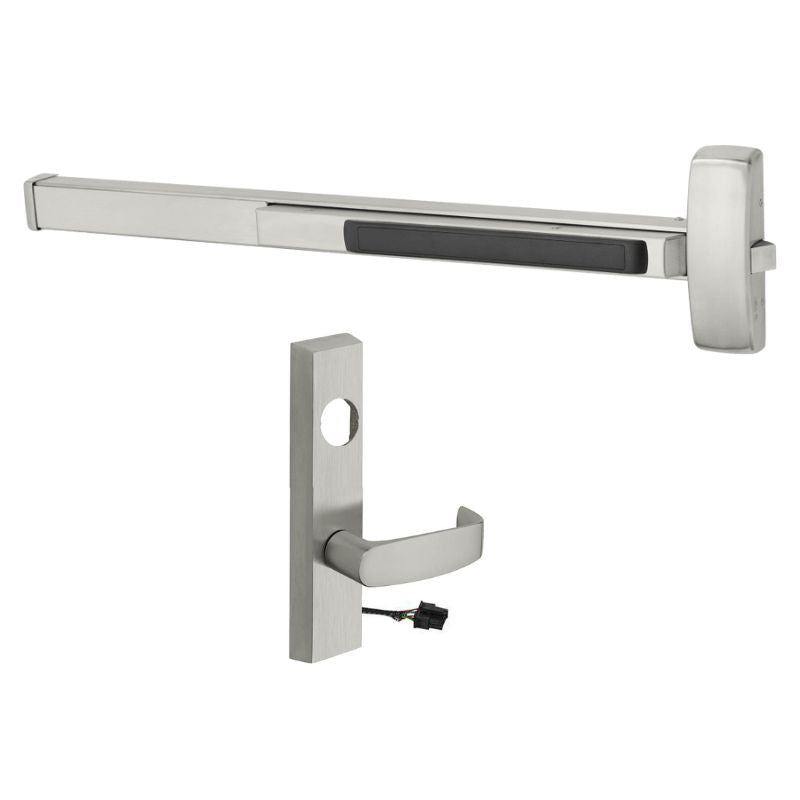

Sargent 12-8875-G-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-G-ETL-24V is a fire rated rim exit device built for wide openings measuring 43 to 48 inches in door width. It combines reliable panic egress with electrified trim control, operating on 24V power in a fail safe configuration so the lever unlocks when power is removed. The G lever design and key-retracts-latch function give both secure access control and convenient mechanical override. As a fire rated unit, it comes less dogging to maintain positive latching required for fire doors. This heavy-duty device suits commercial and institutional entrances where life safety, durability, and controlled access all matter.

Features

• Fire rated rim exit device designed for 43" to 48" door widths.
• Electrified ETL trim with G lever design for access control integration.
• 24V operation compatible with building power and controller systems.
• Fail safe mode unlocks the outside lever when power is removed.
• Key retracts latch for mechanical override and controlled entry.
• Less dogging to preserve positive latching on fire-rated openings.
• Grade 1 durability for high-traffic commercial applications.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In fail safe operation, the electrified trim releases the outside lever whenever power is cut, allowing free access during power loss while still permitting safe egress at all times from the inside. Applying 24V power locks the outside lever, and a key can always retract the latch.

• Fail safe: power off unlocks the lever.
• Key retracts latch.
• Less dogging for fire-rated applications.

Included Components

The device ships as a complete rim exit assembly with electrified G lever trim, mounting hardware, and strike for installation on fire rated openings within the specified door width range.
