Sargent 12-8875-J-ETB-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-J-ETB-12V is a fire rated rim exit device built for high-traffic openings that require electrified access control. Designed for doors ranging from 37" to 42" in width, this device pairs the dependable 8800 series rim mechanism with electrified ETB lever trim operating at 12 volts. It is configured fail safe, meaning the lever unlocks when power is removed to allow free egress and controlled entry. The J (ETB) trim includes a key cylinder that retracts the latch, while the fire rating ensures compliance on labeled openings where dogging is not permitted. It's a reliable choice for secured, code-compliant entrances.

Features

• Fire rated rim exit device suitable for labeled door and frame assemblies.
• Electrified ETB lever trim operates on 12V DC for integration with access control systems.
• Fail safe operation unlocks the outside lever when power is removed.
• Key cylinder retracts the latch for mechanical override and entry.
• Sized for wider openings measuring 37" to 42" in door width.
• Less dogging, as required for fire rated applications.
• Grade 1 construction engineered for durability in commercial settings.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail safe configuration, the electrified trim is energized to stay locked. When power is interrupted, the outside lever unlocks automatically, permitting entry during a power loss while the inside push bar always allows free egress.

• Fail Safe (power off unlocks lever)
• Key retracts latch
• Less dogging for fire rated applications

Arm Type Details

The ETB trim is a lever-style exit device trim with an electrified solenoid built into the escutcheon. The lever controls the latch for entry, while the key cylinder provides mechanical latch retraction when needed.

Included Components

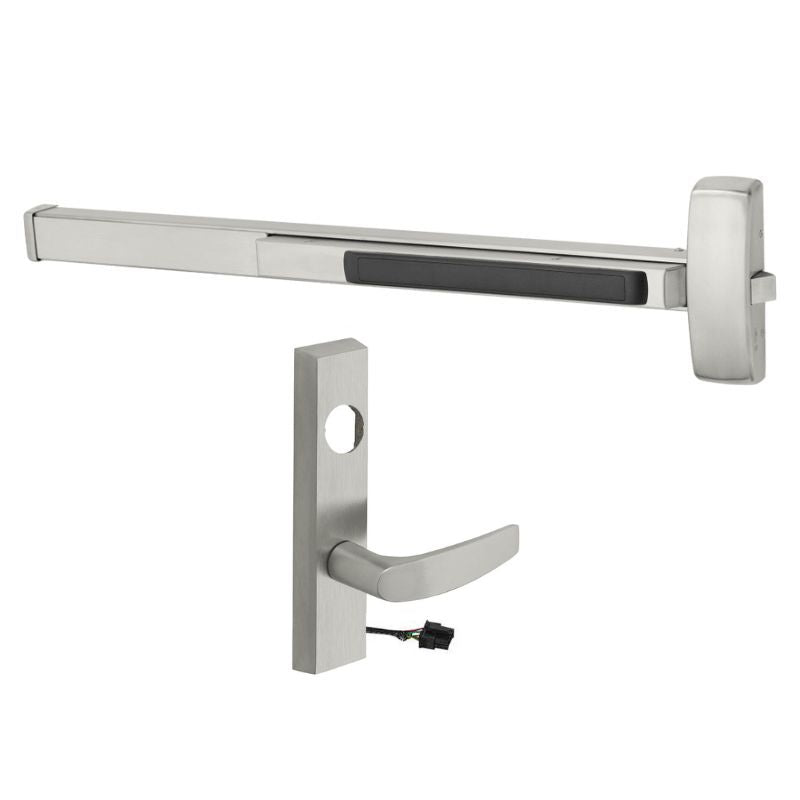

Package includes the 8800 series fire rated rim exit device chassis and the electrified ETB lever trim with key cylinder provision (cylinder typically ordered separately).
