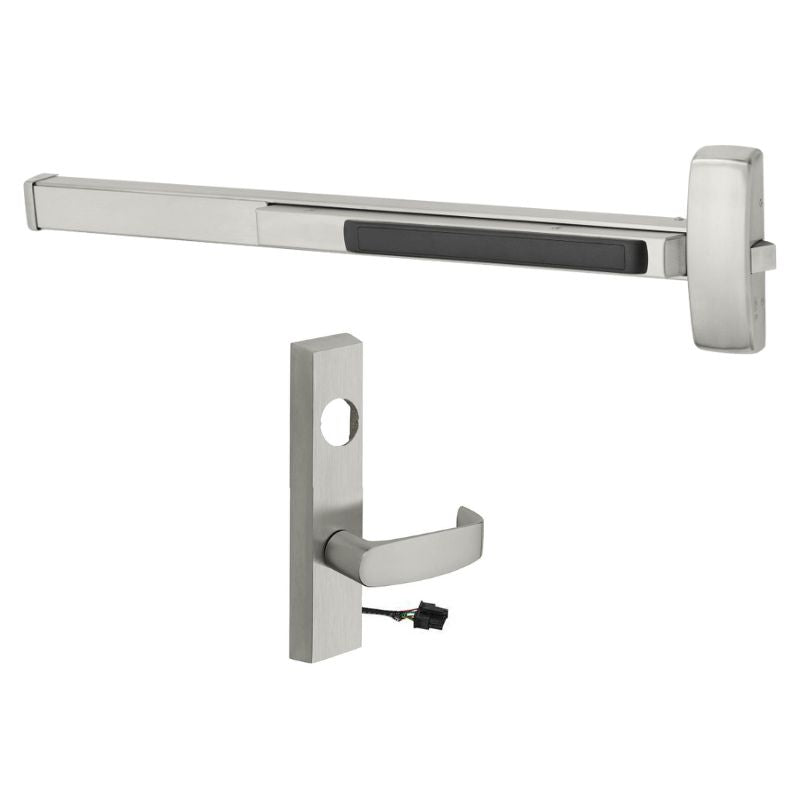

Sargent 12-8875-J-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-J-ETL-24V is a fire rated rim exit device built for wide openings measuring 37" to 42". This unit combines reliable panic exit functionality with a 24V electrified ETL lever trim, giving facility managers precise control over access while maintaining code compliance on fire doors. Configured as fail safe, the trim unlocks automatically when power is removed, making it a practical choice for egress routes and secured corridors. The L (ETL) trim offers key-retractable latch operation, and as a fire rated device it ships less dogging to preserve positive latching. Ideal for commercial, institutional, and healthcare applications where dependable security and life safety matter.

Features

• Fire rated rim exit device suitable for labeled door and frame assemblies.
• Sized for wide doors between 37" and 42" in width.
• Electrified ETL (L) lever trim operating on 24V DC.
• Fail safe operation unlocks the lever when power is removed.
• Key retracts the latch for controlled entry from the exterior.
• Furnished less dogging to maintain required positive latching on fire doors.
• Grade 1 construction engineered for high-traffic commercial use.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In a fail safe configuration, the electrified trim is held locked while energized and releases the lever when power is cut, allowing free access during a power loss or alarm condition. The key cylinder provides latch retraction for authorized entry at any time.

• Fail safe: power off unlocks the lever.
• Key retracts latch for outside entry.
• Electrically controlled outside trim.

Arm Type Details

This device uses the L (ETL) escutcheon lever trim. The lever remains rigid when locked and allows access when energized or unlocked, while free egress is always available from the push-pad side of the device.

Included Components

The device ships with the rim exit chassis, L (ETL) electrified lever trim, mounting hardware, and strike for standard installation on fire rated openings.
