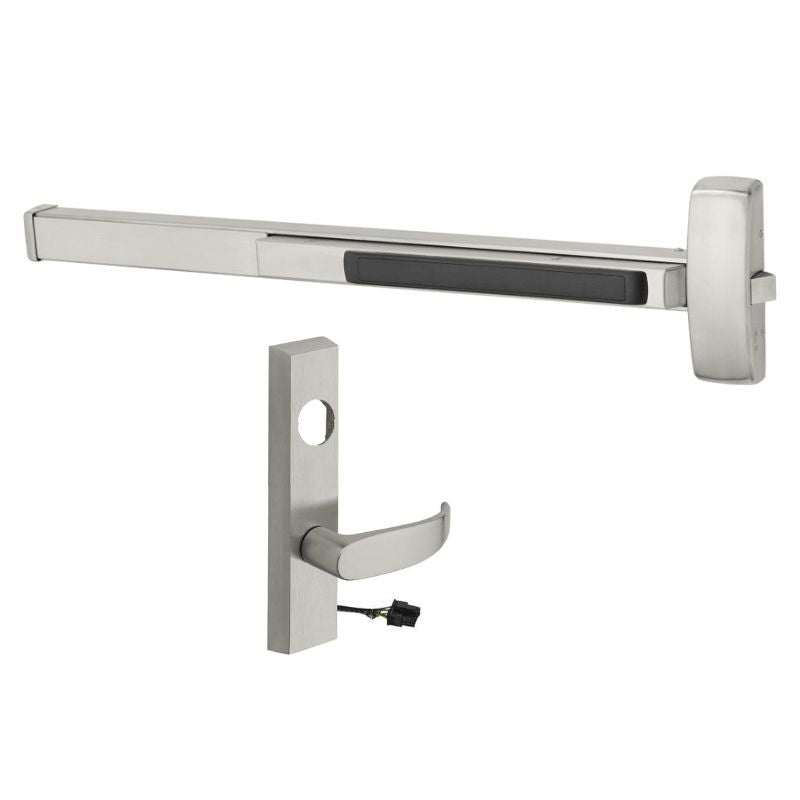

Sargent 12-8875-J-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 12-8875-J-ETP-12V is a fire rated rim exit device engineered for secure, code-compliant egress on wide openings measuring 37 to 42 inches. Built around the dependable 8800 Series platform, it pairs electrified ETP lever trim with a 12-volt fail safe design, so the lever unlocks for entry whenever power is removed. The J (ETJ) trim style provides a clean, durable grip for everyday access, while a key retracts the latch for mechanical override. As a fire rated unit, it is supplied less dogging to maintain proper latching under fire conditions, making it a strong choice for exterior and fire-rated interior doors in commercial buildings.

Features

• Fire rated rim exit device suitable for labeled door and frame assemblies.
• Fits door widths from 37 to 42 inches for wide openings.
• Electrified ETP lever trim with 12V operation for access control integration.
• Fail safe function unlocks the outside lever when power is removed.
• Key retracts latch for mechanical override from the exterior.
• Supplied less dogging as required for fire rated applications.
• Rugged construction built for high-traffic commercial environments.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In a fail safe (power off unlocks) configuration, the outside ETP lever is locked when energized and becomes unlocked when power is interrupted, allowing free entry during a power loss. Free egress from the inside is always available by pressing the push bar.

• Fail Safe: Power off unlocks the lever trim.
• Key retracts the latch for mechanical access.
• Free egress at all times via the exit device push rail.

Arm Type Details

The ETP trim designation refers to Sargent's electrified lever trim prepared for an electric latch/lever control. The J (ETJ) lever style offers a comfortable, ADA-friendly grip, and the electrified trim allows the lever to be locked or unlocked electrically for integration with access control systems.

Included Components

Ships as a complete rim exit device assembly with the electrified ETP lever trim, push rail mechanism, and mounting hardware. Power supply and transfer hardware are ordered separately as needed.
