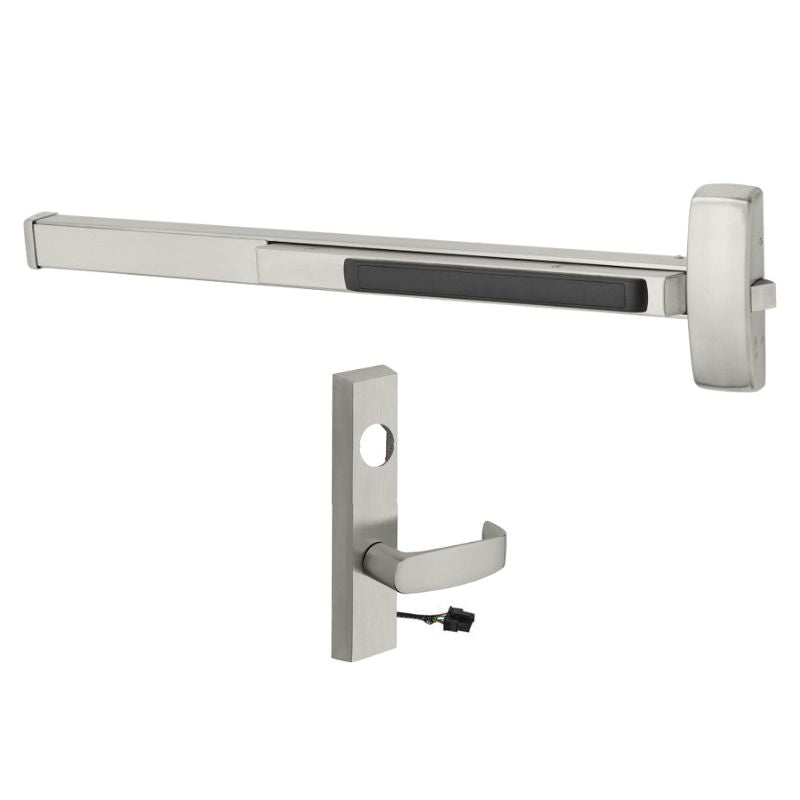

Sargent 12-8876-E-ETL-24V Fire Rated Rim Exit Device, For 24-32 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876EETL24VUS32DLHR
Sargent 12-8876-E-ETL-24V-US32D
Sargent 12-8876-E-ETL-24V-US10B
Sargent 12-8876-E-ETL-24V-US32D
Sargent 12-8876-E-ETL-24V-US10B
All SARGENT Products

Sargent 12-8876-E-ETL-24V Fire Rated Rim Exit Device, For 24-32 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876EETL24VUS32DLHR
$1,955.46/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-8876-E-ETL-24V Fire Rated ...
Quantity
–
+
From $1,955.46
Sargent 34 LA KD Rim Cylinder - LA Ke...
Quantity
–
+
From $111.56
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $379.38
Total

Sargent 12-8876-E-ETL-24V Fire Rated Rim Exit Device, 12V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 24-32 Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 12-8876-E-ETL-24V Fire Rated Rim Exit Device is designed for use on 24-32 inch doors and features a 12V Fail Secure mechanism, L-Lever, and power-off unlocking of the lever. This Grade 1 device does not include a cylinder or dogging.

76 Electrified ET Trim - Fail Secure
776-8-ETL-24V-LC Electrified Lever Trim, ETL Trim, 24V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
Manufacturer Sargent
SKU 12-8876E
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes


Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 32"
Hand LHR or RHR
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Keyed Electric Lever
Trim Part No. 776-8 ETL 24V
Includes Cylinder(s) No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 24" to 32"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Product Type Rim Exit Devices
