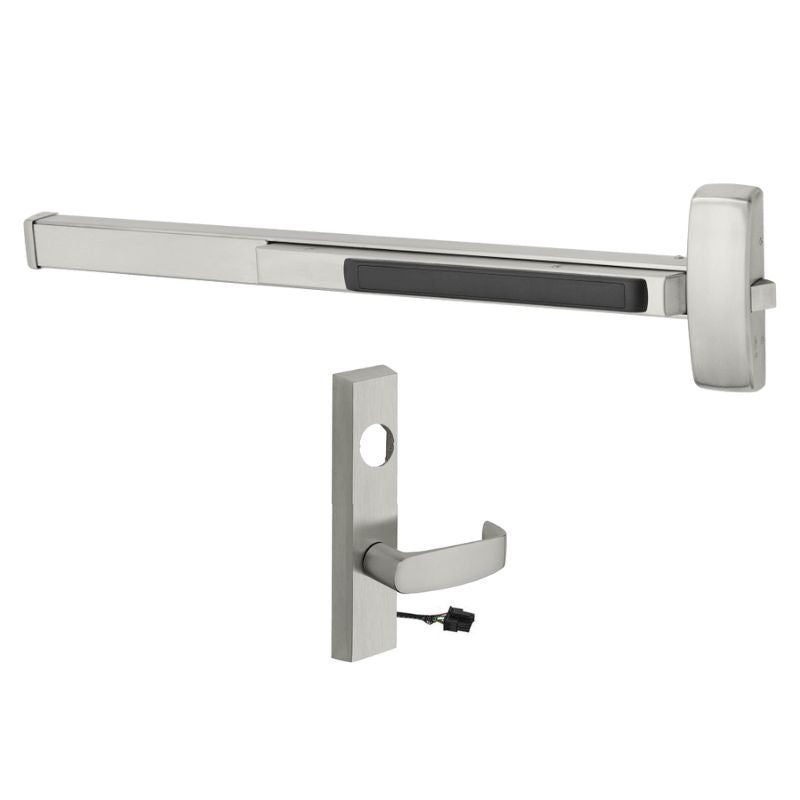

Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device, For 33-36 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876FETL12VUS32DLHR

Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device, For 33-36 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876FETL12VUS32DLHR
Sale price$1,856.36/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-8876-F-ETL-12V Fire Rated ...
Quantity
+
Sale priceFrom $1,856.36
Sargent 34 LA KD Rim Cylinder - LA Ke...
Quantity
+
Sale priceFrom $111.56
Total

Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device, 12V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 33-36 Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device is designed for use on 33-36 inch doors and features a 12V Fail Secure mechanism and L-Lever. With power off, the lever unlocks and the key retracts the latch, providing a Grade 1 level of security. This device does not include a cylinder or dogging option.

76 Electrified ET Trim - Fail Secure
Power Off, Locks Lever, Key Retracts Latch #34 Cylinder Supplied

8800 Series Rim Exit Devices

The 8800 series is designed for standard-width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

  • Single-point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No


Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length  36"
Hand RHR OR LHR
Dogging Options Less Dogging
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) Yes
Cylinder Type LA Keyway Standard
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 33" to 36"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices

Panic Handing Chart
