Description

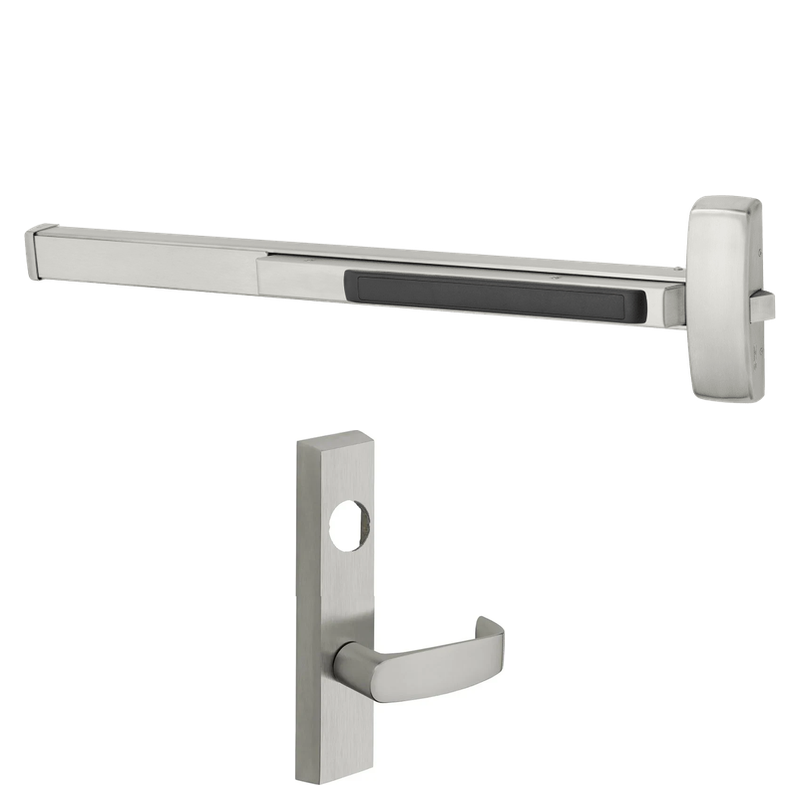

Sargent 12-8876-G-ETL-12V Fire Rated Electrified Rim Exit Device, Fail Secure, For 43-48" Door Widths, LC / KD Core Options
The Sargent 12-8876-G-ETL-12V fire rated electrified rim exit device fits 43-48" door widths and uses 12V fail secure trim. Power off locks the outside lever; the key retracts the latch. Cylinder supply depends on the selected Core option: LC - Less Cylinder; KD - LA Keyway Keyed Different 2 Keys. Select the Core option required.
76 Electrified ET Trim - Fail Secure
776-8-ETL-12V-LC Electrified Lever Trim, ETL Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Cylinder configuration depends on selected Core option
8800 Series Rim Exit Devices
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Core options: LC - Less Cylinder; KD - LA Keyway Keyed Different 2 Keys. Select the Core option required.
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 48" |
| Hand | RHR OR LHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | LC: No; KD: LA keyway cylinder, keyed different, 2 keys |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
