Sargent 12-8888-E Fire Rated Rim Exit Device, Multi-Function, Exit Only, For 24"-32" Dr Width

  • SKU: 128888EUS32D
Sargent 12-8888-E-US32D

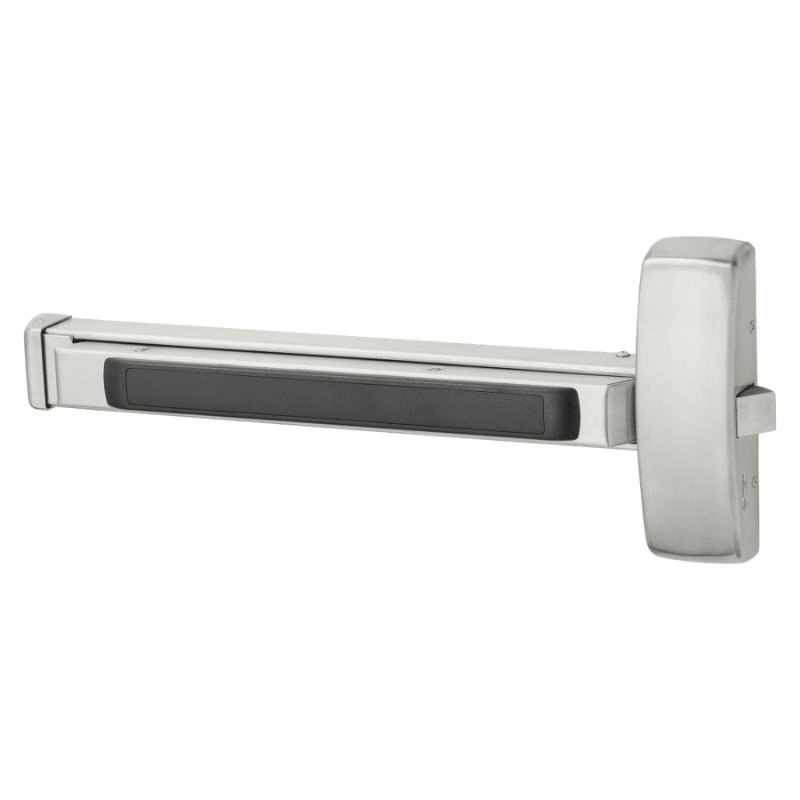

Sargent 12-8888-E-US32D
How it Works - The Sargent 8888 Reversible Multi-Function Rim Exit Device►

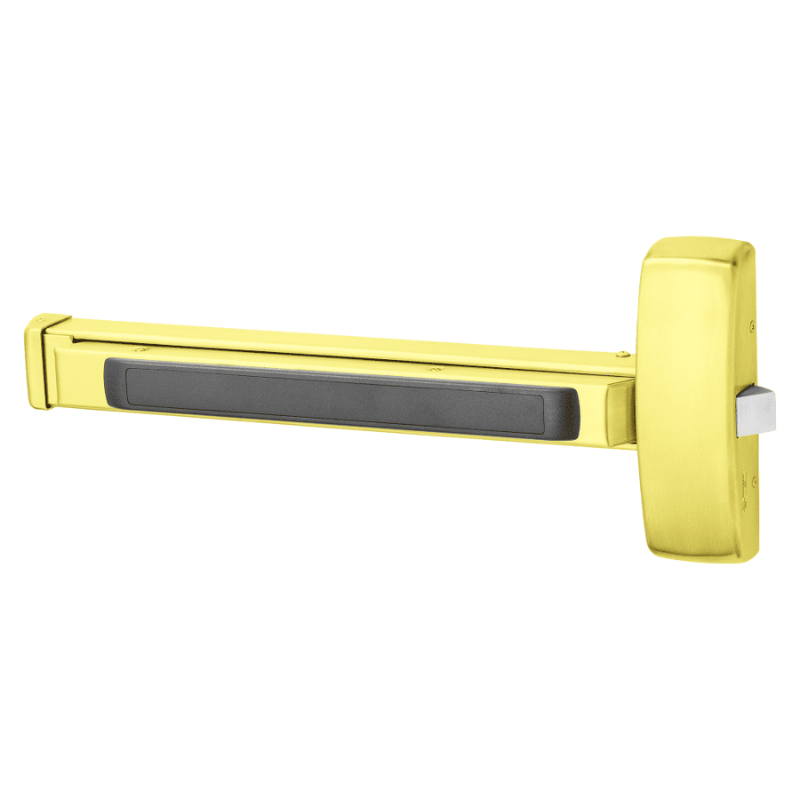

Sargent 12-8888-E-US3
Sargent 12-8888-E-US4

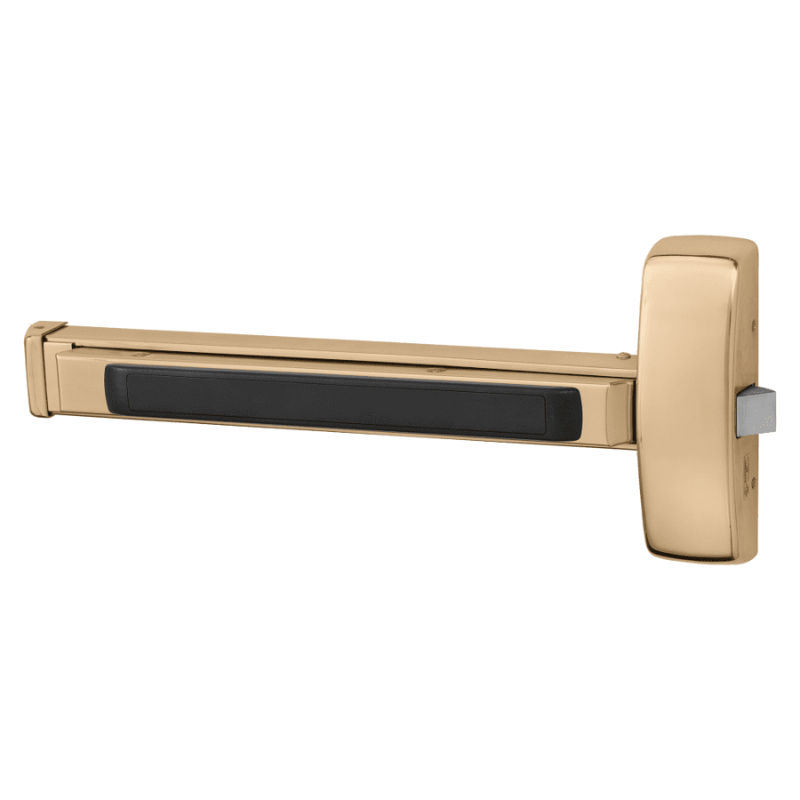

Sargent 12-8888-E-US10

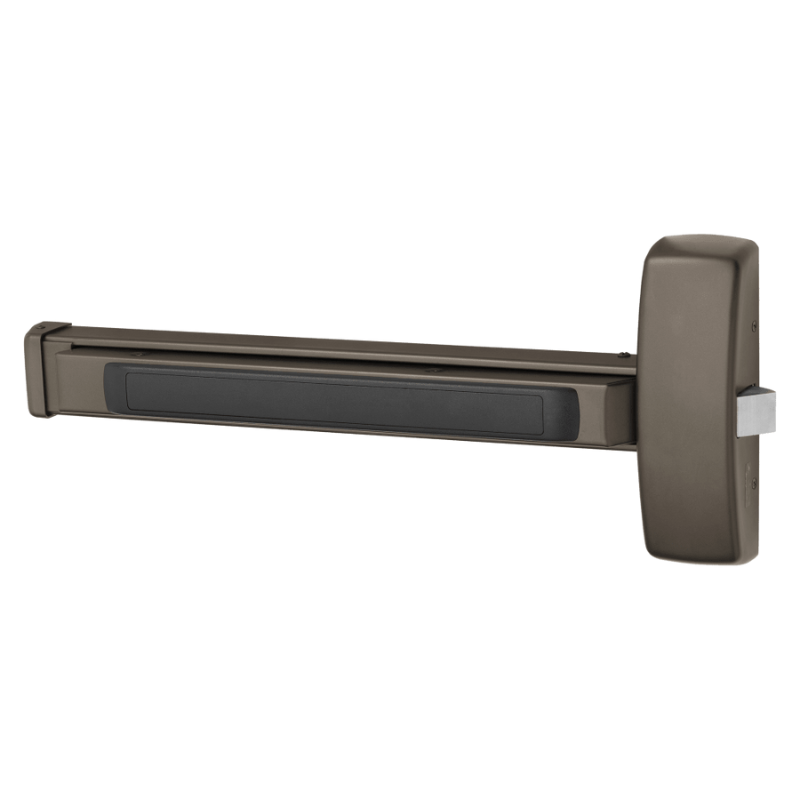

Sargent 12-8888-E-US10B
Sargent 12-8888-E-US10BE

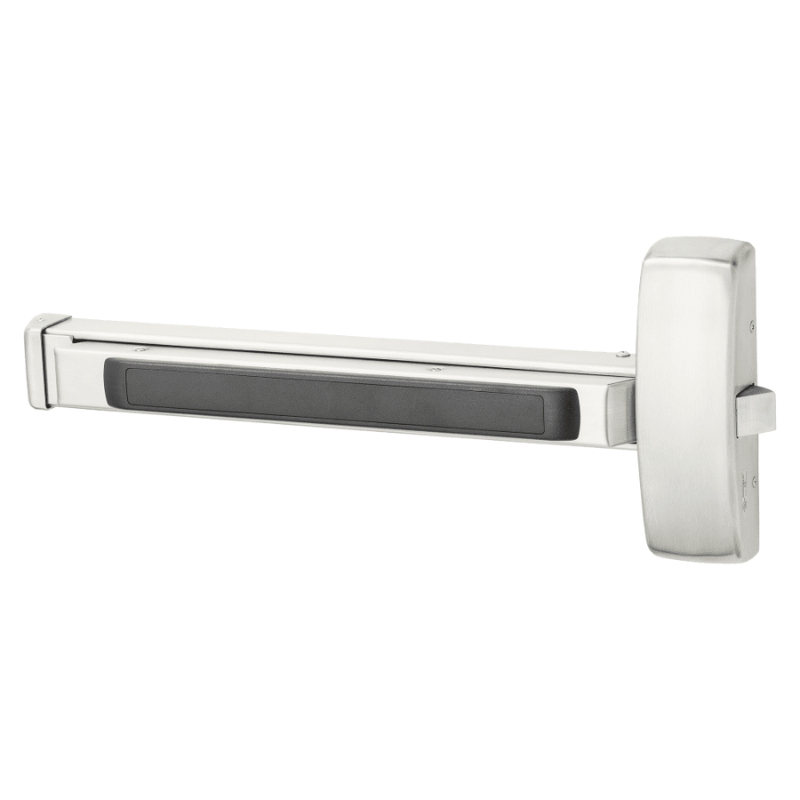

Sargent 12-8888-E-US32

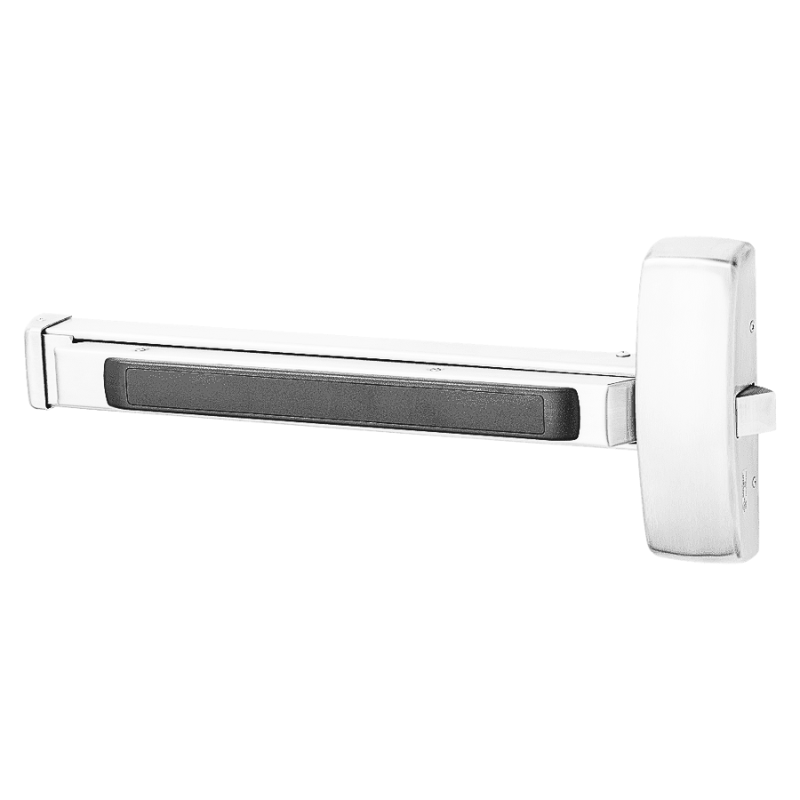

Sargent 12-8888-E-WSP
Sargent 12-8888-E-BSP
All SARGENT Products

Sargent 12-8888-E Fire Rated Rim Exit Device, Multi-Function, Exit Only, For 24"-32" Dr Width

  • SKU: 128888EUS32D
  • ✓
    Available (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,195.28/ea
Finish: US32D-630 Satin Stainless Steel

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8888-E Fire Rated Rim Exit...
Quantity
–
+
From $1,195.28
Sargent ETL Trims For Sargent 8500, 8...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Sargent M56A-E Electric Latch Retract...
Quantity
–
+
$578.61
Total

Sargent 12-8888-E Fire Rated Rim Exit Device, Multi-Function, 24"-32" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1, Trim Sold Separatly

The Sargent 12-8888-E Reversible Fire Rated Rim Exit Device is a 24-32" Bar, Multi-Function, Grade One Surface Mounted Fire Rated Panic Bar. The Sargent 8888 Is Non-Handed Seven Functions Determined By The Function Of The Trim.

Multi-Function Device: Trims decisions determine the function of the device;

704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)

Features: Sargent 8888 Rim Exit Device

  • Non-handed
  • Single and double door applications
  • Device & trim sold separately; easy to mix and match
  • 3 available trim designs; trim is field reversible


Compatible Panic Trims - Sold Separately

Manufacturer Sargent
SKU 12-8888E
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No

Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Various Trim
Device Length 32"
Hand Non-Handed
Dogging Options Less Dogging
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 24" to 32"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
