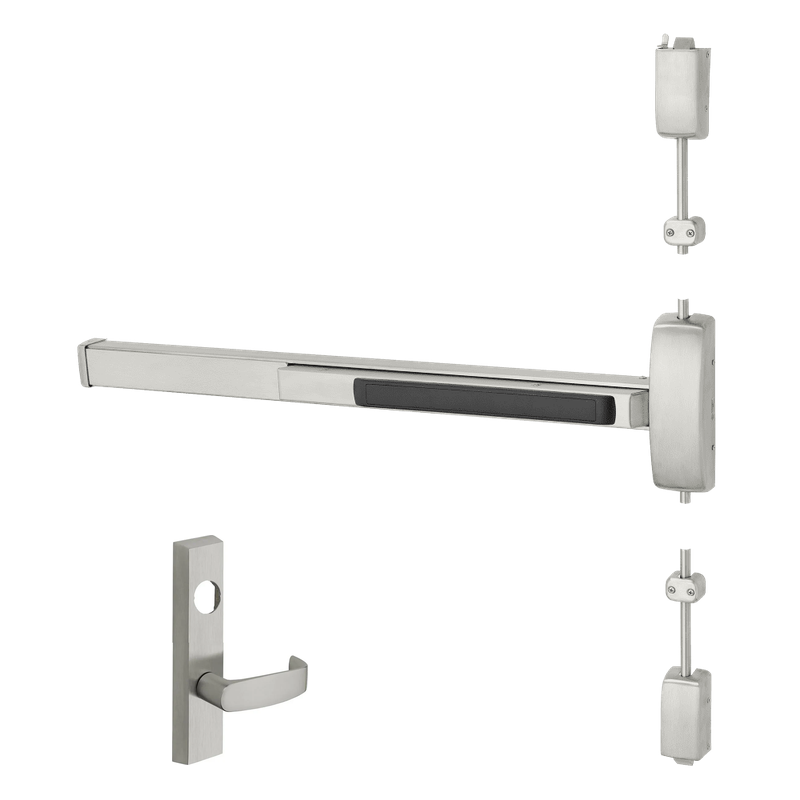

Sargent 12-LC-8706-G-ETL-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent 12-LC-8706-G-ETL-84 is a fire rated surface vertical rod exit device engineered for demanding commercial openings. Built for doors measuring 43 to 48 inches wide and up to 84 inches tall, this device delivers reliable panic hardware performance with storeroom (ETL) outside trim function. The 8700 Series is known for heavy-duty construction and dependable latching through its top and bottom surface-mounted vertical rods. Supplied less cylinder, it allows integration with your preferred keying system. The G trim offers a comfortable lever design suited to high-traffic entrances where security and life safety requirements must both be met.

Features

• Fire rated surface vertical rod exit device from the Sargent 8700 Series for life safety compliance.
• Sized for doors 43 to 48 inches wide and up to 84 inches tall.
• Storeroom (ETL) outside trim keeps the lever locked until unlocked by key.
• Supplied less cylinder for flexible keying integration.
• Top and bottom vertical rods provide secure two-point latching.
• G design lever trim delivers ergonomic, durable operation.
• Heavy-duty construction built for high-traffic commercial use.

Functional Details

The ETL storeroom function keeps the outside lever continuously locked, requiring a key to retract the latch and gain entry. The latch returns to the locked state automatically after each use, while free egress is always available from the inside by pushing the touchbar.

• Outside lever is always locked.
• Key retracts latch for entry.
• Latch is automatically deadlocking.
• Free egress at all times from the inside.

Arm Type Details

This device uses surface-mounted vertical rods that run along the face of the door to top and bottom latch points. When the touchbar is depressed, both rods retract simultaneously, releasing the door for exit, then automatically re-latch when the door closes.

Included Components

The device ships with the exit device chassis, G design lever trim, top and bottom surface vertical rods, and mounting hardware. A cylinder is not included and must be ordered separately.
