Sargent 12-LC-8706-J-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-J-ETL-96 is a heavy-duty fire rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Designed for doors measuring 37" to 42" wide and up to 96" in height, it provides reliable panic egress combined with secure storeroom control through the ET trim. The 8706 function features the J escutcheon lever trim and ships less cylinder (LC), allowing you to match your existing keying system. Built to Grade 1 standards and UL fire rated, this device delivers durability and code compliance for high-traffic environments where safety and long-term performance matter most.

Features

• Surface-mounted vertical rod design for both top and bottom latching on fire rated openings.
• 8706 storeroom function provides secured outside access while maintaining free egress.
• Sized for doors 37" to 42" wide and up to 96" in height.
• Less cylinder (LC) configuration lets you integrate the device into an existing keying system.
• J escutcheon lever trim (ET) offers a clean, durable appearance.
• UL fire rated for use on labeled fire doors.
• Grade 1 construction built for heavy commercial use.

Functional Details

The 8706 storeroom function keeps the outside lever always locked, requiring a key for entry while the push bar allows unrestricted egress at all times. This makes it ideal for storerooms and secured areas where controlled access is required.

• Outside trim is always locked.
• Key retracts latch for entry.
• Free egress at all times by pushing the touch bar.
• Key cannot be removed unless the latch is projected (locked).

Arm Type Details

This is a surface vertical rod device, meaning the latching rods are mounted on the surface of the door and engage strikes at both the top of the frame and the threshold. This two-point latching provides added security and stability on tall fire rated doors.

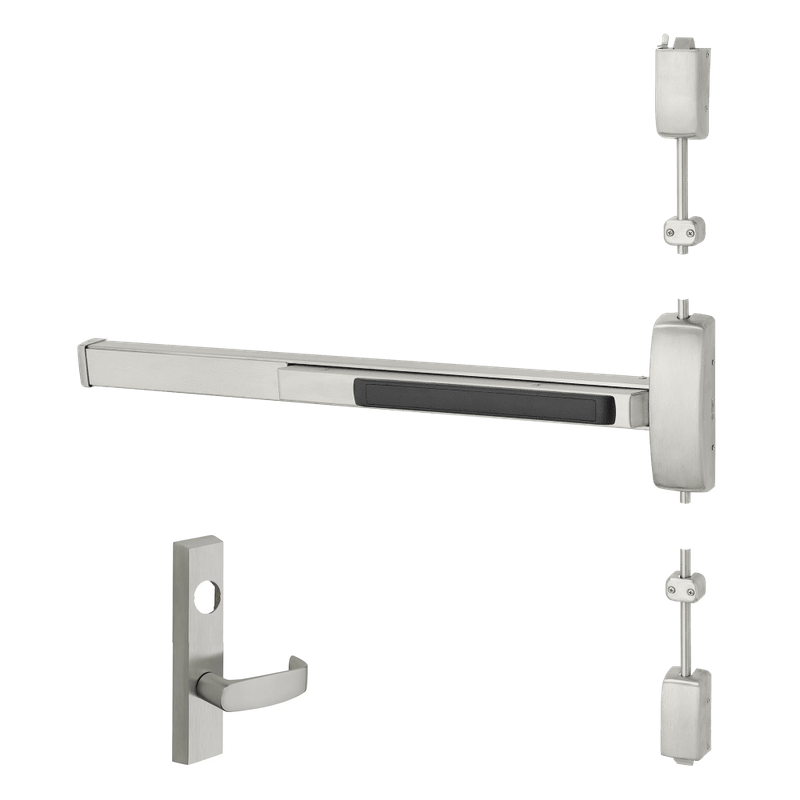

Included Components

The device includes the surface vertical rod exit chassis, top and bottom latch mechanisms, mounting hardware, and the J escutcheon lever trim. A cylinder is not included and must be ordered separately.
