Sargent 12-NB-8710-E-96 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 94" Dr Height, 24"-32" Dr Widths

  • SKU: 12NB8710E96US10BRHR
$1,785.56/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US10B Oxidized Dull Bronze (613)
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-NB-8710-E-96 Fire Rated Su...
Quantity
–
+
From $1,678.25
Sargent 710-ETL Dummy Lever Trim Non ...
Quantity
–
+
From $503.50
Total

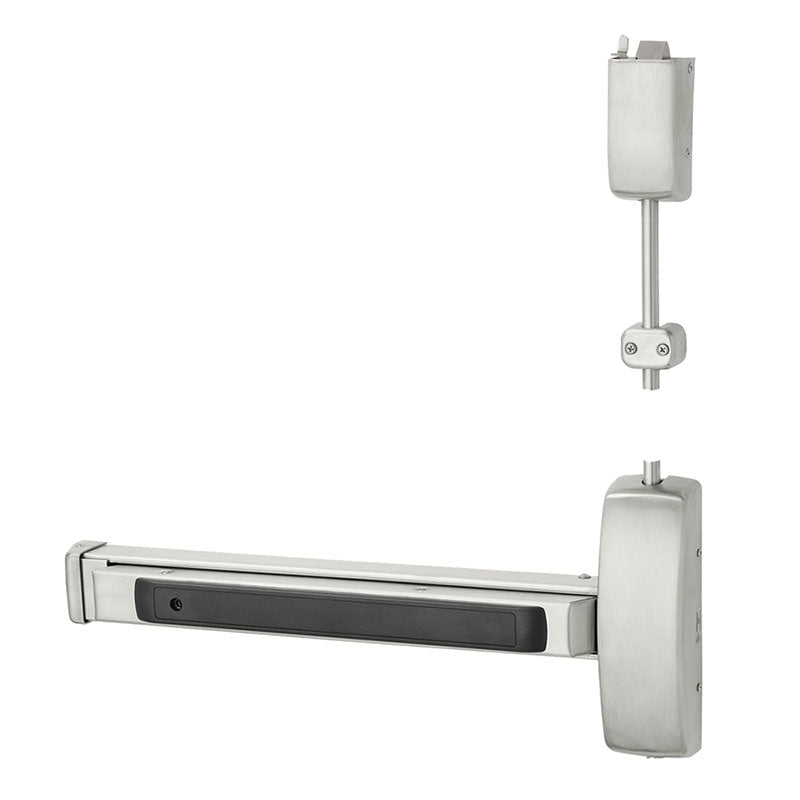

The Sargent 12-NB-8710-E-96 is a 32" Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device that is Exit Only (No outside operation); the NB-8710-96 has a 96" Dr Height,  high single point top latching, for  24"-32" door widths, rail (E comes 32" can can be cut down to 24") and comes In US32D/630 Satin Stainless Steel And US10B/613 Oil Rubbed Bronze Finish options.

Features
 • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel


Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 32"
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3 1/2"
Door Material Metal or Wood
Door Width 24" - 32"
Door Height 96"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices
