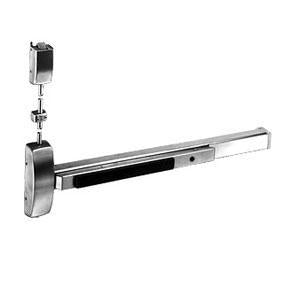

Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

SKU: 12NB8710G84US32DLHR

All SARGENT Products

Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

SKU: 12NB8710G84US32DLHR

$1,698.34/ea

Available (1‑2 Weeks)

1-2 Weeks Lead Time

Choose your options

Finish: US32D Satin Stainless Steel (630)

Handing: LHR - Left Hand Reverse

Variant

Quantity:

Qty

Send2Mobile

Buy Complete Door Hardware Set

Sargent 12-NB-8710-G-84 Fire Rated Su...

Quantity

–

+

From $1,698.34

Sargent 710-ETL Dummy Lever Trim Non ...

Quantity

–

+

From $503.50

Total

Description
Product Specs
Technical Specs
Document Center
Handing Chart

Description

The Sargent 12-NB-8710-G-84 Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation). It is for an 84" Door Height, single-point top latching, For 43"-48" Door widths, rail (G 48" can be cut down to 43") and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Exit Only
Device Length	48"
Mechanical Options	Less Bottom Rod
Top Strike	646
Includes Trim	No
Trim Type	Less Trim
Includes Cylinder(s)	No
Cylinder Type	Non-Keyed
Minimum Stile Size	3 1/2"
Door Material	Metal or Wood
Door Width	43" - 48"
Door Height	84"
Door Thickness	1 3/4" to 2 1/4"
Fire Rated	Yes
Reversible	No
Product Type	Surface Vertical Rod Exit Devices
