Description

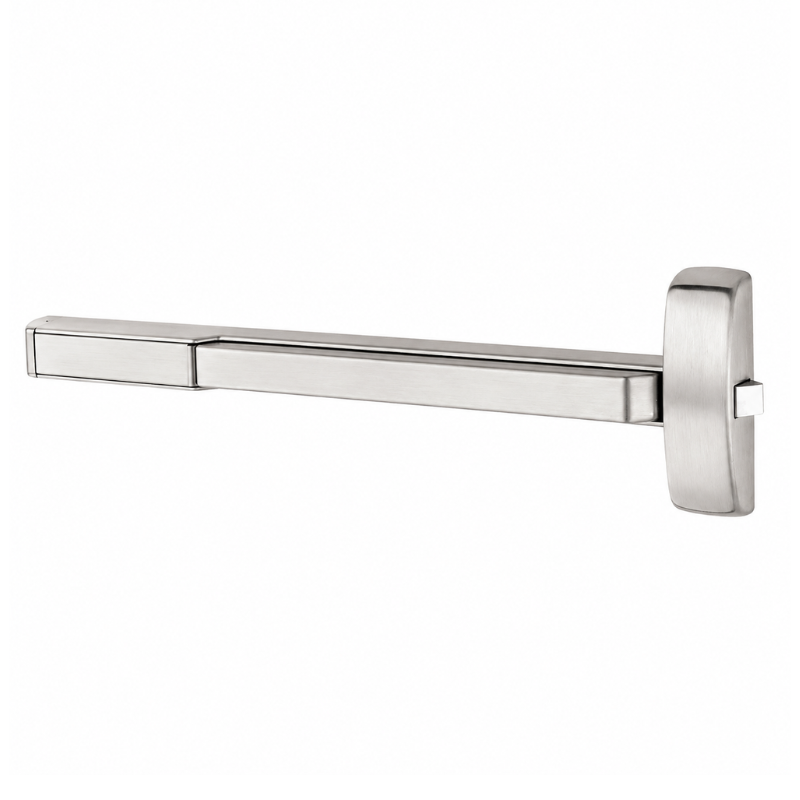

Sargent 12-PE8888-E Fire Rated Wide Stile Rim Exit Device, Multi-Function, Exit Only, 26"-32" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1
The Sargent PE8888-E is a grade 1 exit device with a wide stile pushpad and a field reversible design. It features a multi-function rim exit device, exit only function, and hex key dogging. This device is designed for doors measuring between 24"-32"wide.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specs
| Manufacturer | Sargent |
| SKU | 12-PE8888E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Multi-Function |
| Device Length | 32" |
| Mechanical Options | Fire Rated |
| Dogging Options | Less Dogging |
| Includes Trim | No |
| Trim Type | Less Trim |
| Door Material | Wood, Metal, Aluminum |
| Door Width | 32" |
| Door Thickness | 1-3/4" |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
