Description

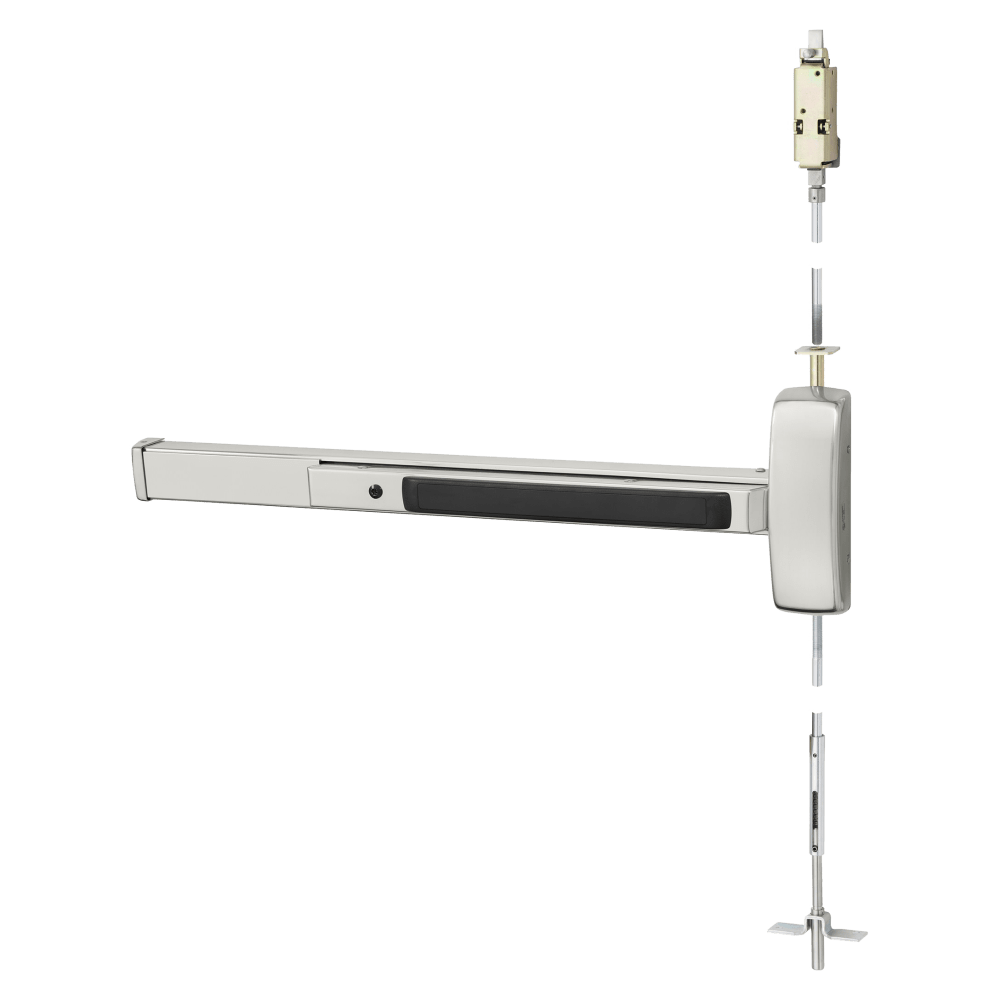

Sargent 12-WD8613G-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Classroom Function, For 43-48 Inch Door, 84 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
This Sargent fire-rated exit device provides institutional-grade emergency egress control with concealed vertical rod construction built to Grade 1 specifications. Engineered for classroom environments, it accommodates 43-48 inch doors at 84 inch heights with a wide stile pushpad optimized for rapid occupant evacuation during emergencies. The non-dogging mechanism preserves access control integrity while meeting fire safety mandates. Finished in satin stainless steel for superior corrosion resistance and durability, this device ensures reliable performance and professional appearance in high-traffic educational facilities, delivering consistent functionality throughout its extended service life.
Features
- Designed for standard width stileĀ applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| ManufacturerĀ | Sargent |
| SKU | 12-WD8613G-84-US32D |
| Grade | Grade 1Ā |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile PushpadĀ |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
48" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Classroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
43" to 48" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
