Description

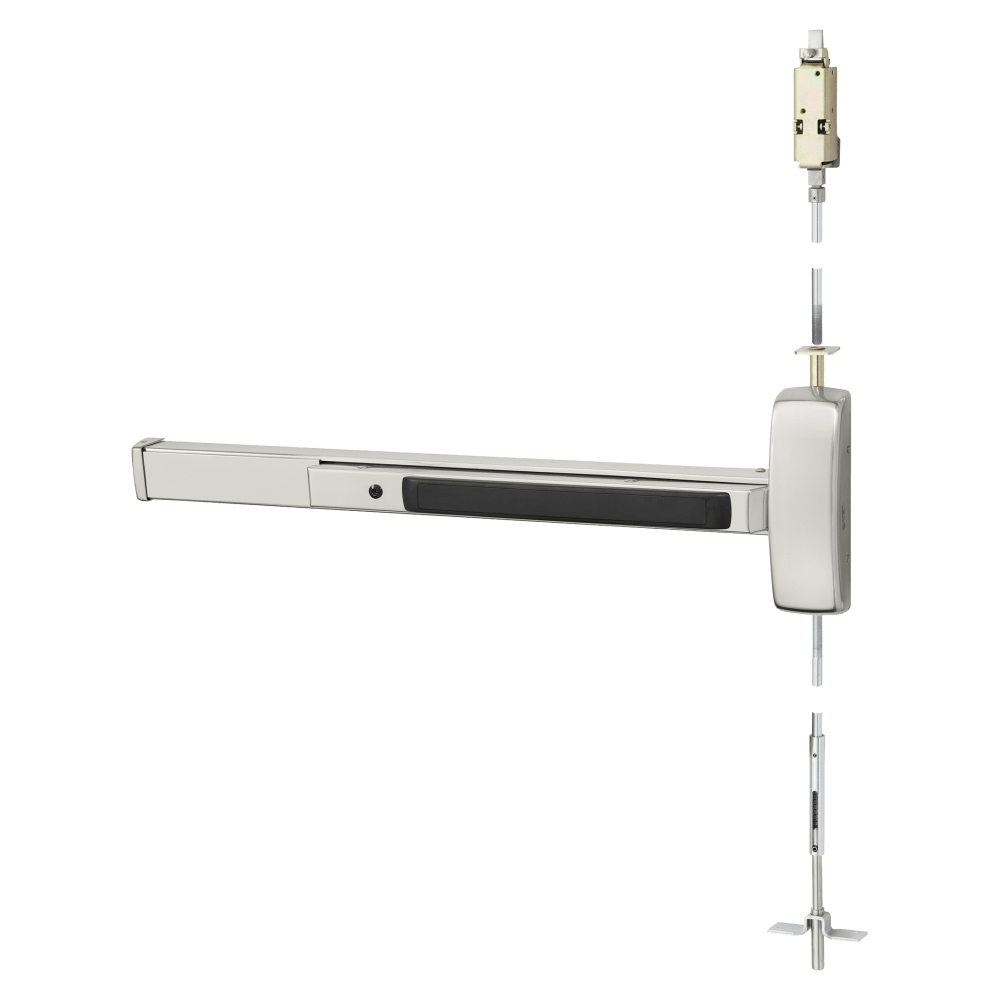

Sargent 12-WD8615F-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Passage Function, For 33-36 Inch Door, 84 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
Industrial-strength fire-rated exit device engineered for critical safety applications in commercial properties. This concealed vertical rod system is purpose-built for 33-36 inch doors reaching 86 inches in height, featuring a wide stile pushpad and passage function that facilitates smooth daily traffic while maintaining emergency egress capability. Grade 1 certification validates compliance with stringent fire codes and safety regulations. The satin stainless steel finish delivers exceptional corrosion resistance and a refined appearance suitable for professional environments. Configured without dogging to enforce access control protocols while preserving rapid evacuation functionality. Specified by architects and safety engineers for hospitals, corporate offices, and institutional facilities.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8615F-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
