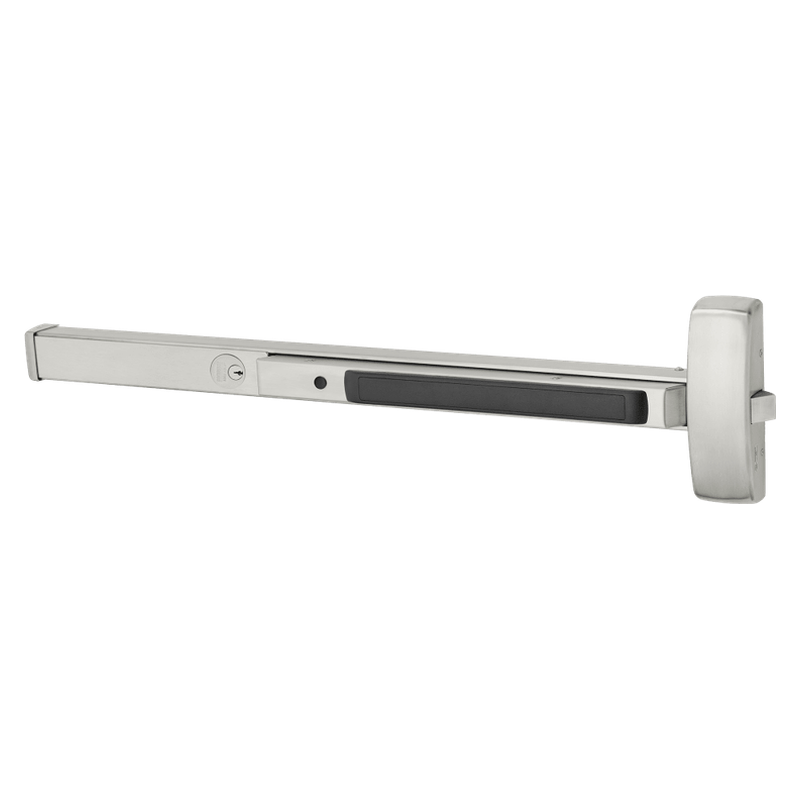

Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging

  • SKU: 16438810FUS32DKD
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging

  • SKU: 16438810FUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,286.30/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 16-43-8810-F Rim Exit Device,...
Quantity
–
+
From $1,220.82
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 16-43-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, 33-36 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

The Sargent 16-43-8810-F Rim Exit Device delivers dependable Grade 1 performance for medium to high-traffic commercial openings. Designed for doors measuring 33 to 36 inches wide, this exit-only device operates without external trim and features a clean flush end cap for a streamlined appearance. The multi-function design offers flexible installation, while cylinder dogging lets authorized users hold the pushpad retracted for push-pull operation during peak hours. Field reversible construction simplifies handing in the field, and the rim-mounted latch provides straightforward surface installation. Built to meet the demands of code-compliant egress applications, this Sargent device combines durability, versatility, and ease of use for a wide range of commercial door environments.

Features

  • Rim exit device engineered for 33 to 36 inch wide doors.
  • Exit-only configuration operates without external trim.
  • Flush end cap provides a clean, low-profile finished look.
  • Cylinder dogging allows the pushpad to be held retracted for latch-free operation.
  • Field reversible design accommodates either hand without additional parts.
  • Grade 1 rated for heavy commercial duty and long service life.
  • Multi-function platform supports flexible application requirements.

Functional Details

The cylinder dogging function uses a keyed cylinder to mechanically retract and hold the latch, enabling free push-pull operation during authorized hours and restoring latching when disengaged.

  • Exit only, less trim.
  • Cylinder dogging.
  • Field reversible.
Manufacturer Sargent
SKU 16-43-8810-F
Grade Grade 1
Device Type Rim Exit Device
Function Exit Only, Less Trim
Dogging Cylinder Dogging
End Cap Flush End Cap
Handing Field Reversible
Unit of Measure Each
Origin USA
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 33 to 36 inches
Mounting Type Rim (surface mounted)
Device Series 8800 Series
Latch Type Rim latch
Dogging Type Cylinder
Trim Less Trim (none)
End Cap Style Flush
Configuration Exit Only
Reversibility Field Reversible
ANSI/BHMA Grade Grade 1
