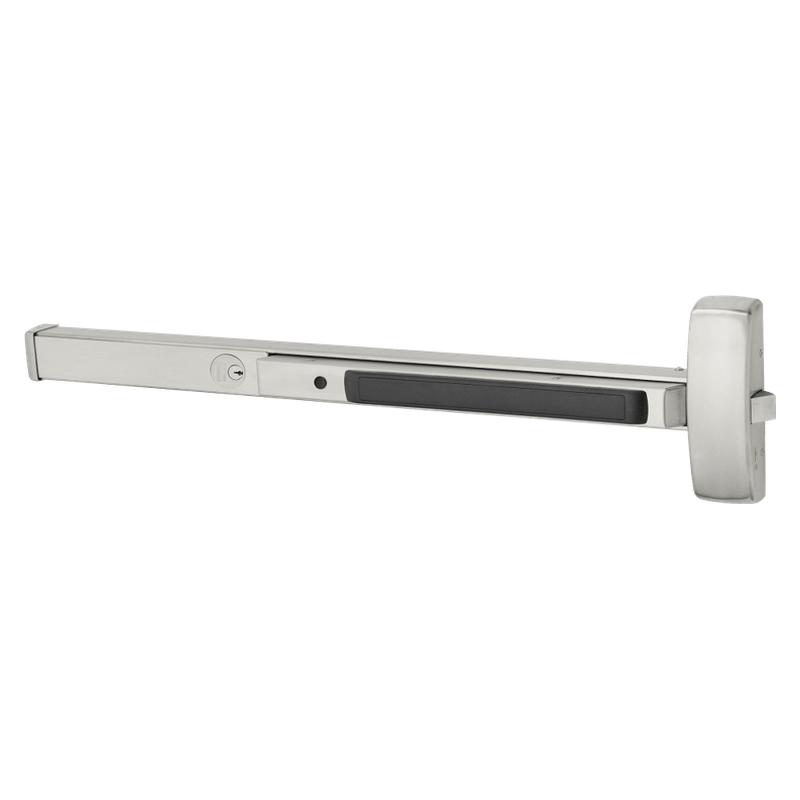

Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging

  • SKU: 16438810GUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,286.30/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 16-43-8810-G Rim Exit Device,...
Quantity
–
+
From $1,220.82
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 16-43-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, 43-48 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

The Sargent 16-43-8810-G is a Grade 1 rim exit device engineered for heavy-duty commercial applications on doors measuring 43 to 48 inches wide. Designed as an exit-only (less trim) device, it delivers reliable panic hardware performance with a clean flush end cap that gives the door a streamlined, finished appearance. Cylinder dogging allows the latch to be held retracted for push/pull operation during high-traffic periods, while the field-reversible design simplifies installation on both left and right hand doors. Built to meet demanding code requirements, this multi-function device offers durable, dependable egress for schools, offices, healthcare facilities, and other commercial settings.

Features

  • Grade 1 rim exit device rated for heavy-duty commercial use.
  • Exit-only configuration with no outside trim for secure egress.
  • Flush end cap provides a smooth, low-profile finished look.
  • Sized for doors ranging from 43 to 48 inches in width.
  • Cylinder dogging holds the latch retracted for free push/pull operation.
  • Field reversible to suit left or right hand door applications.

Functional Details

Cylinder dogging uses a keyed cylinder to mechanically hold the push bar depressed and the latch retracted, allowing the door to function as a push/pull during periods of free access. Turning the key releases the dogging and restores normal latching operation.

Manufacturer Sargent
SKU 16-43-8810-G
Product Type Rim Exit Device
Function Multi-Function, Exit Only, Less Trim
Grade Grade 1
End Cap Flush End Cap
Dogging Cylinder Dogging
Handing Field Reversible
Origin USA
Unit of Measure Each
Device Type Rim Exit Device
Door Width Range 43 - 48 inches
Mounting Surface Mounted Rim
Dogging Type Cylinder Dogging
Trim Less Trim (Exit Only)
End Cap Style Flush
Reversibility Field Reversible
Series 8810 / 16 Series
ANSI Grade Grade 1
Application Heavy-Duty Commercial
