Sargent 16-43-8810-J Rim Exit Device, Multi-Function, Exit Only, Less Trim, Flush End Cap, 37-42 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

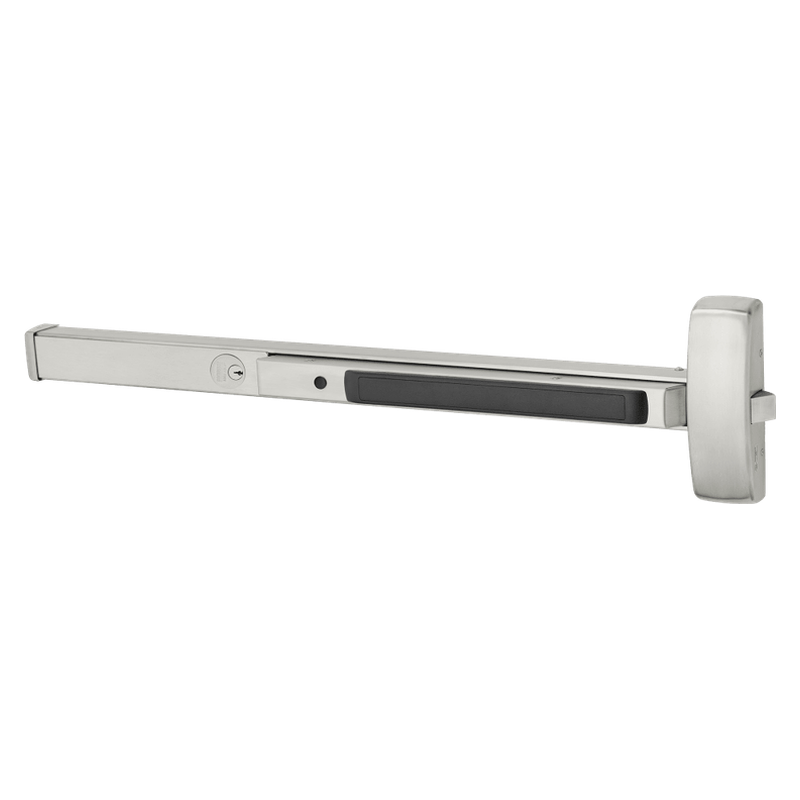

The Sargent 16-43-8810-J Rim Exit Device delivers dependable Grade 1 performance for high-traffic commercial openings measuring 37 to 42 inches wide. Built as an exit-only device with no outside trim, it mounts to the surface of the door and releases with a simple push of the touchpad. The low-profile flush end cap provides a clean, finished appearance while cylinder dogging lets authorized users hold the latch retracted for push/pull operation during peak hours. Field reversible and designed for durability, this rim exit device is a reliable choice for exterior and interior applications where security and smooth egress are priorities.

Features

  • Grade 1 rim exit device engineered for demanding commercial use.
  • Exit-only configuration with no outside trim for secure one-way egress.
  • Sized for doors 37 to 42 inches wide.
  • Flush end cap offers a sleek, low-profile look.
  • Cylinder dogging allows the latch to be held retracted for free passage.
  • Field reversible to suit left or right-hand door applications.
  • Surface-mounted rim design for straightforward installation.

Functional Details

The cylinder dogging function uses a keyed cylinder to mechanically retract and hold the latchbolt, converting the door to push/pull operation during business hours without electrified hardware. This provides convenient, controlled free access while maintaining a secured state when the device is undogged.

Manufacturer Sargent
SKU 16-43-8810-J
Grade Grade 1
Device Type Rim Exit Device
Function Exit Only, Less Trim
Dogging Type Cylinder Dogging
End Cap Flush End Cap
Handing Field Reversible
Origin USA
Unit of Measure Each
Limited Warranty Yes
Door Width Range 37 to 42 inches
Mounting Surface mounted (rim)
Latchbolt Type Deadlocking latchbolt
Dogging Mechanism Keyed cylinder
Series 8800 Series
Trim Less trim (exit only)
End Cap Profile Flush
Reversibility Field reversible
Application Interior and exterior doors
Grade Rating ANSI/BHMA Grade 1
