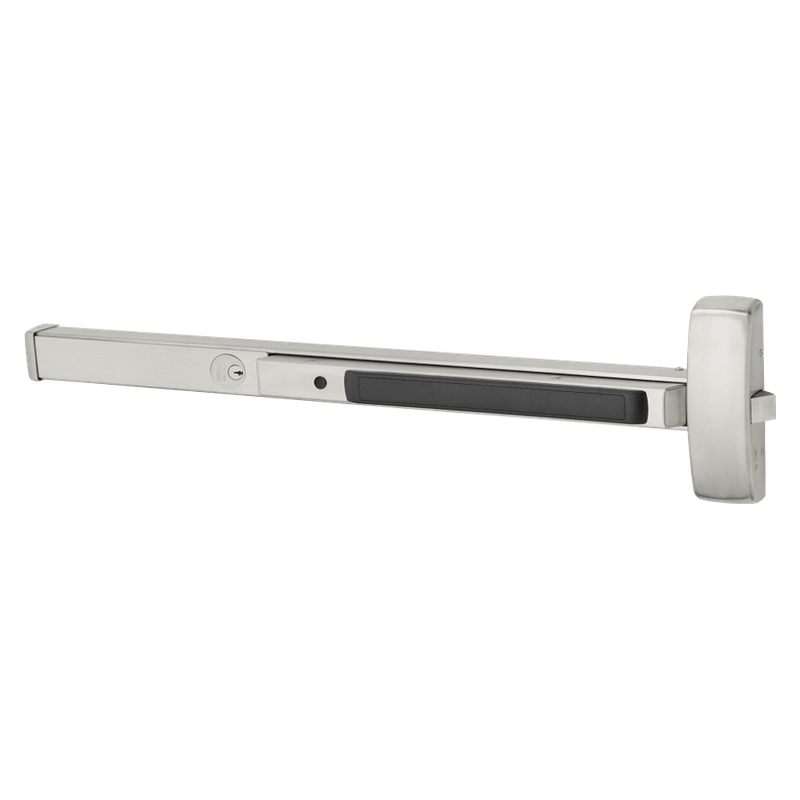

Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging

  • SKU: 16438888FUS32DKD
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US32D-630 Satin Stainless Steel
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10B-613 Oil Rubbed Bronze
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 33-36 Inch Width Door, Cylinder Dogging

  • SKU: 16438888FUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,286.30/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 16-43-8888-F Rim Exit Device,...
Quantity
–
+
From $1,220.82
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 16-43-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, 33-36 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

The Sargent 16-43-8888-F is a Grade 1 rim exit device engineered for dependable performance on commercial openings measuring 33 to 36 inches wide. Designed for exit-only applications, this device ships less trim and features a sleek flush end cap for a clean, low-profile finish on the door edge. Cylinder dogging allows the latch to be held retracted for push/pull operation during high-traffic periods, and the field-reversible design simplifies installation on both left- and right-hand doors. Built to Sargent's exacting standards, the 8888 series delivers smooth, reliable egress in schools, offices, healthcare facilities, and other demanding environments where code-compliant security matters.

Features

  • Grade 1 rim exit device rated for heavy commercial and institutional use.
  • Fits door widths from 33 to 36 inches.
  • Flush end cap provides a clean, streamlined appearance on the door edge.
  • Exit-only configuration with no outside trim for secure one-way egress.
  • Cylinder dogging holds the latch retracted for convenient push/pull access.
  • Field-reversible for installation on left- or right-hand doors.

Functional Details

Cylinder dogging uses a keyed cylinder to mechanically retract and hold the latchbolt, allowing the door to function as a push/pull during scheduled open periods and re-secure when dogging is released.

  • Multi-function rim exit device for exit only applications.
  • Cylinder dogging to hold the pushbar and latch in the retracted position.
  • Field reversible to accommodate left and right hand doors.
Manufacturer Sargent
SKU 16-43-8888-F
Device Type Rim Exit Device
Grade Grade 1
Function Multi-Function, Exit Only (Less Trim)
Dogging Type Cylinder Dogging
End Cap Flush End Cap
Handing Field Reversible
Origin USA
Unit of Measure Each
Limited Warranty Yes
Door Width Range 33 - 36 inches
Series 8888
Mounting Rim Mount
ANSI/BHMA Grade Grade 1
Latchbolt Type Deadlatching Pullman
Dogging Mechanism Cylinder
Trim Configuration Less Trim / Exit Only
Reversibility Field Reversible
End Cap Style Flush
Application Commercial / Institutional
Product Cut Sheet

Panic Handing Chart
