All Sargent Products

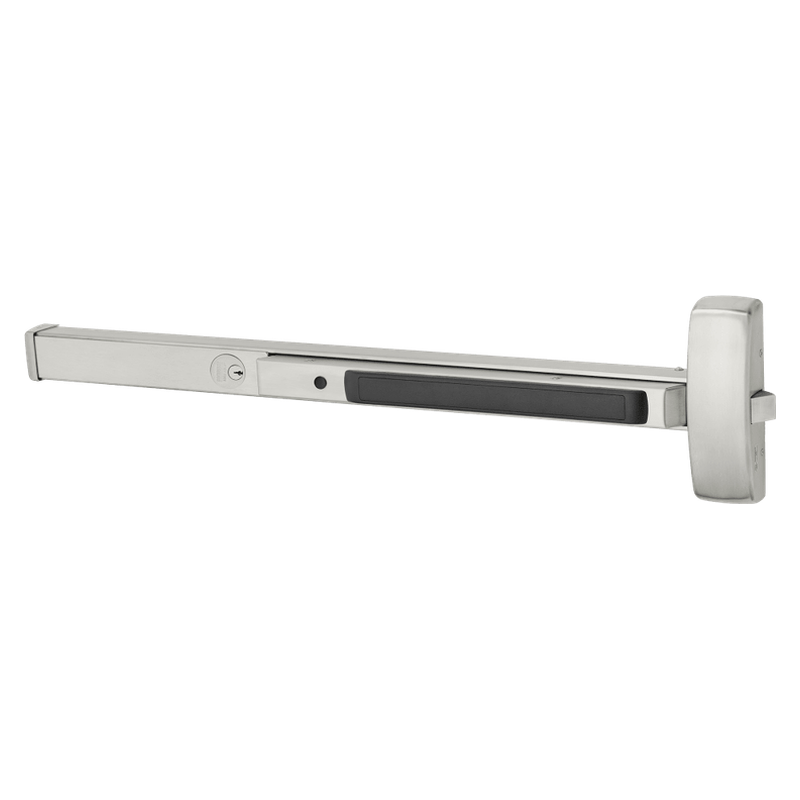

Sargent 16-43-8888-G Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, For 43-48 Inch Width Door, Cylinder Dogging

  • SKU: 16438888GUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,286.30/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 16-43-8888-G Rim Exit Device,...
Quantity
–
+
From $1,220.82
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 16-43-8888-G Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, 43-48 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

The Sargent 16-43-8888-G is a Grade 1 rim exit device engineered for heavy-duty commercial openings measuring 43 to 48 inches in width. Designed for exit-only applications, it ships less trim and features a clean flush end cap for a streamlined appearance. The device includes cylinder dogging, allowing the latch to be held retracted with a key for push-pull operation during high-traffic periods. Field reversible for versatility, it adapts to both left- and right-hand doors without extra hardware. Built to meet ANSI standards, this device delivers dependable security and durable performance, making it a reliable choice for schools, offices, and other demanding entryways.

Features

  • Grade 1 rim exit device built for heavy-duty commercial use.
  • Sized to fit doors measuring 43 to 48 inches in width.
  • Exit-only configuration supplied less trim.
  • Flush end cap provides a clean, low-profile finished look.
  • Cylinder dogging holds the latch retracted for push-pull operation.
  • Field reversible to suit left- or right-hand door applications.
  • Multi-function design for flexible installation requirements.

Functional Details

The cylinder dogging function uses a keyed cylinder to mechanically retract and hold the latchbolt, converting the door to push-pull operation and eliminating latching during periods of high traffic. Turning the key releases the dogging and restores normal latching operation.

Manufacturer Sargent
SKU 16-43-8888-G
Grade Grade 1
Device Type Rim Exit Device
Function Multi-Function, Less Trim Exit Only
Dogging Cylinder Dogging
End Cap Flush End Cap
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
Limited Warranty Yes
Door Width Range 43 to 48 inches
Device Series 8888 Series
Mounting Type Rim
Latchbolt Pullman-type deadlatching
Dogging Type Cylinder (key)
Trim Configuration Less Trim (Exit Only)
End Cap Style Flush
Reversibility Field Reversible
Grade Rating ANSI/BHMA Grade 1
Application Commercial Exit Doors
Product Cut Sheet

Panic Handing Chart
