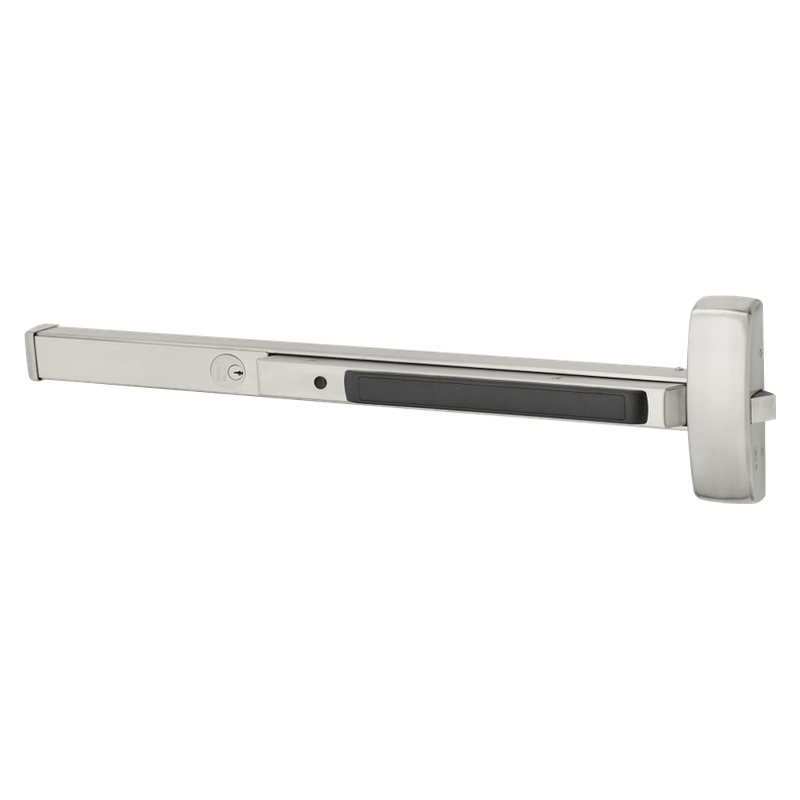

Sargent 16-43-8888-J Rim Exit Device, Multi-Function, Less Trim Exit Only, Flush End Cap, 37-42 Inch Door, Cylinder Dogging, Grade 1, Field Reversible

The Sargent 16-43-8888-J is a Grade 1 rim exit device engineered for heavy-duty commercial openings, covering door widths from 37 to 42 inches. Configured for exit-only operation with no outside trim, it features a clean flush end cap design and multi-function capability that adapts to a variety of installation needs. Cylinder dogging allows the latch to be held retracted for push/pull traffic during peak hours, while the field-reversible design simplifies handing in the field. Built to withstand demanding environments, this device delivers reliable performance for schools, offices, healthcare facilities, and other high-traffic buildings where durability and life safety are priorities.

Features

  • Grade 1 rim exit device rated for high-traffic commercial use.
  • Fits door widths from 37 to 42 inches.
  • Multi-function design suits a wide range of door applications.
  • Exit-only configuration with no outside trim required.
  • Flush end cap provides a clean, low-profile finished look.
  • Cylinder dogging holds the latch retracted for free passage.
  • Field reversible for simplified handing during installation.

Functional Details

Cylinder dogging uses a key cylinder to mechanically hold the push bar in the depressed position, retracting the latch so the door can be pushed or pulled freely without actuating the device. This is ideal for managing scheduled high-traffic periods, and the latch is quickly restored to normal operation by releasing the dogging with the cylinder.

Manufacturer Sargent
SKU 16-43-8888-J
Device Type Rim Exit Device
Function Exit Only, Less Trim
Grade Grade 1
End Cap Flush End Cap
Dogging Type Cylinder Dogging
Handing Field Reversible
Origin USA
Unit of Measure Each
Device Series 80 Series
Minimum Door Width 37 in
Maximum Door Width 42 in
Mounting Rim Mounted
Latch Type Pullman Latch
Configuration Multi-Function
Trim Less Trim (Exit Only)
Dogging Mechanism Cylinder
Reversibility Field Reversible
End Cap Style Flush
