Sargent 268-CSPS Overhead Concealed Door Closer Security Pack features a concealed track arm and includes a switch, designed specifically for doors with a thickness of 1 3/4 inches.

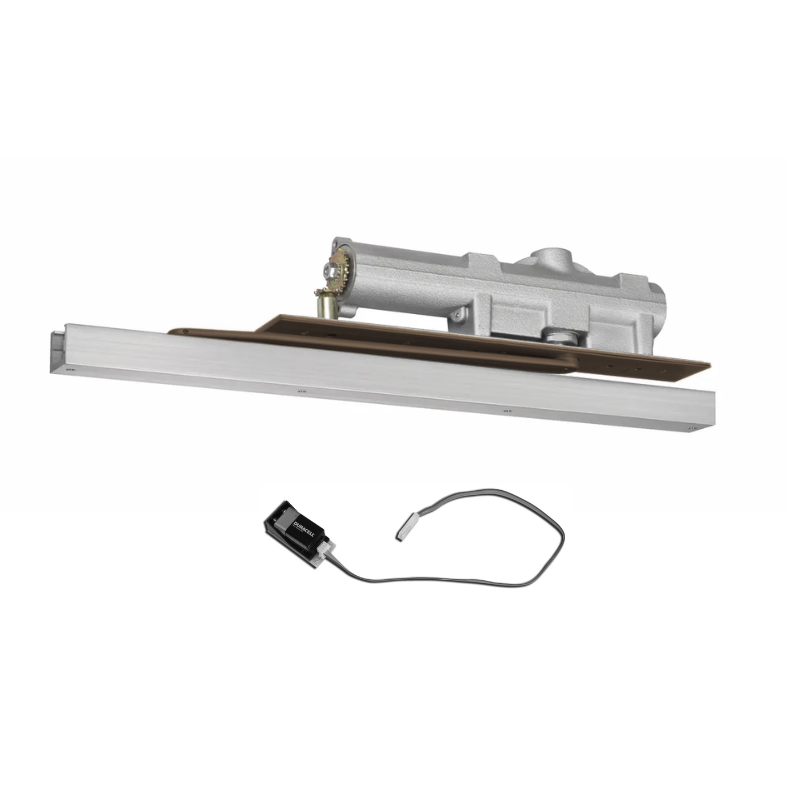

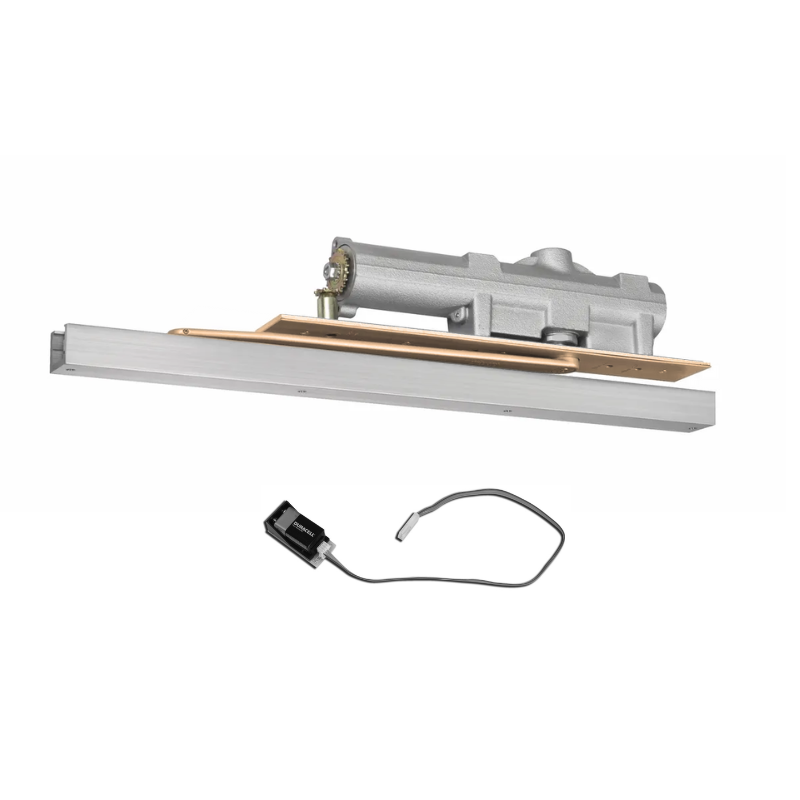

The Sargent 268-CSPD is an overhead concealed door closer designed for doors 1 3/4 inches thick. This security pack features a double switch and a concealed track arm, ensuring reliable and discreet door control.

CSPS - Closer Security Pack with Switch

• Includes security track that automatically ejects foreign material

• Heavy duty steel cover plate protects adjusting valves from possible tampering

• Tamper resistant security screws provided for track and closer cover plate

• Requires different templating from standard 268 or 269
• With a field adjustable single pole double throw Door Position Switch to interface with security and alarm systems

• Contacts are rated at 120/250VAC, 10.1 amp resistive load

• Switch equipped with a 3 wire color coded 12" 18 gauge wire harness

• Switch contact point can be adjusted without removing closer from frame

268 Series Concealed Closers

The 268 Series Overhead Concealed Door Closer features a fully hidden arm, track, and closer when the door is shut, delivering superior resistance to wear and damage. Its discreet design combines durability with a refined appearance, making it well-suited for demanding interior environments and upscale architectural settings.

• 1-1/2" diameter piston for superior door control
• Captured valves provide easy door control while preventing accidental valve removable
• All weather fluid allows closer to operator properly in extreme cold or hot environments without readjustment
• Concealed in-frame design inhibits possible tampering
• Pressure relief valves allow closer to absorb abusive forces, preventing damage to doors and frames
• Provides security and aesthetics by completely hiding the door closer, frame and arm in the door and frame
