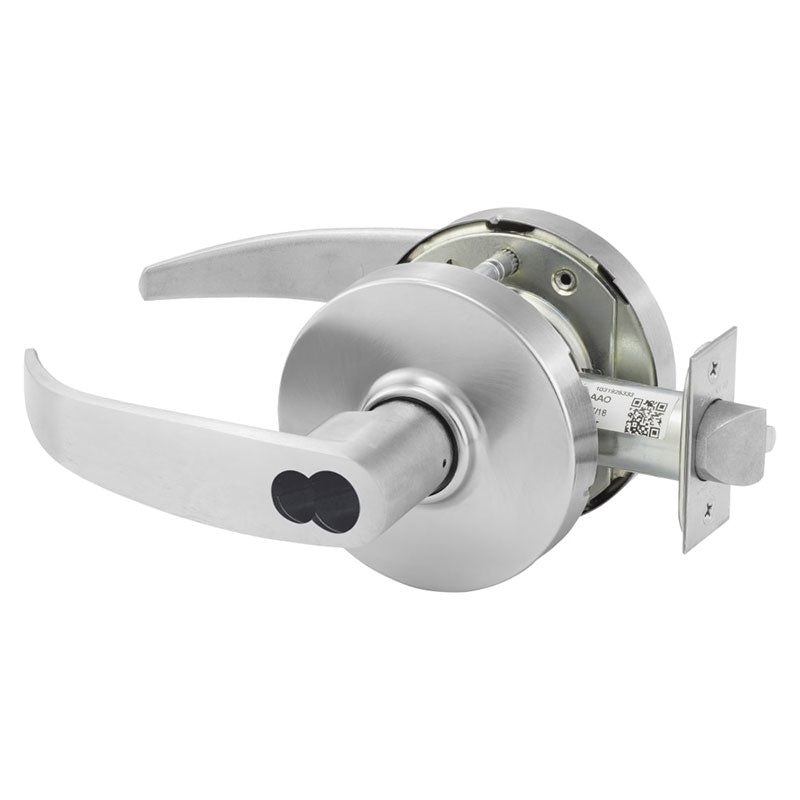

Sargent 28-60-7G05-LP Entrance or Office Cylindrical Lever Lockset, LFIC Less Core, L Rose, P Lever, Grade 2

SKU: 28607G05LPUS26D

All SARGENT Products

Sargent 28-60-7G05-LP Entrance or Office Cylindrical Lever Lockset, LFIC Less Core, L Rose, P Lever, Grade 2

SKU: 28607G05LPUS26D

$251.08/ea

Available (1‑2 Weeks)

1-2 Weeks Lead Time

Choose your options

Finish: US26D Satin Chrome (626)

Variant

Quantity:

Qty

Buy Complete Door Hardware Set

Sargent 28-60-7G05-LP Entrance or Off...

Quantity

–

+

From $251.08

Total

Description
Product Specs
Technical Specs
Document Center

Description

The Sargent 28-60-7G05-LP is a Entrance or Office function, grade 2 cylindrical lever lockset, has an L Rose, P Lever, and comes LFIC (Large Format Interchangeable Core) Prepped, Sold Less Core, with a 2 3/4" backset, a 4 7/8"strike and is available in a variety of finishes.

7-Line Bored Lever Locks

Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.

A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.

For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
Cylindrical Housing: Steel, zinc dichromate finish
Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
Latch: Brass 1/2" (13mm) throw
Keys: Two, nickel silver
Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
Door Prep: ANSI A115.2; Specify 20- for 160 Prep

Product Specs

Manufacturer	Sargent
SKU	2860-7G05 LP
Grade	Grade 2
Installation	Commercial
Origin	United States
Unit of Measure	Each
Base Material	Brass, Bronze
UL Listing Type	ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number	F86
BAA Qualified	Yes
Limited Warranty	5 Year Warranty
Fire Rated	3 Hours {A}
Burglar Rated	No

Technical Specs

Function	05 Entrance or Office
Function Family	Entrance/Office
ANSI Function	F109 - Entry/Office
Lever/Knob Design	P Lever
Rose/Escutcheon Design	3 3/8" Rose Diameter
Rose/Escutcheon Dimensions	3 3/8"
Cylinder Type	LFIC Disposable Construction Core
Handing	Non-handed
Door Thickness	1 3/4"
Std. Latch Number	193762
Std. Latch Type	Deadlatch
Std. Latch Backset Dim	2 3/4"
Latch Bore Diameter	7/8"
Lock Face Size	1 1/8 x 2 1/4"
Bolt Projection	1/2"
Bore Hole Diameter	2 1/8"
Std. Strike Number	808
Std. Strike Type	ANSI Curved Lip Strike
Std. Strike Height	4 7/8"
Std. Strike Width	11/4"
Dust Box	None
Screws	Wood/Machine Screws
Product Type	Cylindrical Lock
