Description

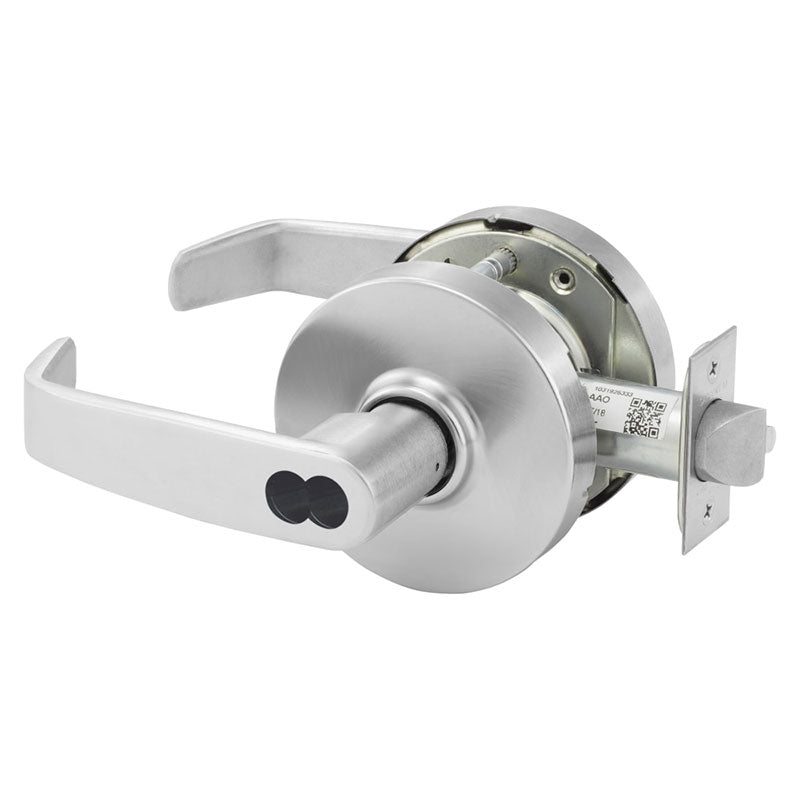

The Sargent 28-70-7G37-LL is a Classroom function, grade 2 cylindrical lever lockset, has an L Rose, L Lever, and comes SFIC (Small Format Interchangeable Core) Prepped, Sold Less Core, with a 2 3/4" backset, a 4 7/8"strike and is available in a variety of finishes.
7-Line Bored Lever Locks
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
- For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
- Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
- Cylindrical Housing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
- Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
- Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
- Latch: Brass 1/2" (13mm) throw
- Keys: Two, nickel silver
- Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
- Door Prep: ANSI A115.2; Specify 20- for 160 Prep
Product Specs
| Manufacturer | Sargent |
| SKU | 2870-7G37 LL |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F86 |
| BAA Qualified | Yes |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specs
| Function | 37 Classroom |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | L Lever |
| Rose/Escutcheon Design |
3 3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3 3/8" |
| Cylinder Type |
SFIC Disposable Construction Core |
| Handing | Non-handed |
| Door Thickness | 1 3/4" |
| Std. Latch Number | 193762 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2 3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1 1/8 x 2 1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2 1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4 7/8" |
| Std. Strike Width | 11/4" |
| Dust Box | None |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
